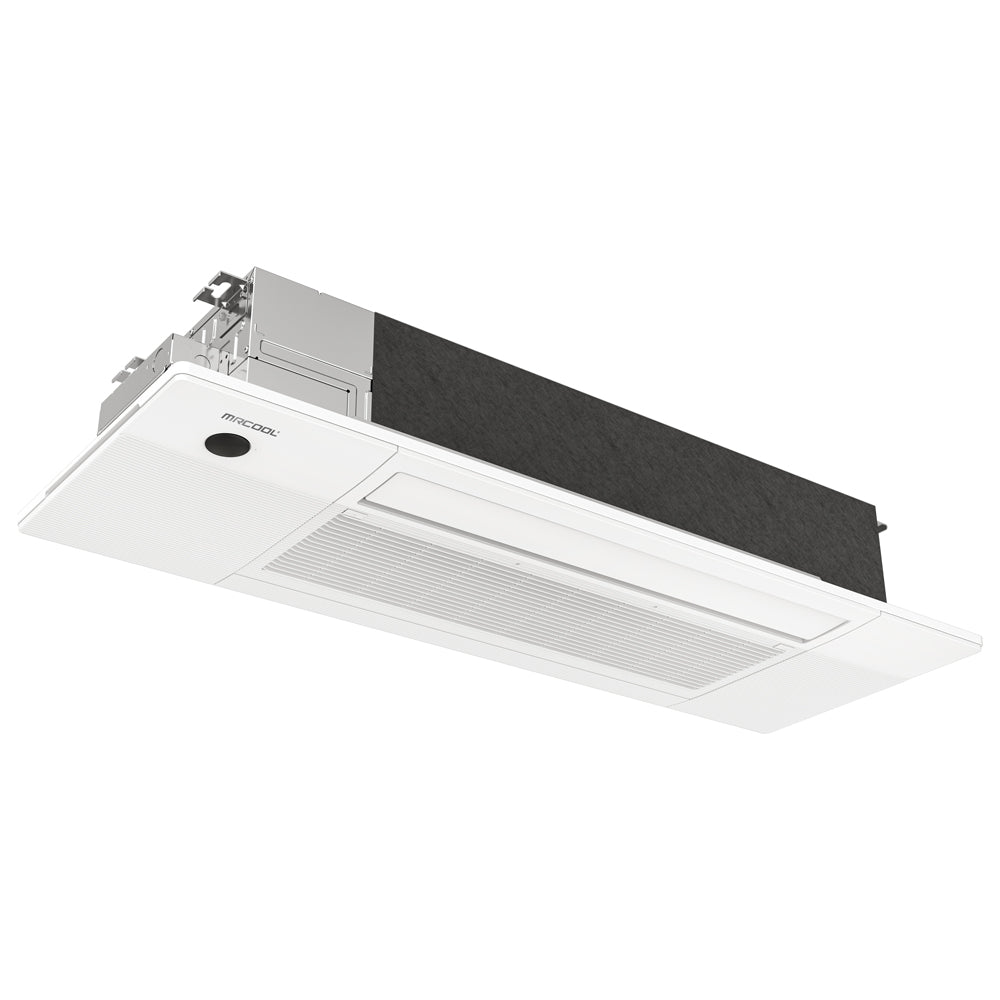

MRCOOL® DIY® Series OuttaSight™ 9k BTU Ceiling Cassette
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Crafted for Calm
- MRCOOL
MRCOOL® DIY® Series OuttaSight™ 9k BTU Ceiling Cassette
$1,177.00
- Safe & Secure Checkout
- Warranty 7-Year Compressor / 5-Year Parts View Full Warranty Details
SKU: DIYCASSETTE09HP-230C25
Barcode: 00840255522199

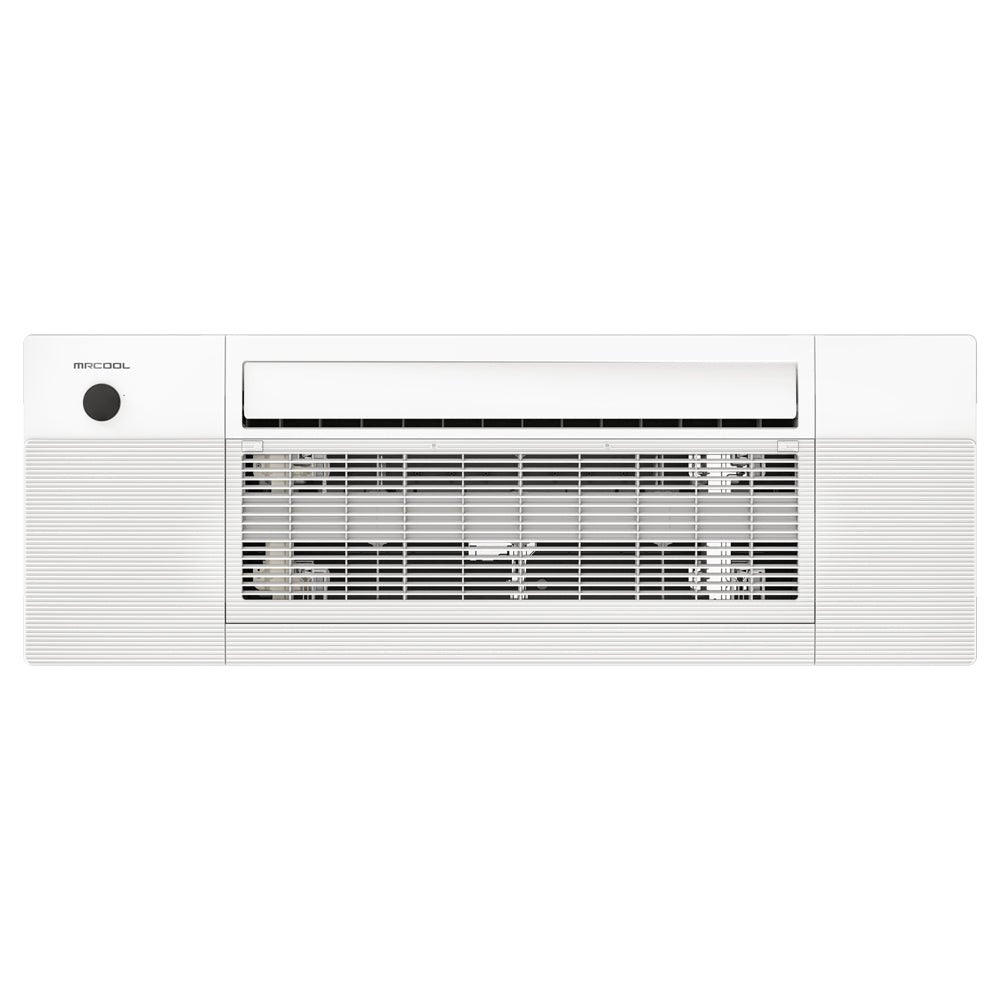

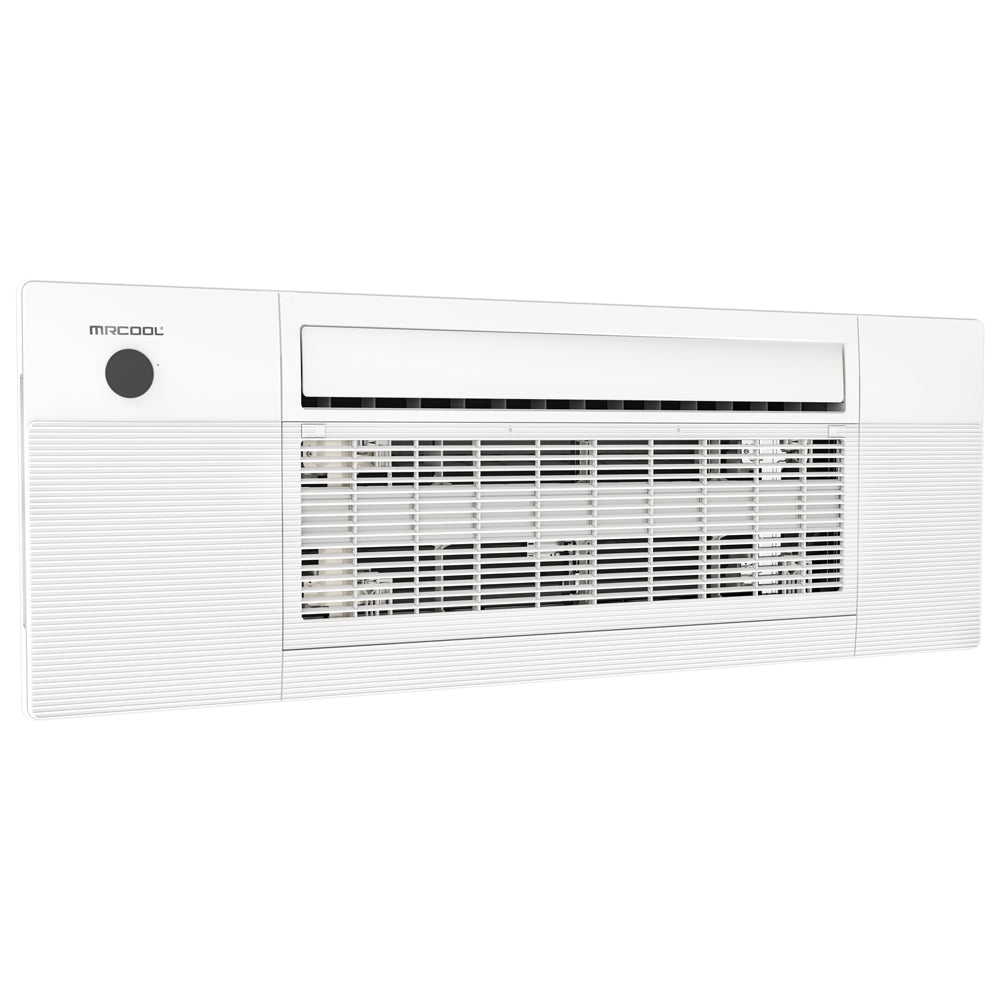

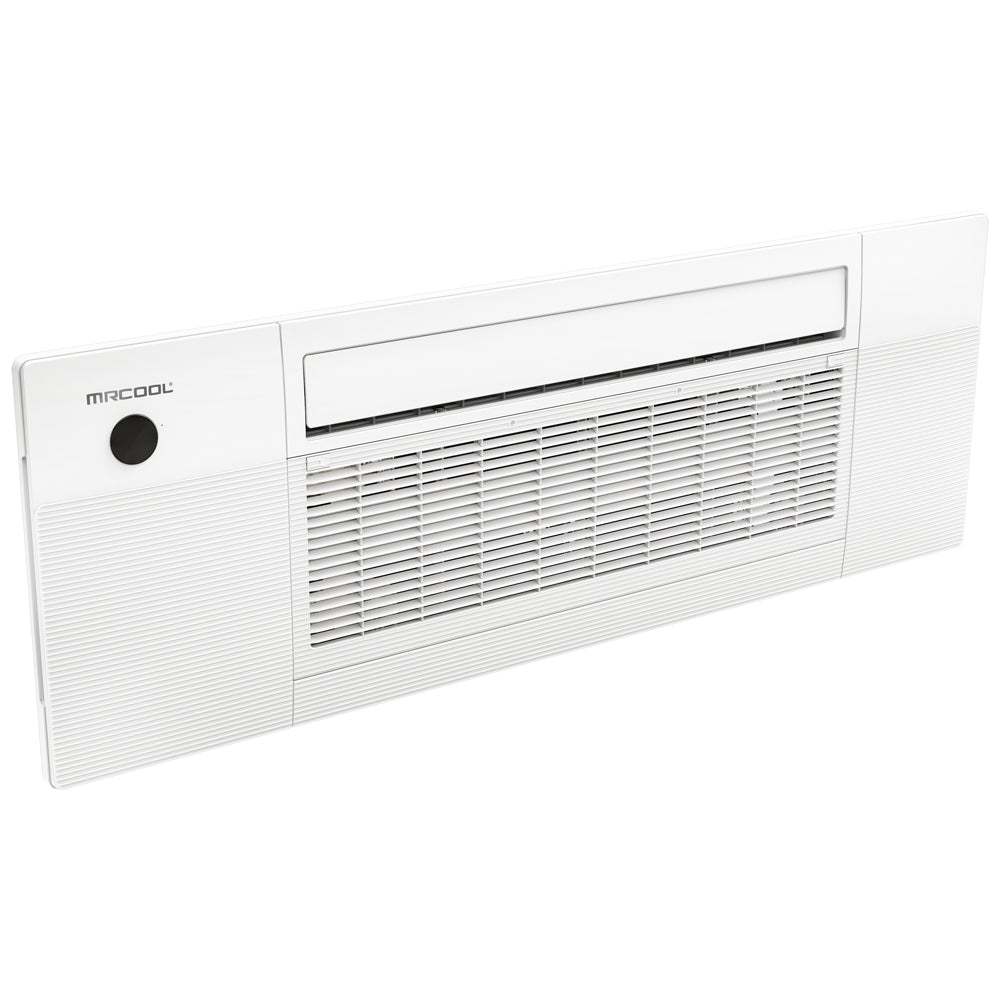

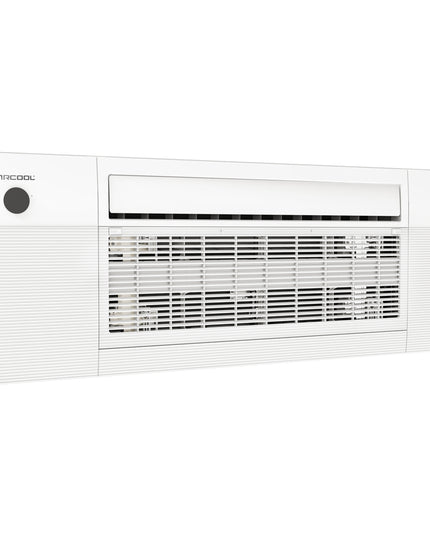

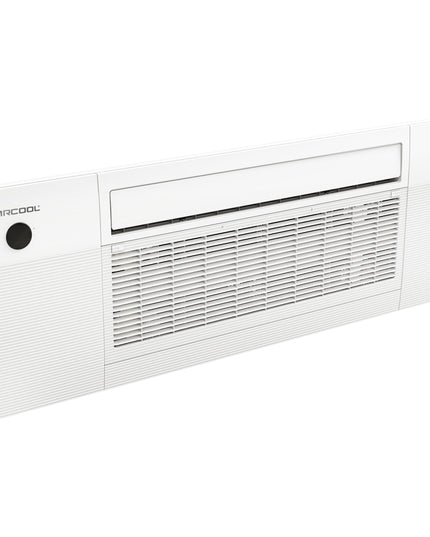

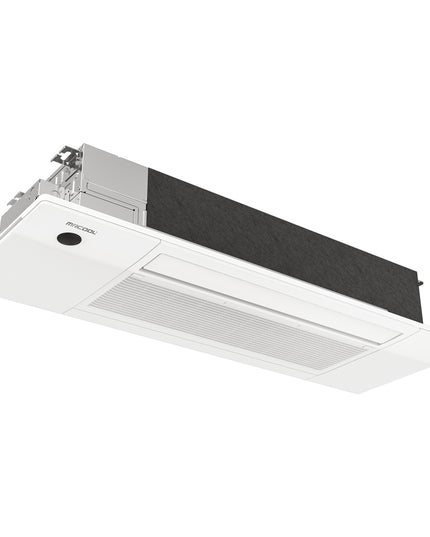

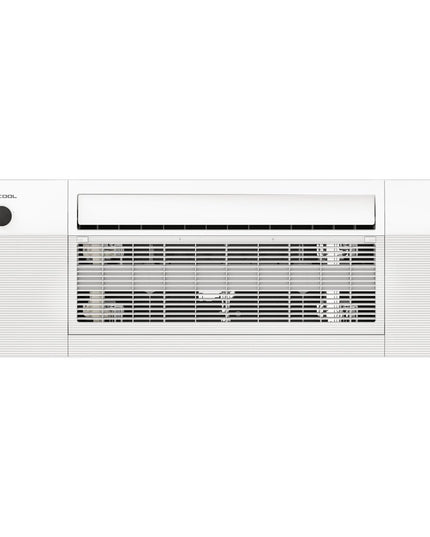

MRCOOL® DIY® Series OuttaSight™ 9K BTU Ceiling Cassette – Discreet & Efficient Comfort

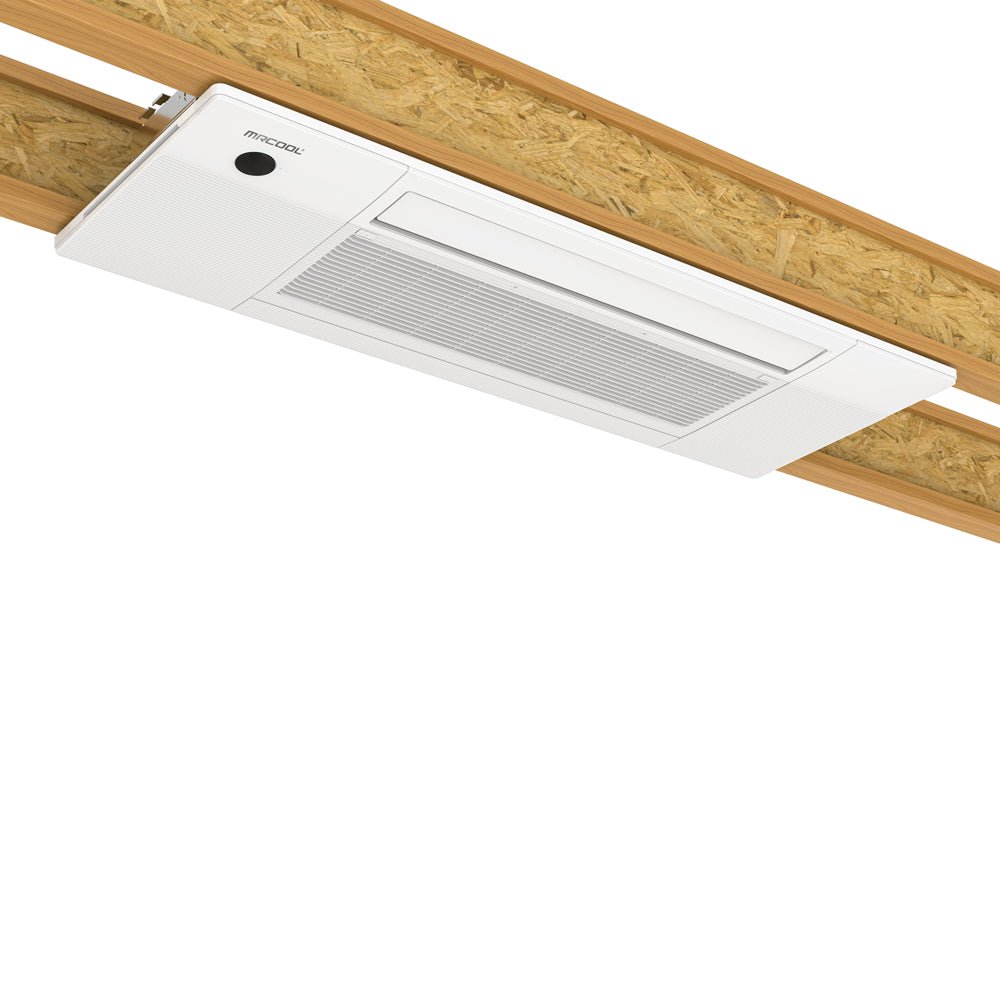

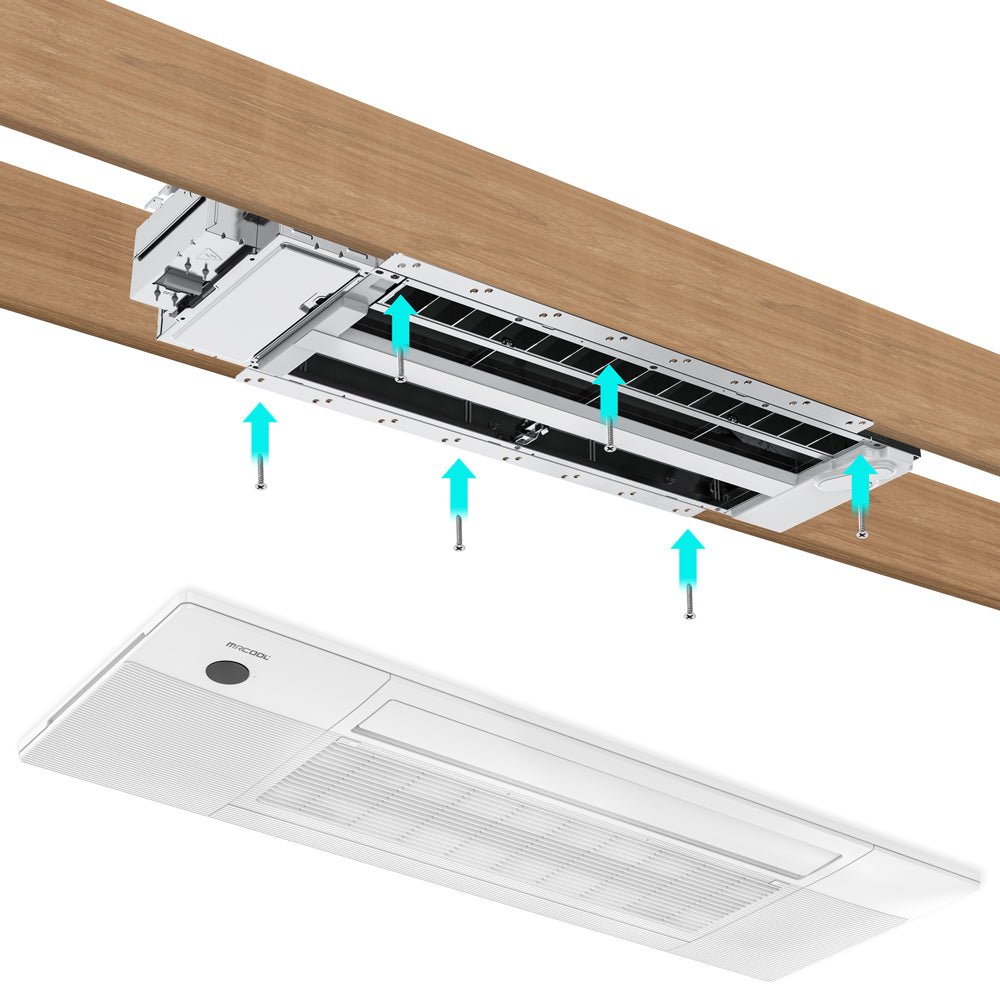

The MRCOOL® DIY® Series OuttaSight™ 9K BTU Ceiling Cassette is a cutting-edge solution for homeowners seeking powerful, out-of-sight heating and cooling. Designed for multi-zone configurations, this sleek cassette easily fits between 16” ceiling joists, making it a perfect addition to new constructions or retrofit projects. Unlike traditional ceiling cassettes that have strict installation limitations, the OuttaSight™ cassette is compatible with pre-manufactured I-joists and works with both current and future joist standards.
Innovative DIY Installation with Quick Connect® Technology

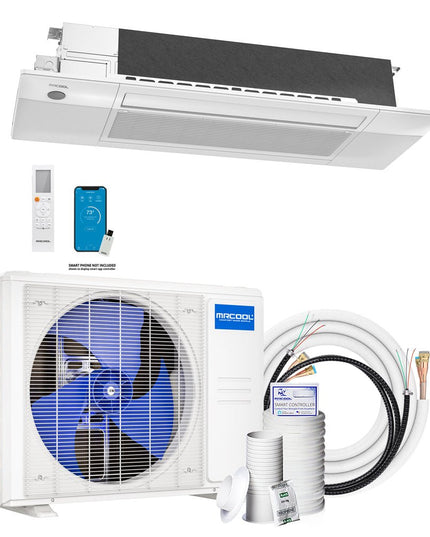

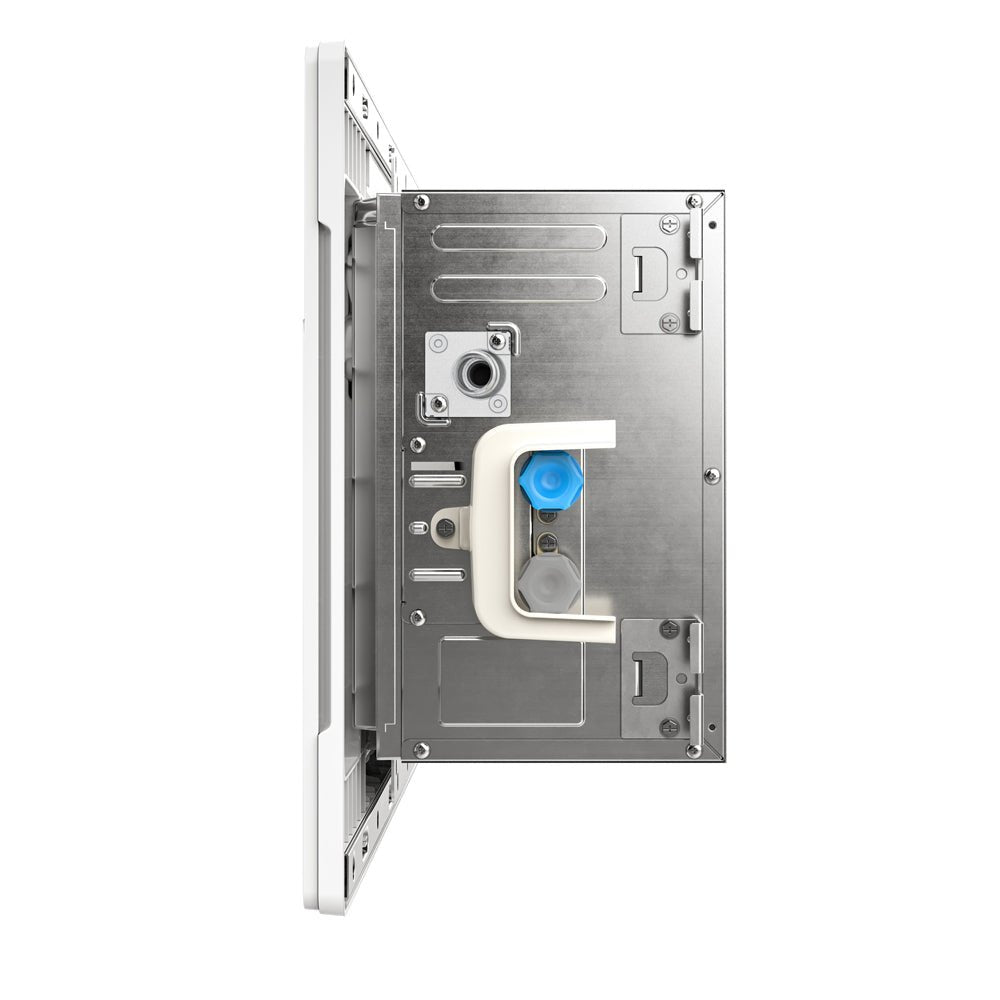

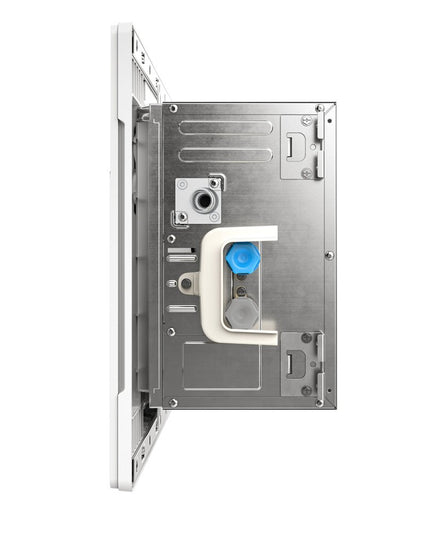

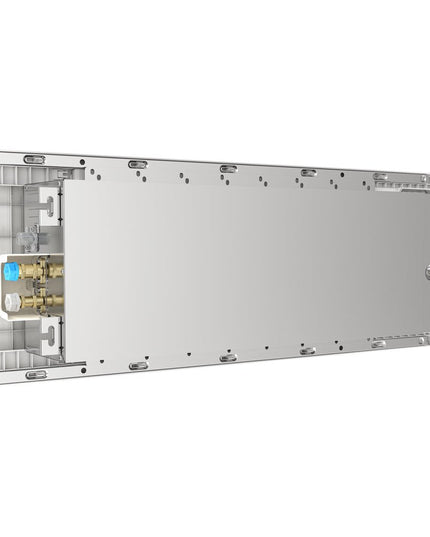

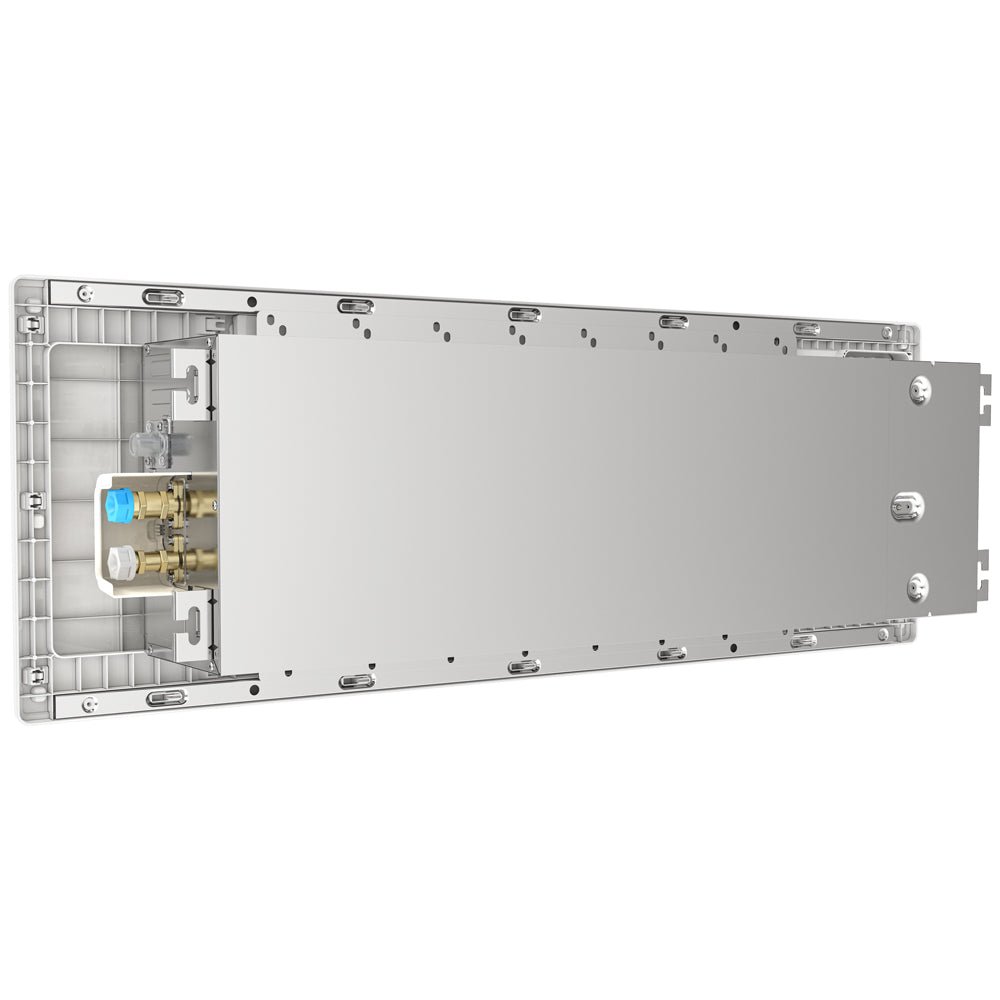

- As part of the MRCOOL® DIY® system, this ceiling cassette uses the patented DIY® Quick Connect® line set, which comes pre-charged with refrigerant, eliminating the need for vacuuming. With the No-Vac® Coupler, users can also extend the line set length effortlessly. This easy-install system removes the need for professional HVAC assistance, saving time and money.
Smart Features & Advanced Air Filtration
- Elevation function for effortless filter maintenance
- Whisper-quiet operation for minimal noise disruption
- Multiple operating modes: COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP

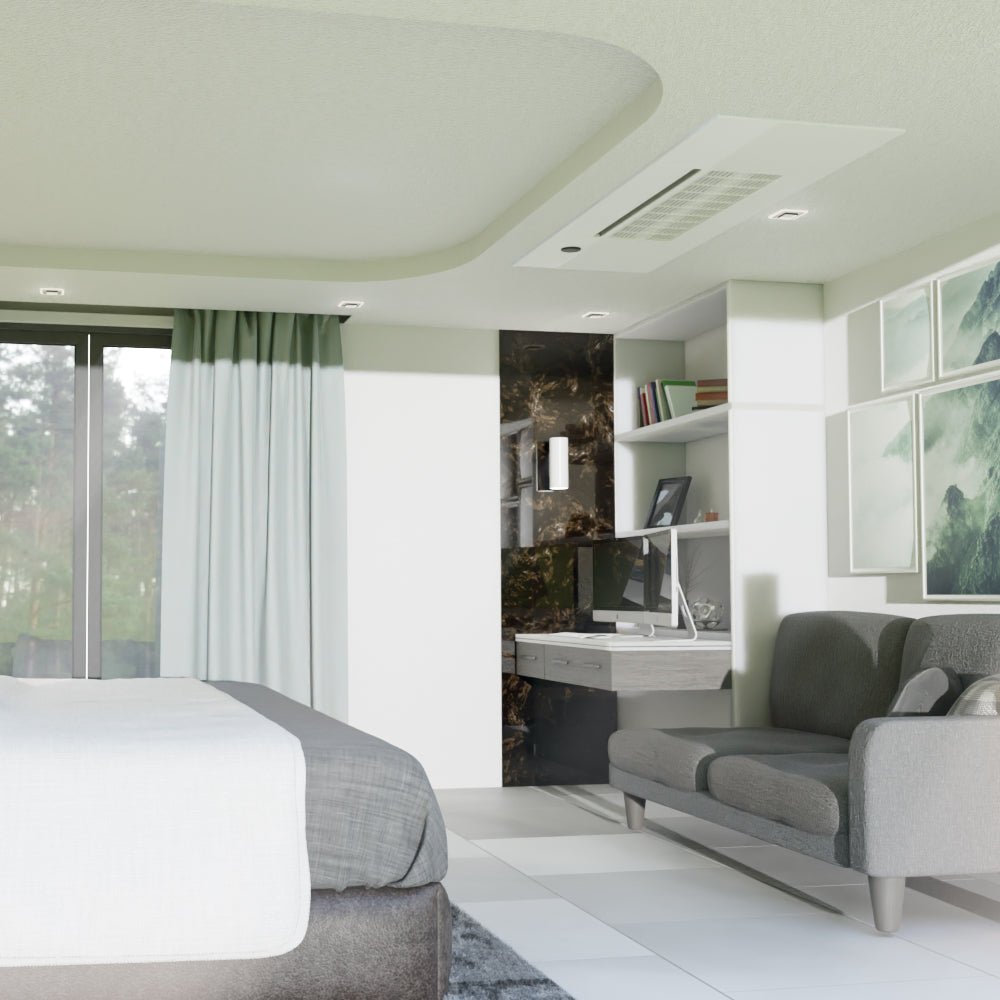

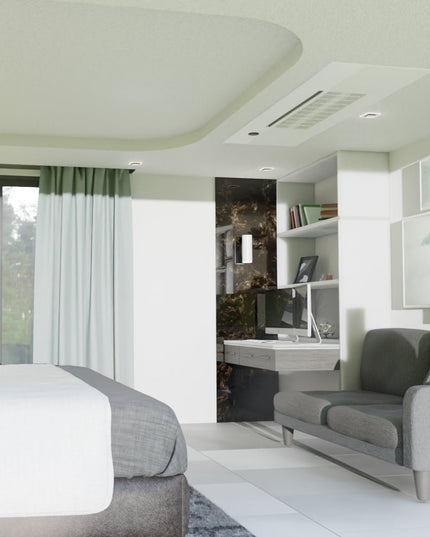

- No ductwork or wall space required, offering a clean, seamless look
Reliable Performance & Long-Term Protection
- Backed by MRCOOL’s industry-leading warranties, the OuttaSight™ 9K BTU Ceiling Cassette offers:
-
Limited lifetime warranty
-
7-year compressor warranty
- 5-year parts warranty
Upgrade Your Home with MRCOOL® DIY® OuttaSight™ Ceiling Cassette
Experience powerful, energy-efficient climate control without bulky wall units. Whether for a single room or multi-zone setup, the MRCOOL® DIY® OuttaSight™ 9K BTU Ceiling Cassette is a discreet, reliable, and user-friendly solution for modern comfort.
Key Features

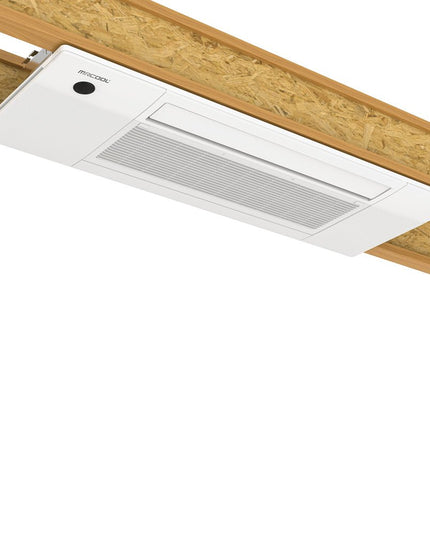

| Fits between 16" Ceiling Joists |

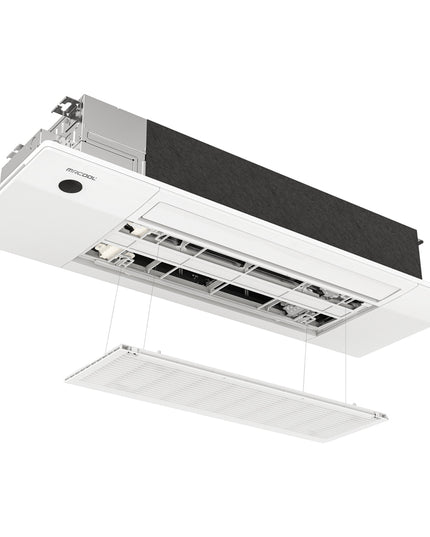

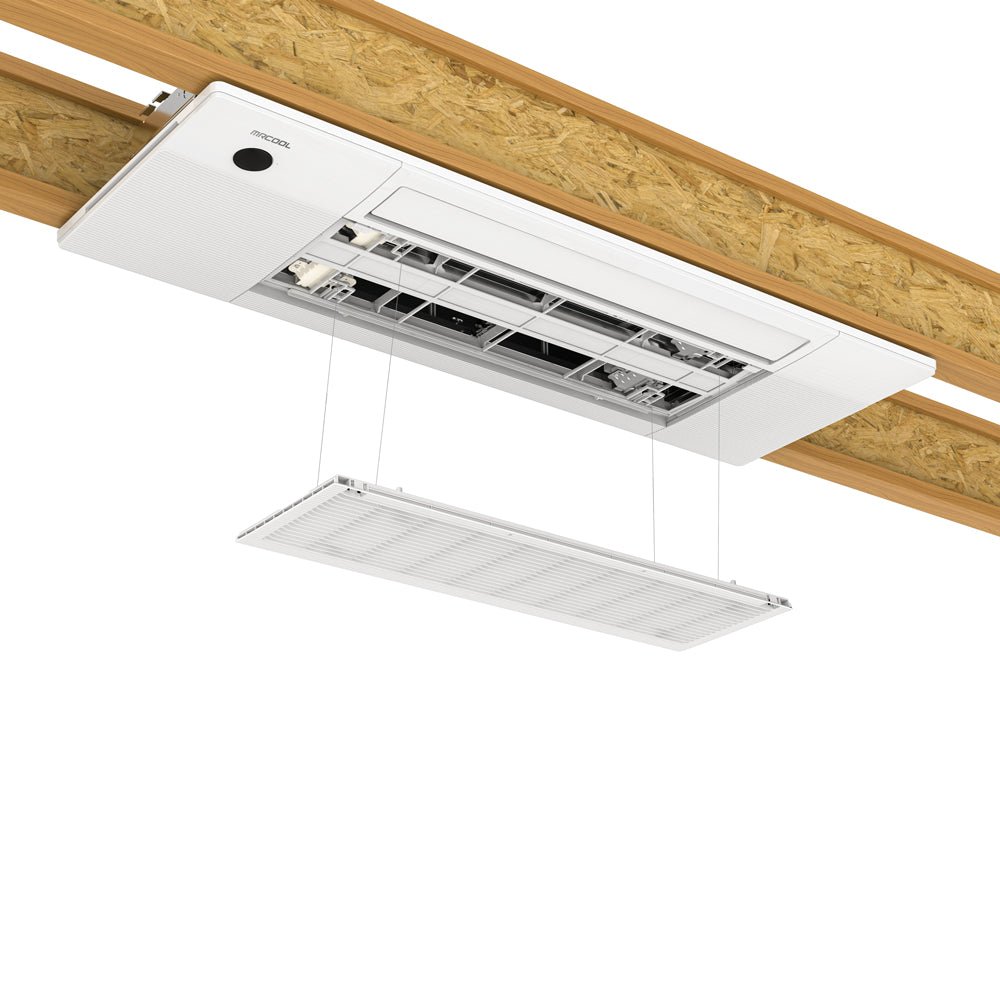

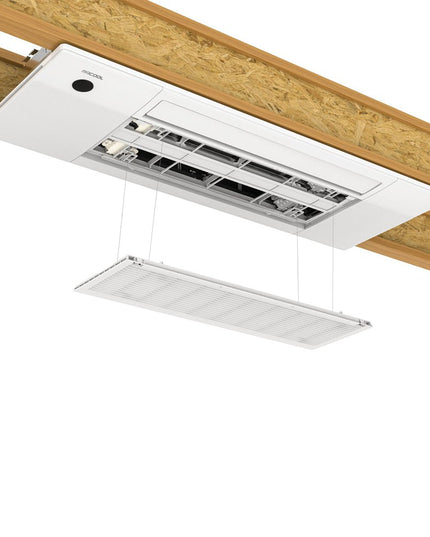

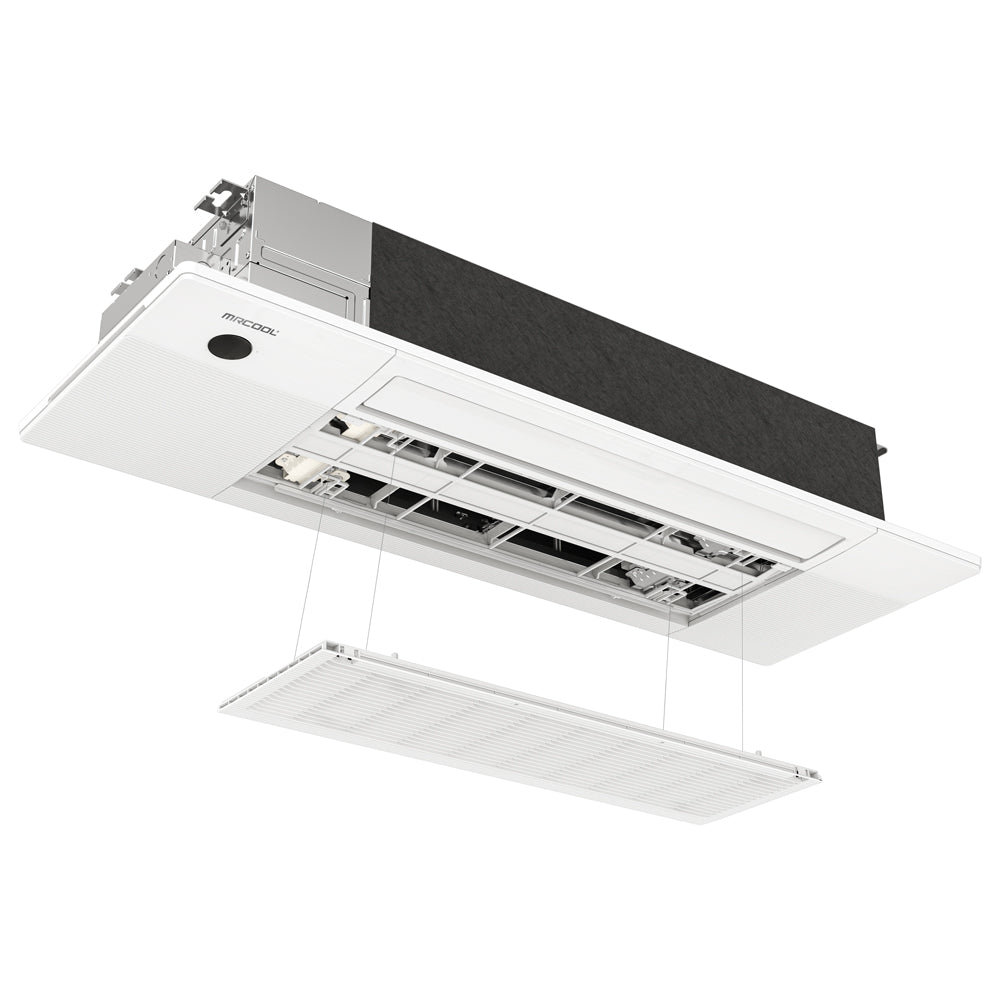

| Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette. |

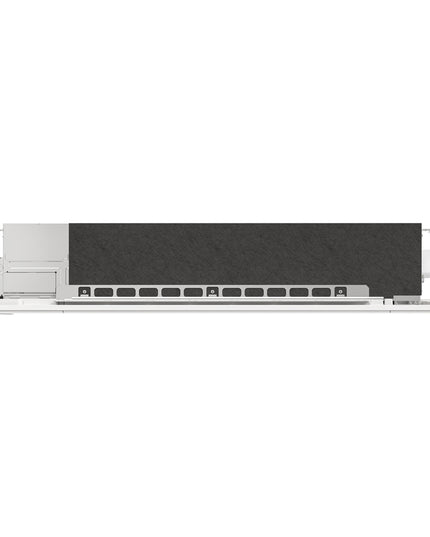

| Low Profile Installation |

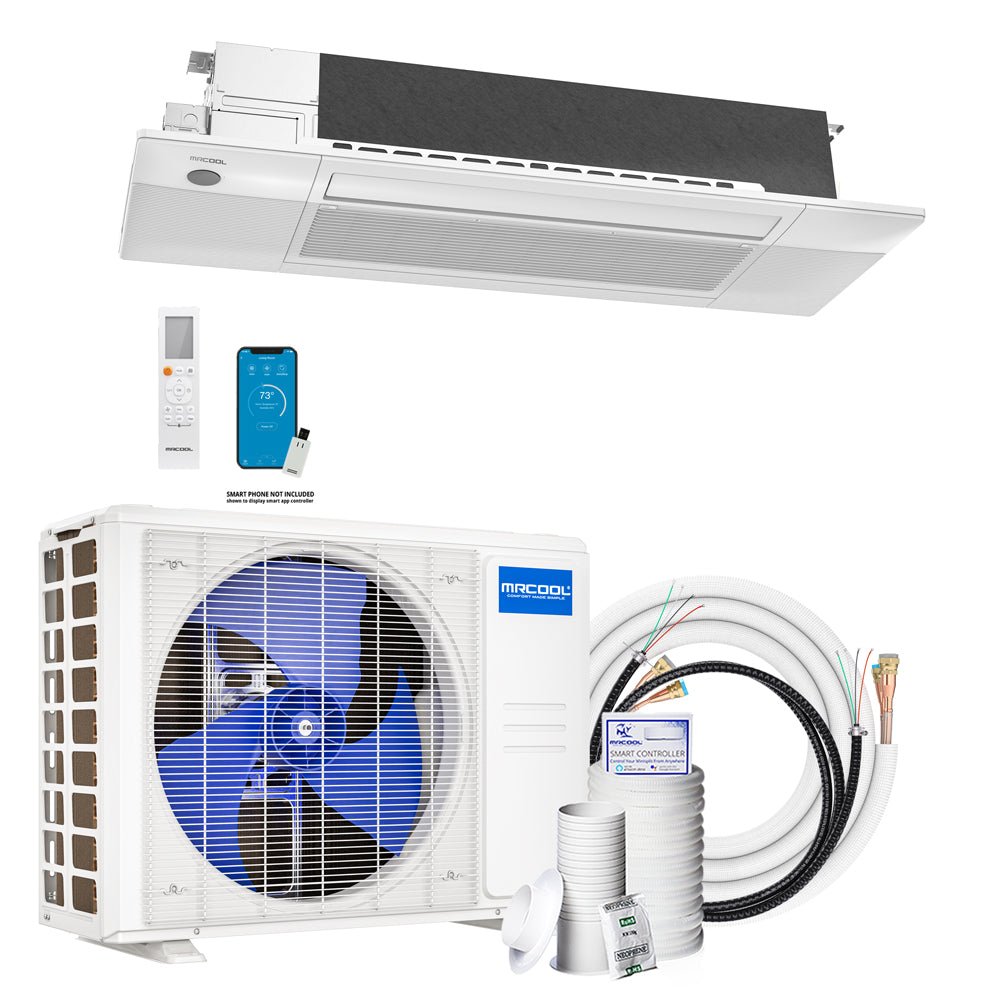

| Pair with your DIY 4th gen Multi-Zone system |

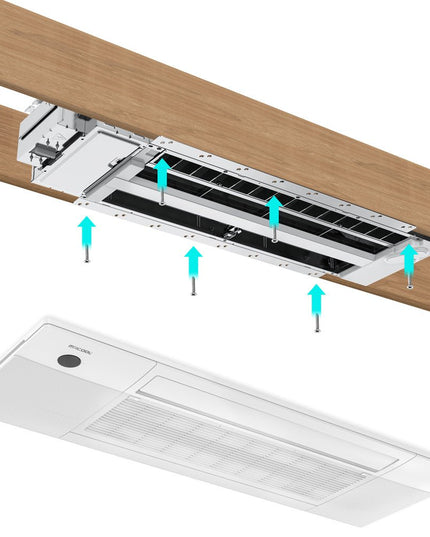

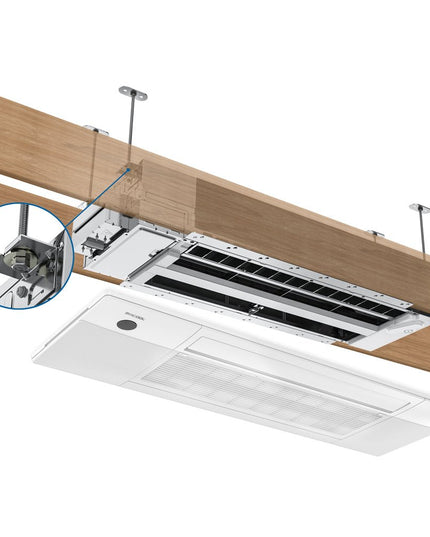

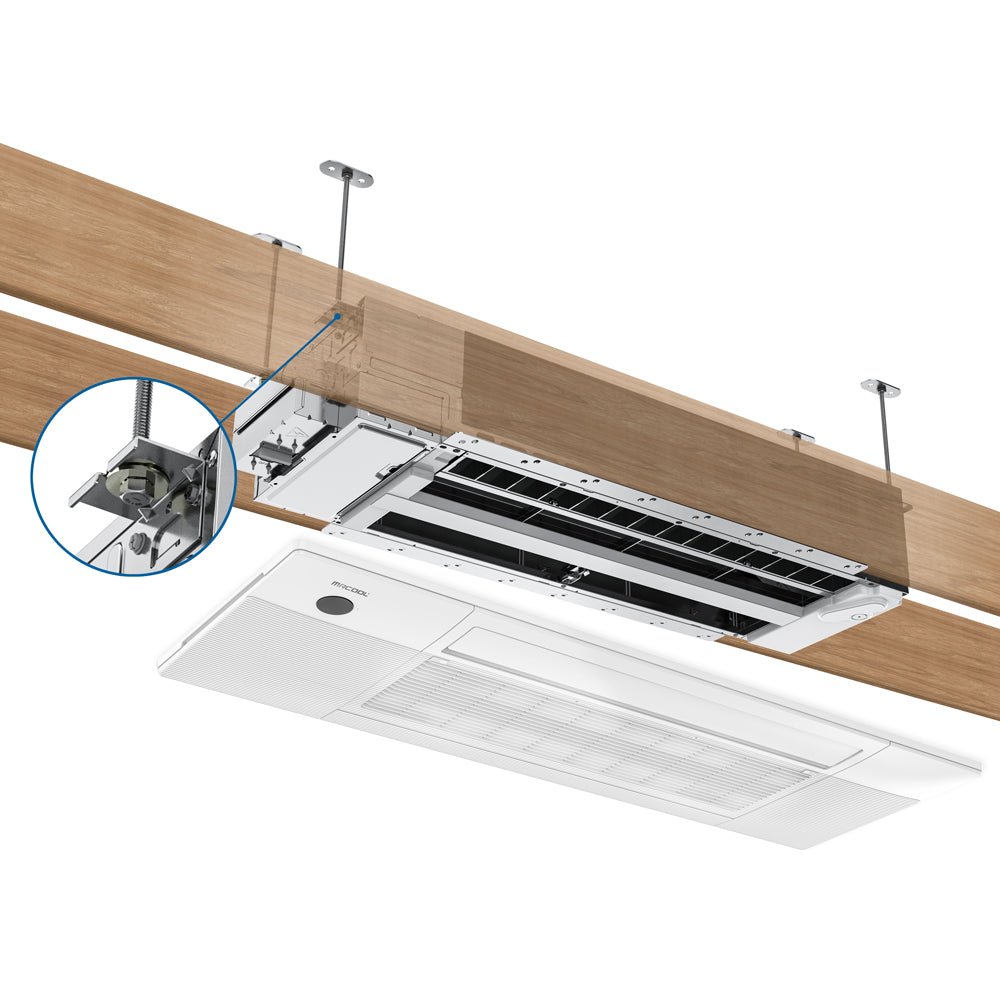

| Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists. |
Specs
| SEER | Up to 20.75 |
| EER | Up to 12.5 |
| HSPF-4 | 11 |
| HSPF-5 | 8.6 |
| COOLING CAPACITY (BTU) | 9000 |
| HEATING CAPACITY (BTU) | 9000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| RATED LOAD | 1.5 |
| DECIBEL RATING (DBA) | 40/35.5 |
| DECIBEL RATING LOW (DBA) | 24.5 |
| DECIBEL RATING HIGH (DBA) | 42 |
| BLOWER MOTOR HP | 570/537/488/350 |
| BLOWER MOTOR SPEEDS | 4 |
| BLOWER MOTOR RPM | 1024/944/864 |
| FILTER TYPE | Reusable |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| REGISTERED WARRANTY | Limited Lifetime Compressor |
| BASE WARRANTY | 5-year Parts/7-year Compressor |
| BASE PARTS WARRANTY | 5-year Parts |
| REGISTERED COMPRESSOR WARRANTY | Limited Lifetime Compressor |
| BASE COMPRESSOR WARRANTY | 7-year Compressor |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU;PR;VI |
| NET DEPTH (IN) | 13.19 |
| NET HEIGHT (IN) | 8.98 |
| NET WIDTH (IN) | 50.31 |
| NET WEIGHT (LBS) | 44.31 |
| GROSS DEPTH (IN) | 22.48 |
| GROSS HEIGHT (IN) | 22.64 |
| GROSS WIDTH (IN) | 57.6 |
| GROSS WEIGHT (LBS) | 88 |
