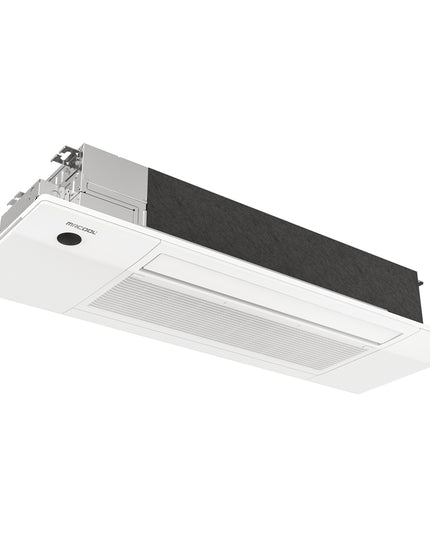

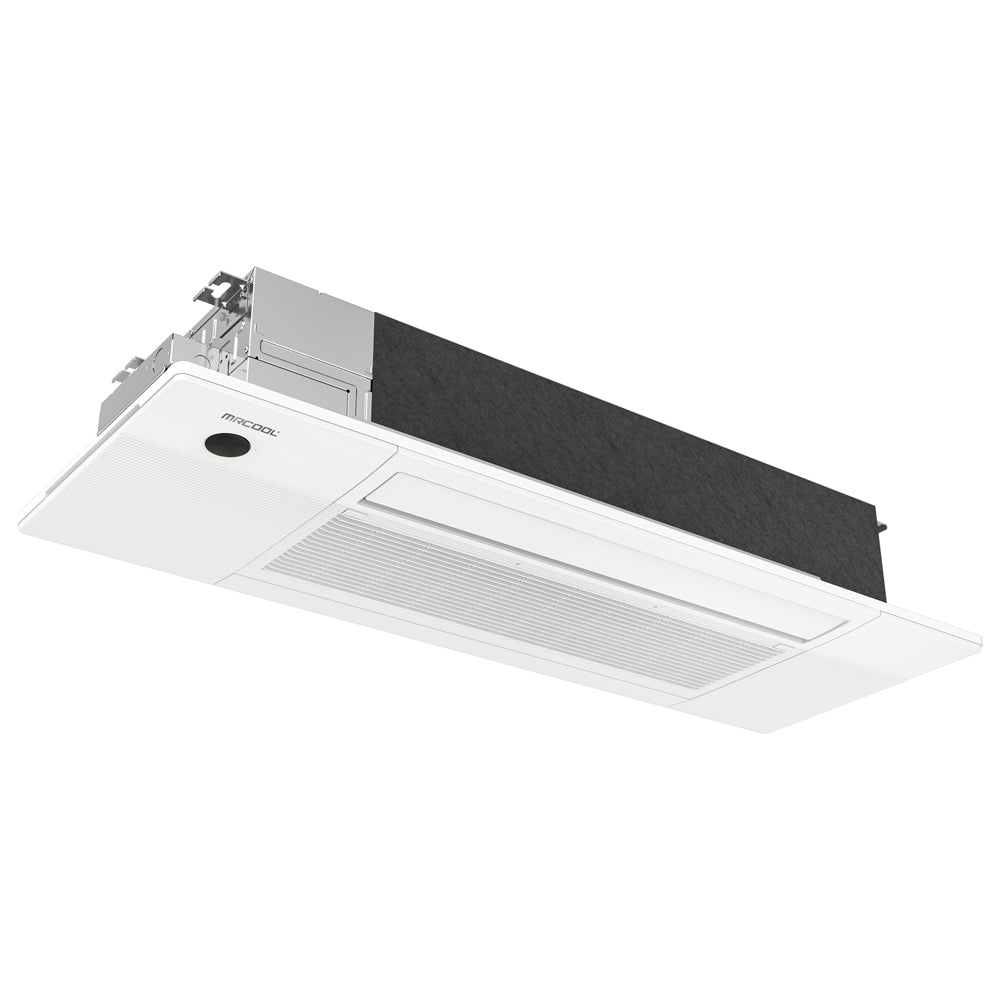

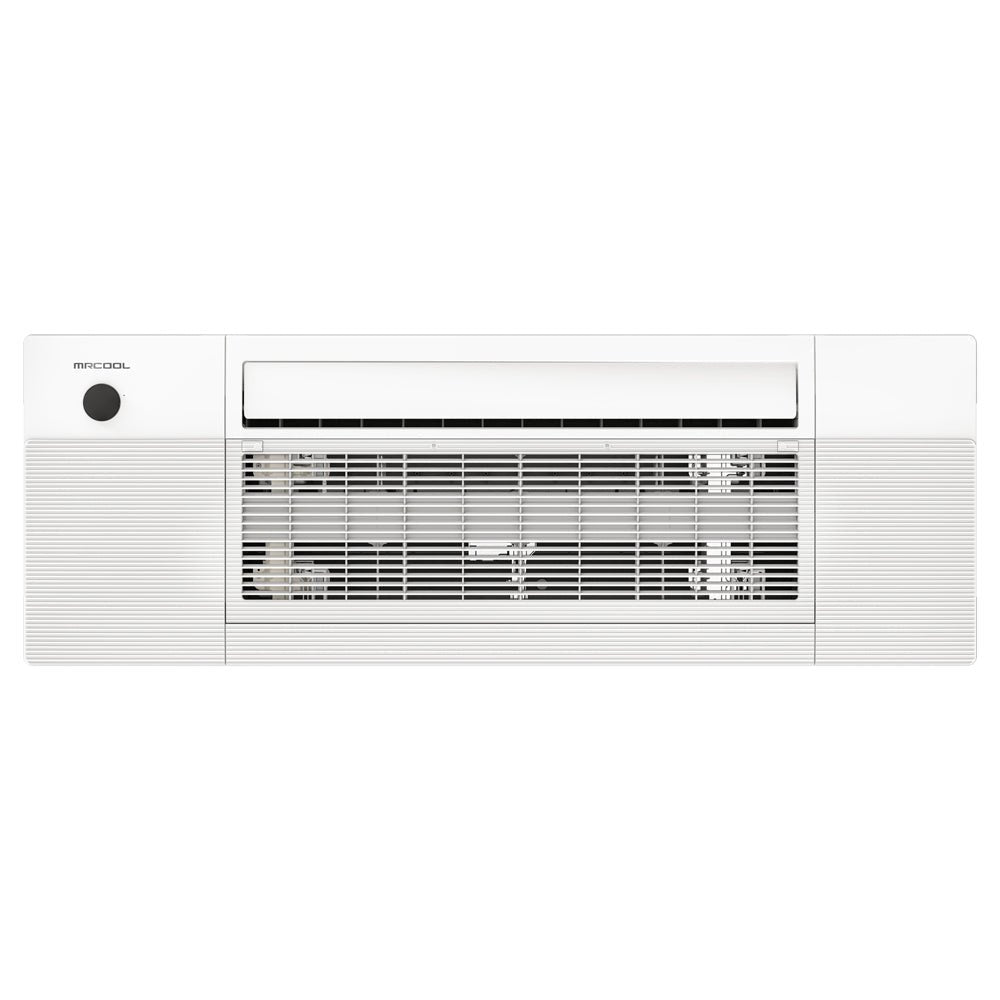

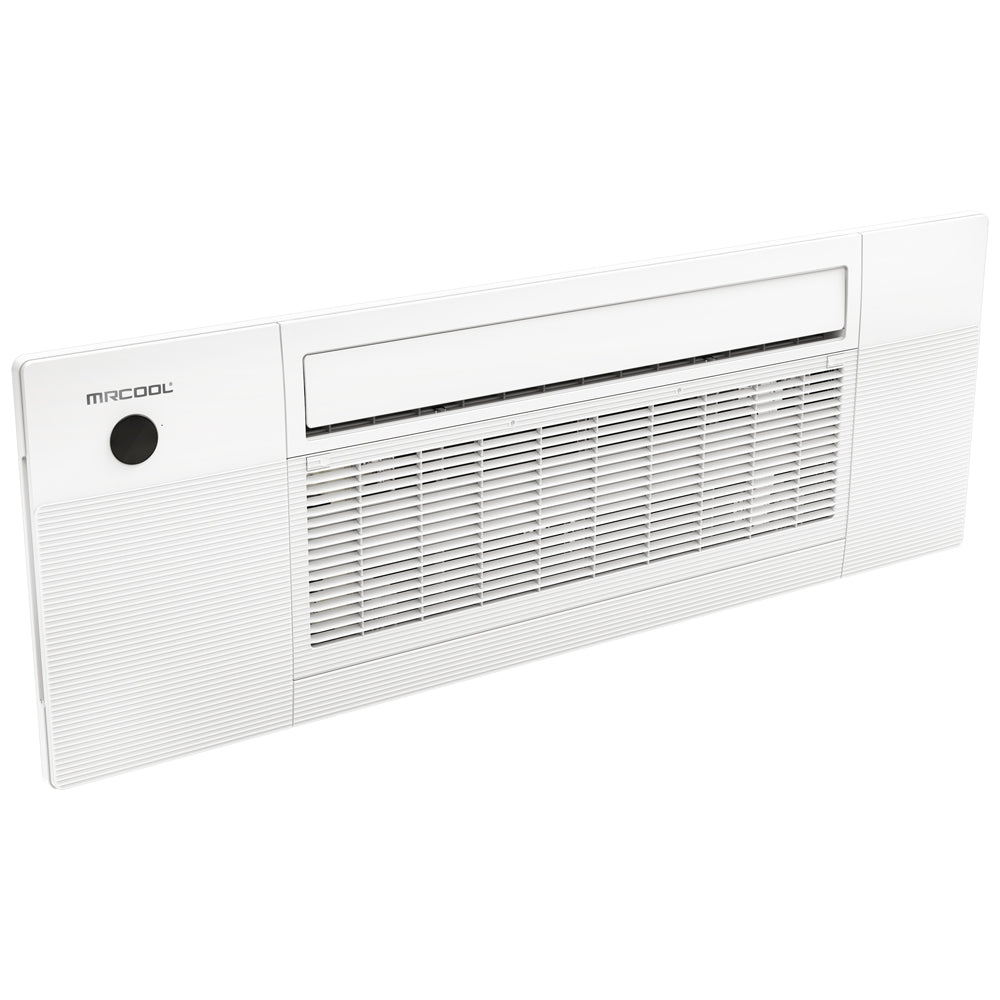

MRCOOL® DIY® Series OuttaSight™ 18k BTU Ceiling Cassette

• Free pickup in our shop(s)

$1,199.00

Quantity Add to cart





This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

• Safe & Secure Checkout

• Warranty 7-Year Compressor / 5-Year Parts View Full Warranty Details

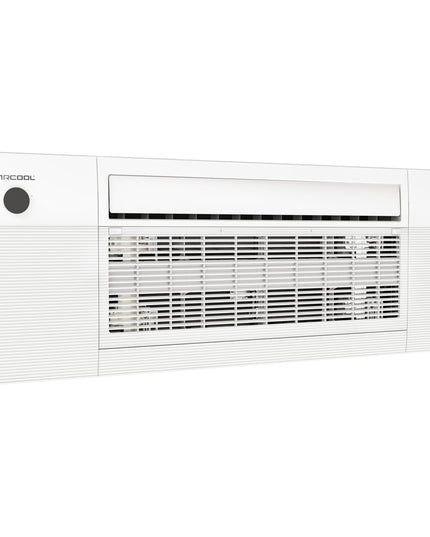

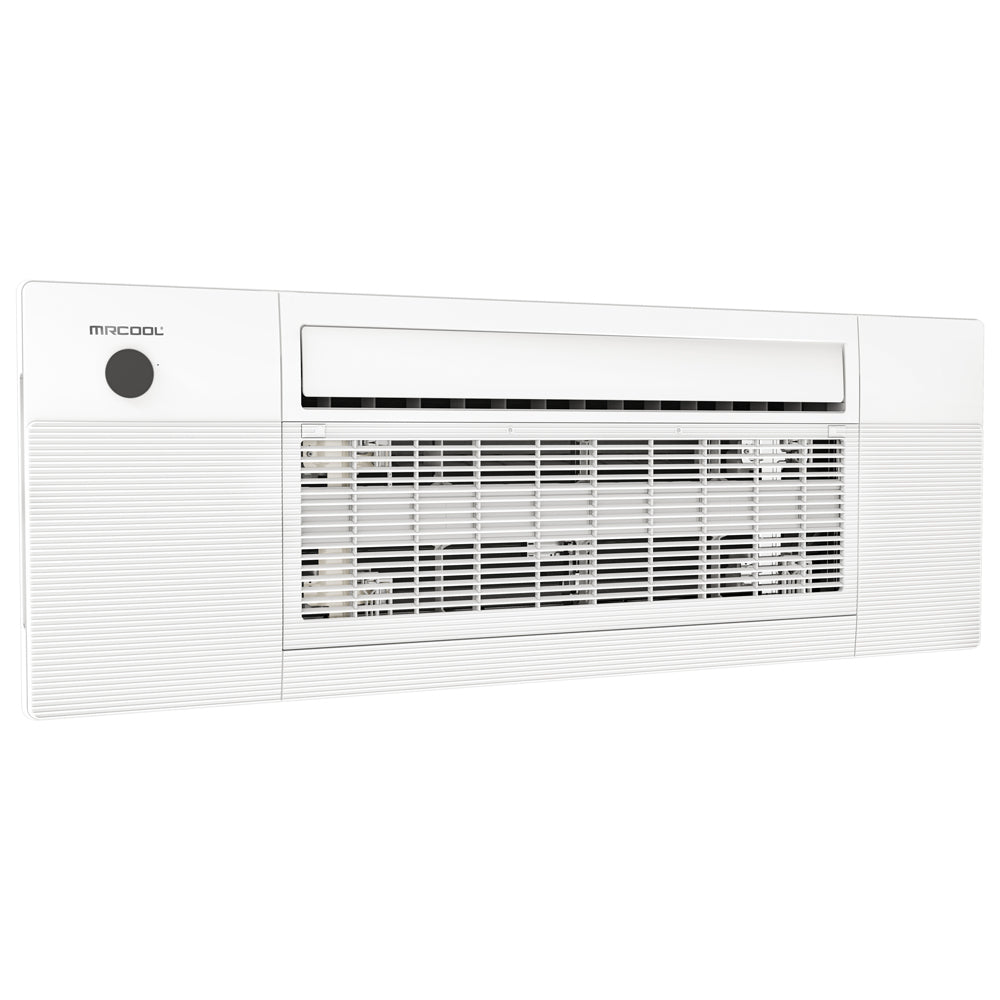

MRCOOL® DIY® Series OuttaSight™ 18K BTU Ceiling Cassette - Efficient, Discreet Heating and Cooling Solution

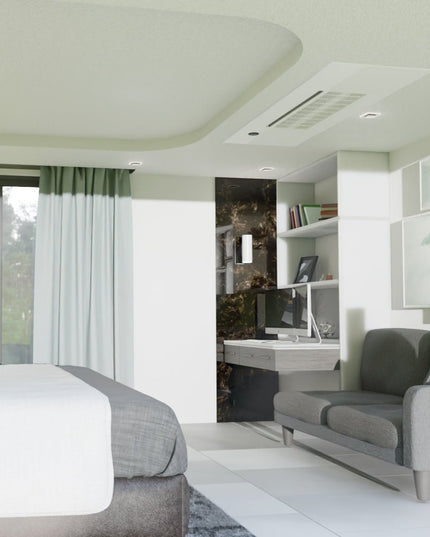

The MRCOOL® DIY® Series OuttaSight™ 18K BTU Ceiling Cassette is the ultimate solution for efficient, discreet heating and cooling in any space. Whether for residential or commercial use, this versatile unit ensures optimal comfort while remaining out of sight. Designed for easy installation and maintenance, the OuttaSight™ cassette fits perfectly in both new constructions and retrofits, making it a reliable addition to any home.

• Discreet & Low-Profile Design:

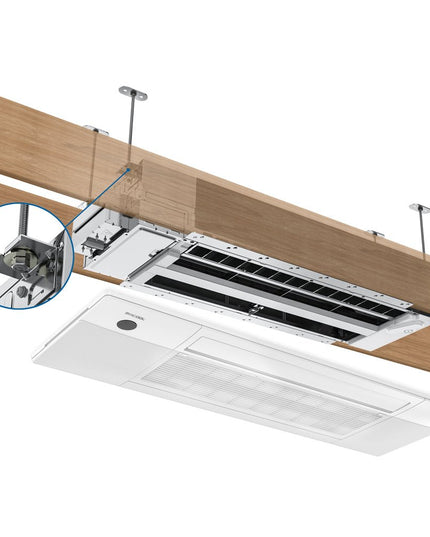

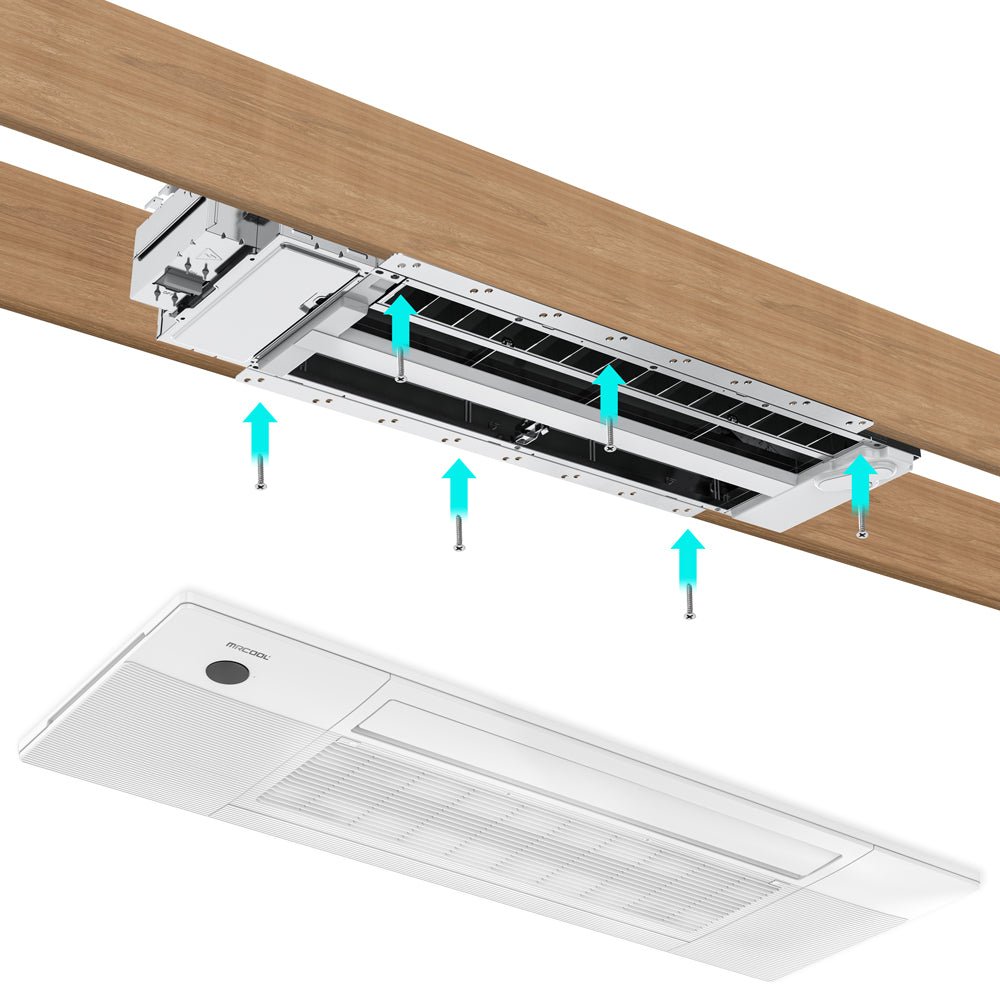

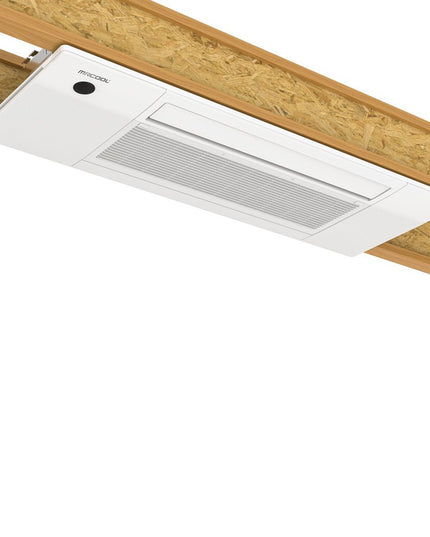

   - The OuttaSight™ Ceiling Cassette is specifically designed for a low-profile, recessed installation, making it perfect for areas where traditional wall-mounted or ducted systems might be impractical. It installs easily between 16-inch center joists, including pre-manufactured I-joists, allowing it to fit seamlessly in your space without taking up valuable wall or floor space.

• Multi-Zone & Single-Zone Options:

   - This cassette is available in both single-zone and multi-zone configurations, offering flexibility to cater to the heating and cooling needs of both small and large spaces. It’s ideal for homes, offices, or businesses that need efficient climate control in multiple rooms or zones.

• Easy Installation Without Ductwork:

   - The MRCOOL® DIY® OuttaSight™ 18K BTU Ceiling Cassette doesn’t require ductwork or wall space, making installation more straightforward and cost-effective than traditional systems. Whether it's new construction or a retrofit project, this cassette can be easily installed in less-than-ideal locations, unlike other ceiling cassettes that have stricter installation guidelines.

• Pre-Charged & Easy-to-Use Quick Connect® System:

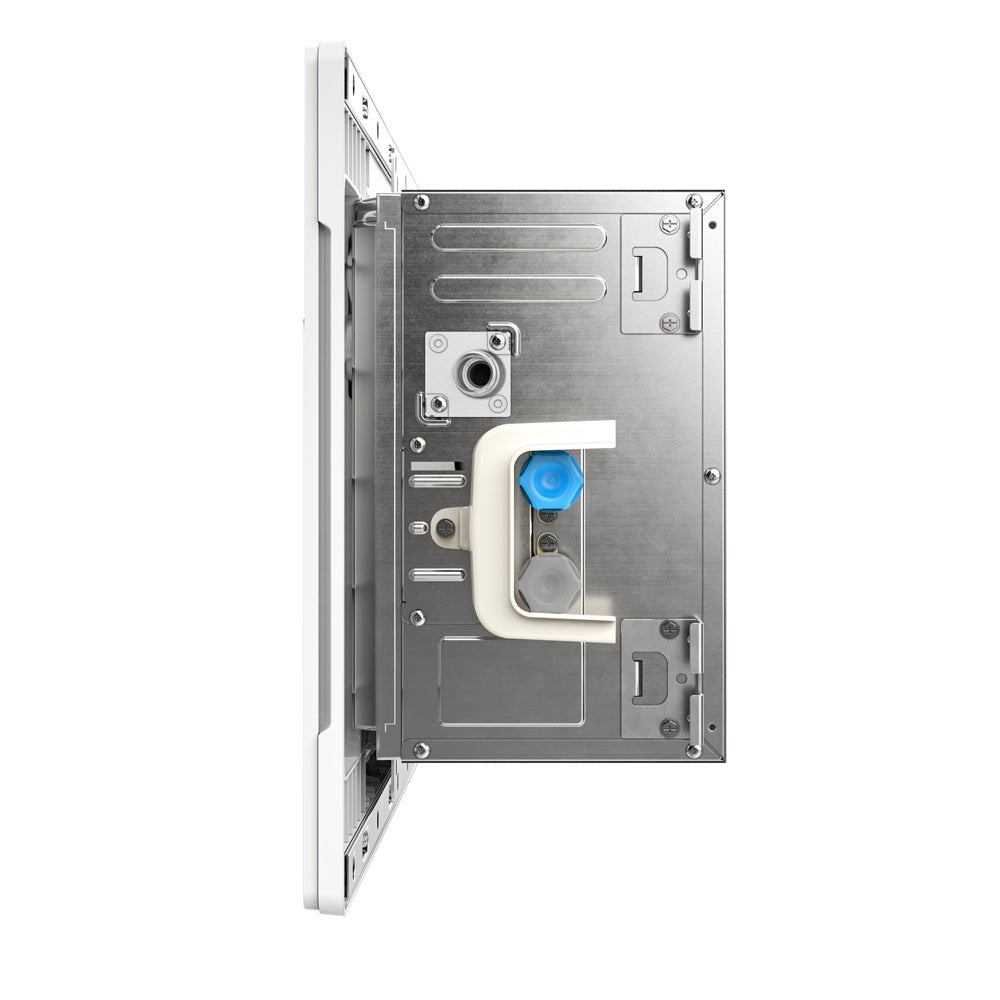

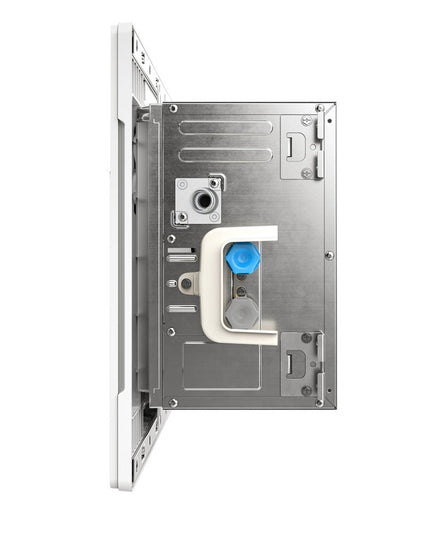

   - This cassette works with the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-410A refrigerant. This eliminates the need for vacuuming and refrigerant charging, making the installation process faster and easier. Additionally, the No-Vac® Coupler enables easy lengthening of the line set when needed.

Multiple Operating Modes for Enhanced Comfort: The OuttaSight™ 18K BTU Ceiling

• Cassette offers several operational modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP, allowing you to customize your indoor climate to meet your needs year-round.
• Quiet Operation: Designed to operate quietly, this cassette ensures a peaceful environment while efficiently heating or cooling your space. Ideal for bedrooms, offices, or living rooms, the quiet operation ensures minimal disruption while maintaining optimal comfort.

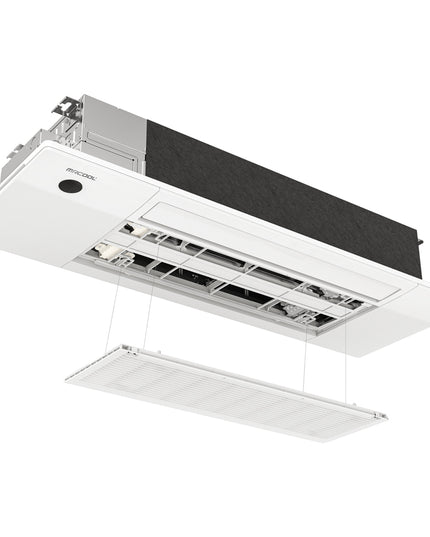

• Convenient Air Filter Maintenance: The cassette features an Elevation Function that automatically lowers the filter panel for easy access to the air filter, making maintenance simple and convenient. This feature helps maintain efficient performance and air quality in your space.
• Reliability & Warranty Protection: The MRCOOL® DIY® OuttaSight™ 18K BTU Ceiling Cassette comes with a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, providing peace of mind and long-term reliability for your investment.

Why Choose the MRCOOL® DIY® OuttaSight™ 18K BTU Ceiling Cassette?

• Efficient Heating & Cooling: Achieve the perfect temperature without bulky units taking up space in your home or office.

• Versatile & Easy to Install: Ideal for both new construction and retrofit projects, with flexible installation options that don't require ductwork.

• Quiet & Convenient Operation: Enjoy quiet operation and easy air filter maintenance with the Elevation function for enhanced comfort and cleanliness.

• Multi-Zone Capability: Perfect for homes or businesses with multiple rooms that need separate climate control.

Choose the MRCOOL® DIY® Series OuttaSight™ 18K BTU Ceiling Cassette for a high-performing, discreet solution to your home comfort needs.



Key Features

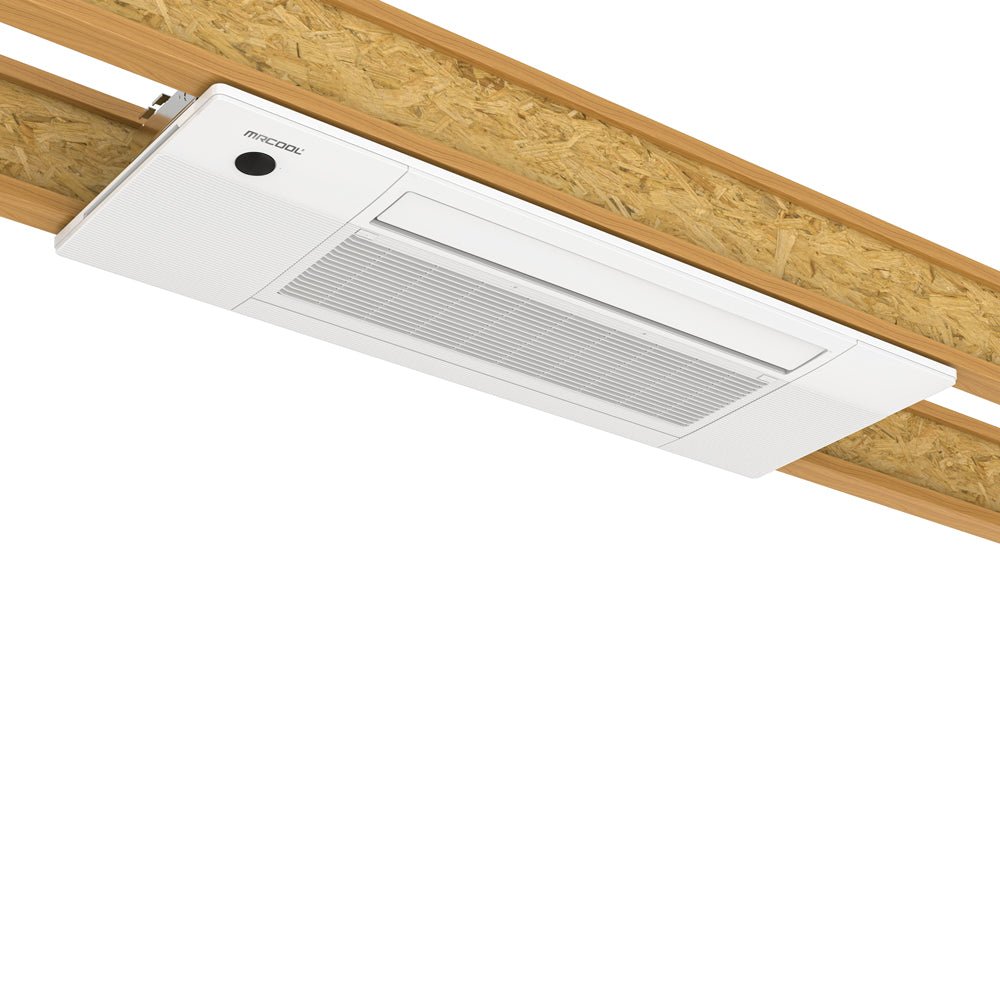

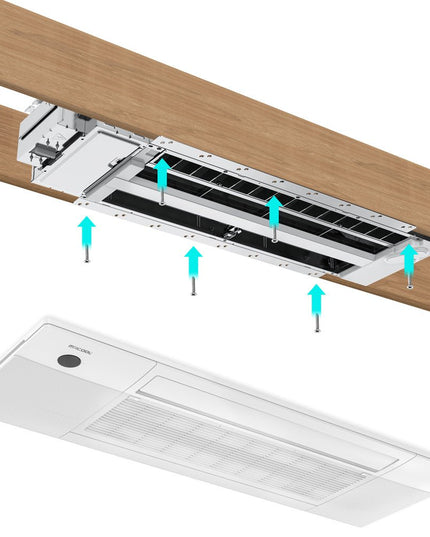

Fits between 16" Ceiling Joists

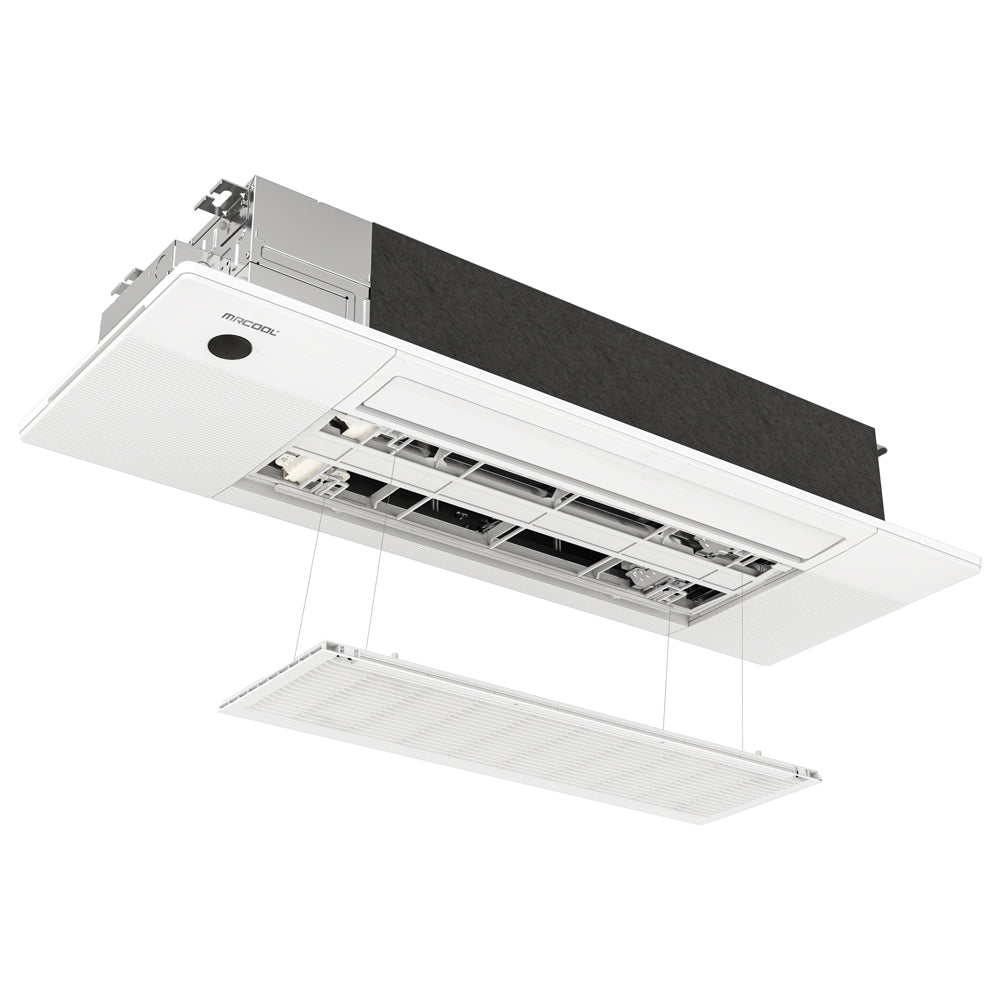

Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.

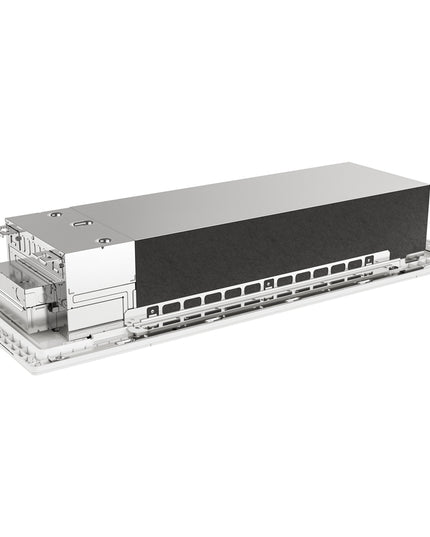

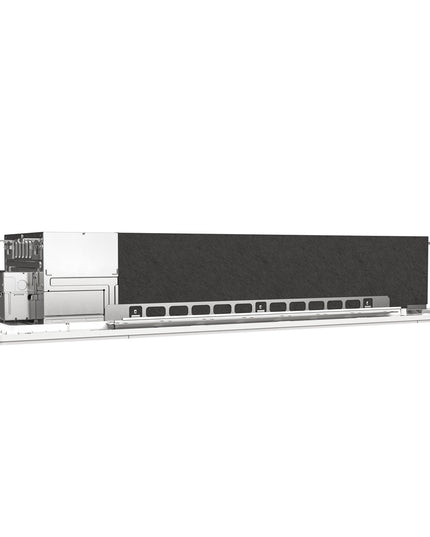

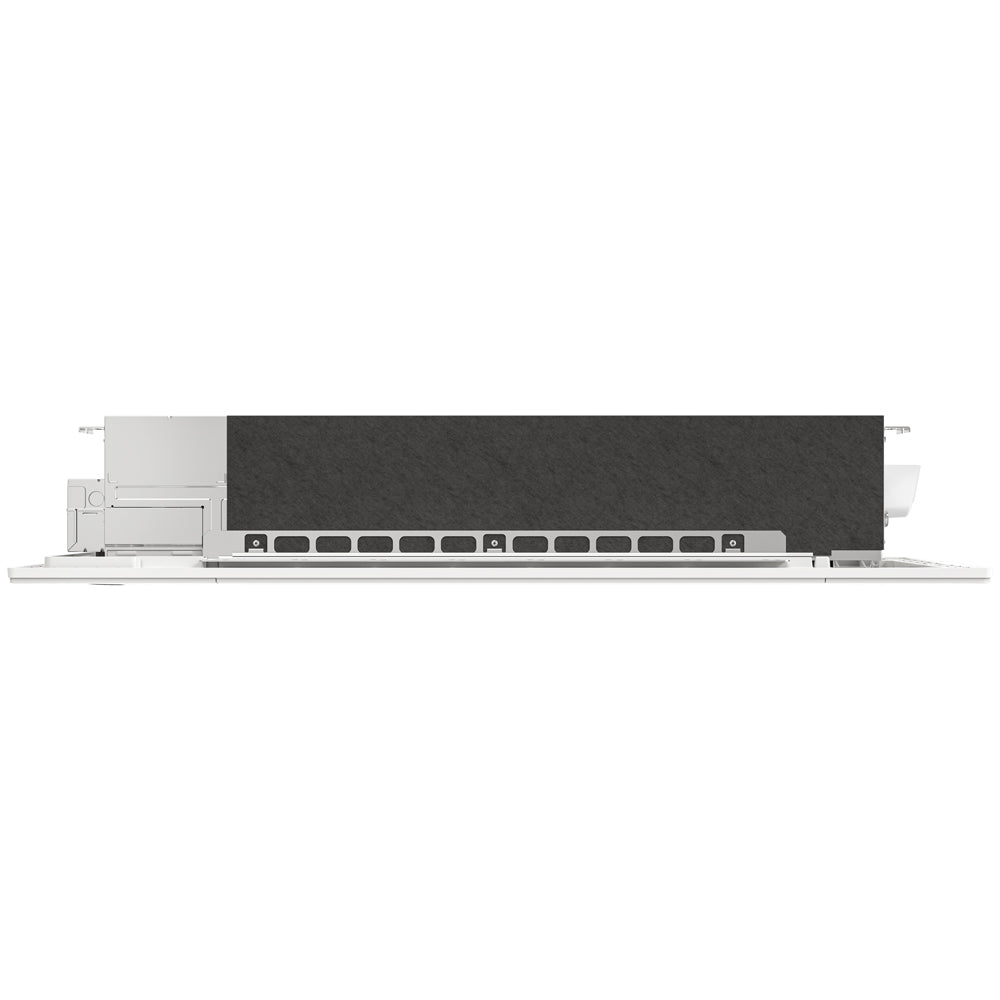

Low Profile Installation

Pair with DIY 4th gen Multi and Single Zone Systems

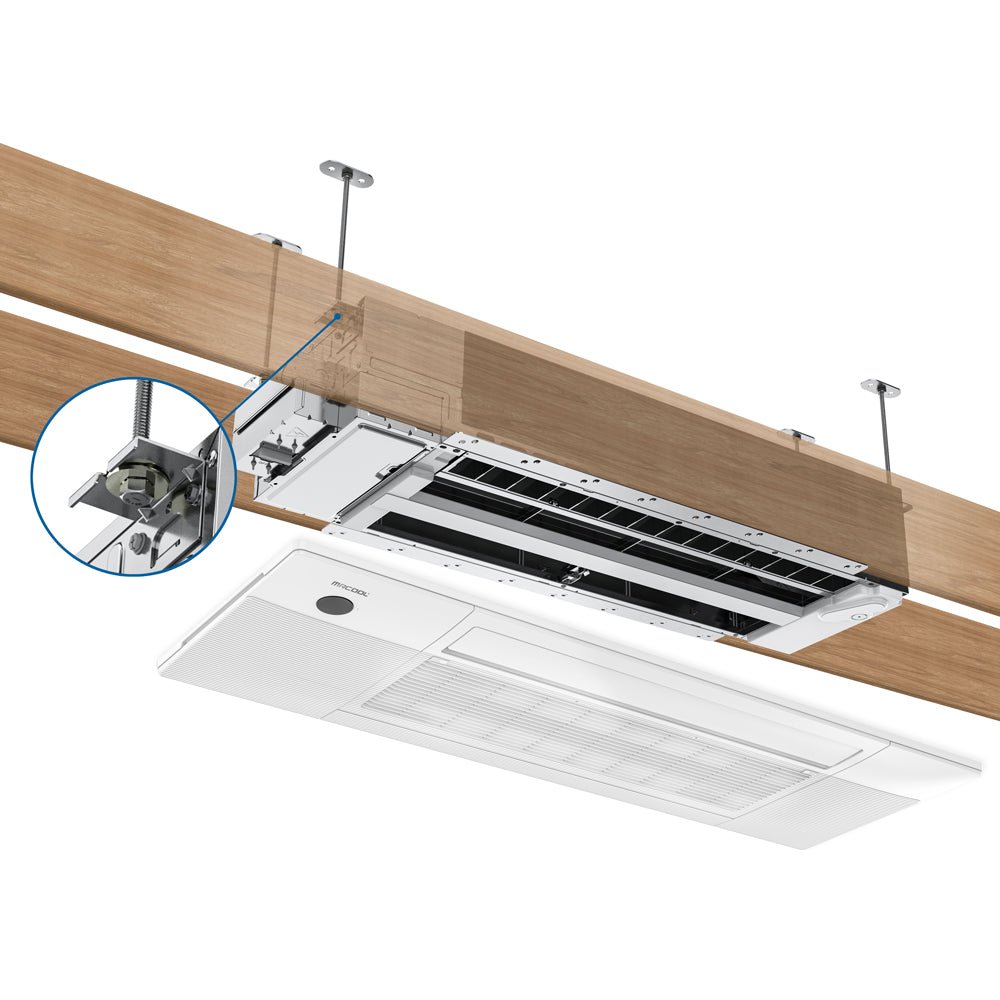

Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists.

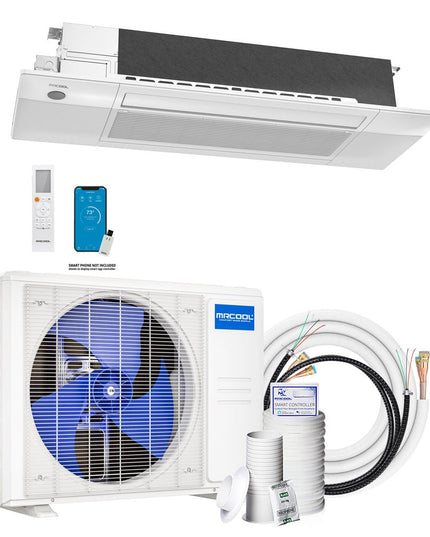

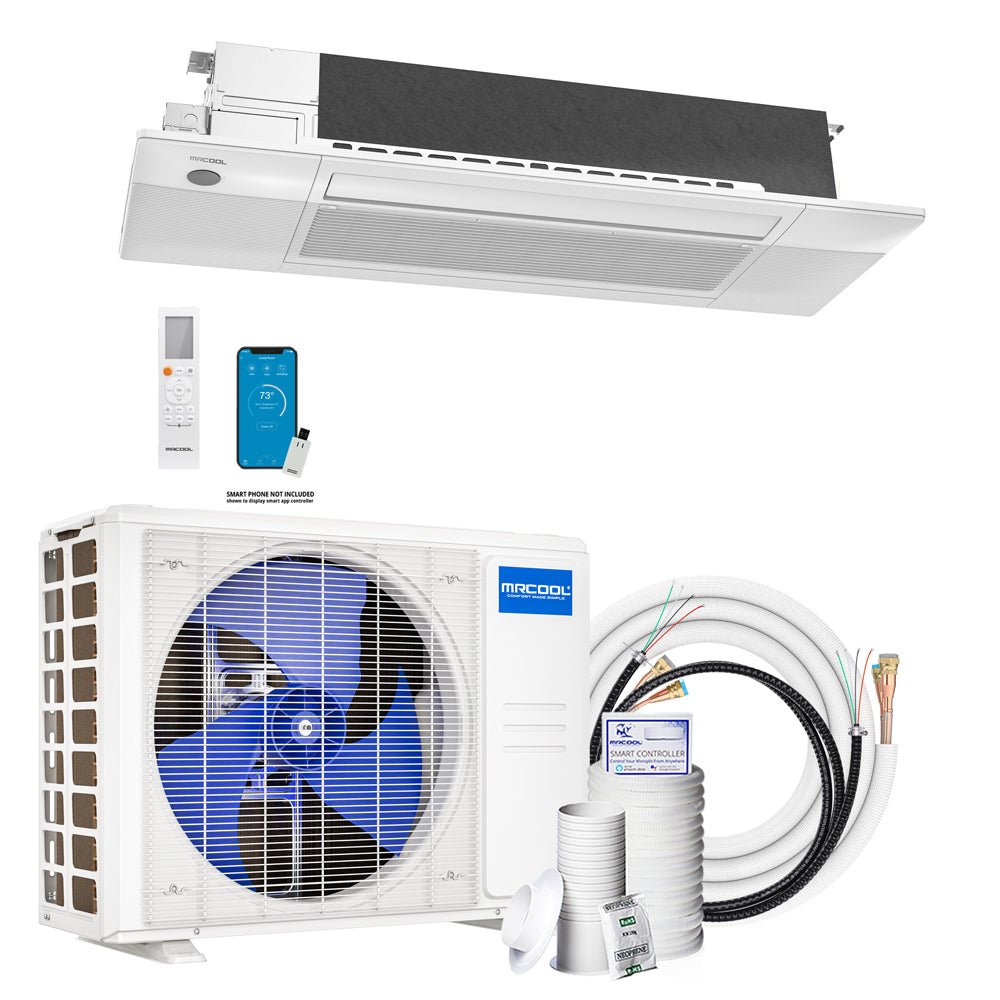

Compatible with the DIY 4th gen 18k single-zone condenser as well as our DIY 4th gen multi-zone systems



Specs

SEER	Up to 21.8
EER	Up to 12.5
HSPF-4	11.6
HSPF-5	9.7
COOLING CAPACITY (BTU)	17000
HEATING CAPACITY (BTU)	19000
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	15
MIN CIRCUIT AMPACITY (A)	3
RATED LOAD	1.5
DECIBEL RATING (DBA)	40/28
DECIBEL RATING LOW (DBA)	21
DECIBEL RATING HIGH (DBA)	44
MIN AMBIENT COOL (F)	60 ~ 90
MIN AMBIENT HEAT (F)	32 ~ 86
LIQUID LINE SIZE	4-Jan
SUCTION LINE SIZE	2-Jan
BLOWER MOTOR HP	598/510/352
BLOWER MOTOR SPEEDS	4
BLOWER MOTOR RPM	1344/1184/1024
FILTER TYPE	Reusable
FAN ONLY OPTION	Yes
QUIET MODE	Yes
SLEEP MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH (IN)	13.19
NET HEIGHT (IN)	8.98
NET WIDTH (IN)	50.31
NET WEIGHT (LBS)	44.97
GROSS DEPTH (IN)	22.48
GROSS HEIGHT (IN)	22.64
GROSS WIDTH (IN)	57.6
GROSS WEIGHT (LBS)	89
