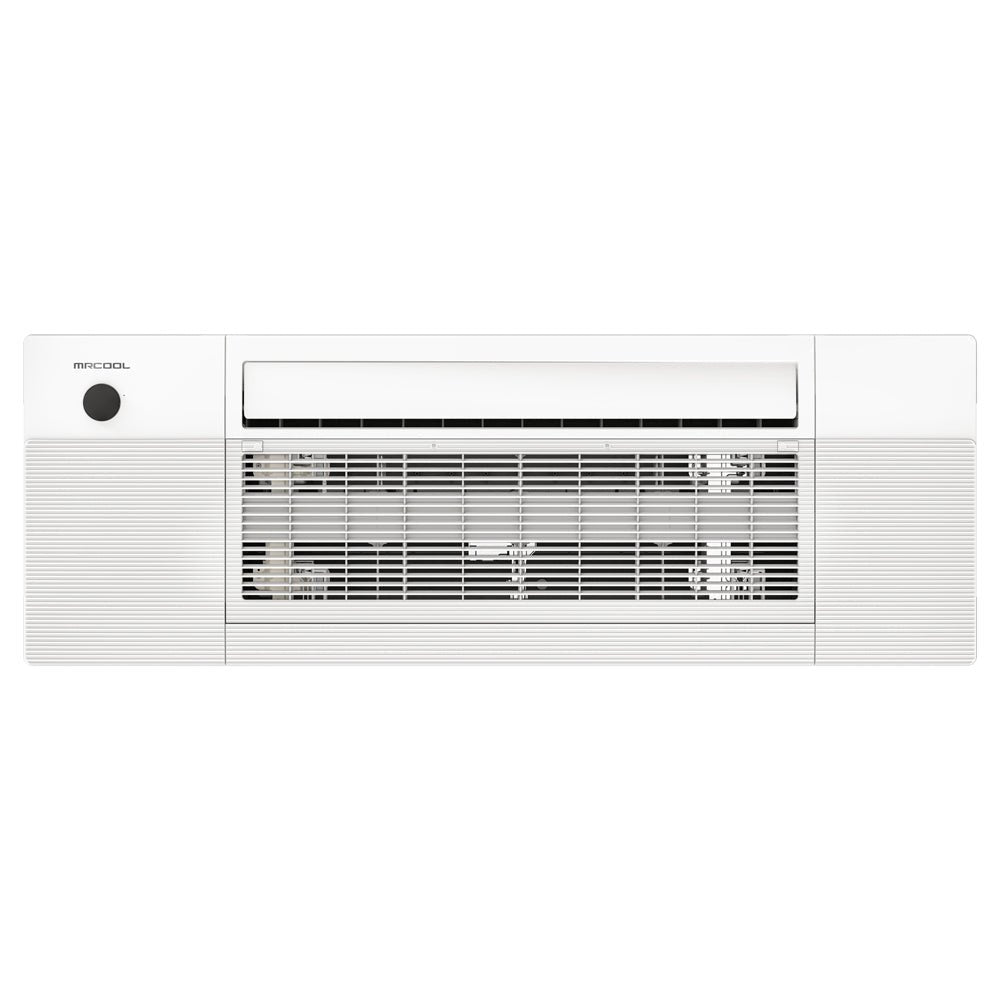

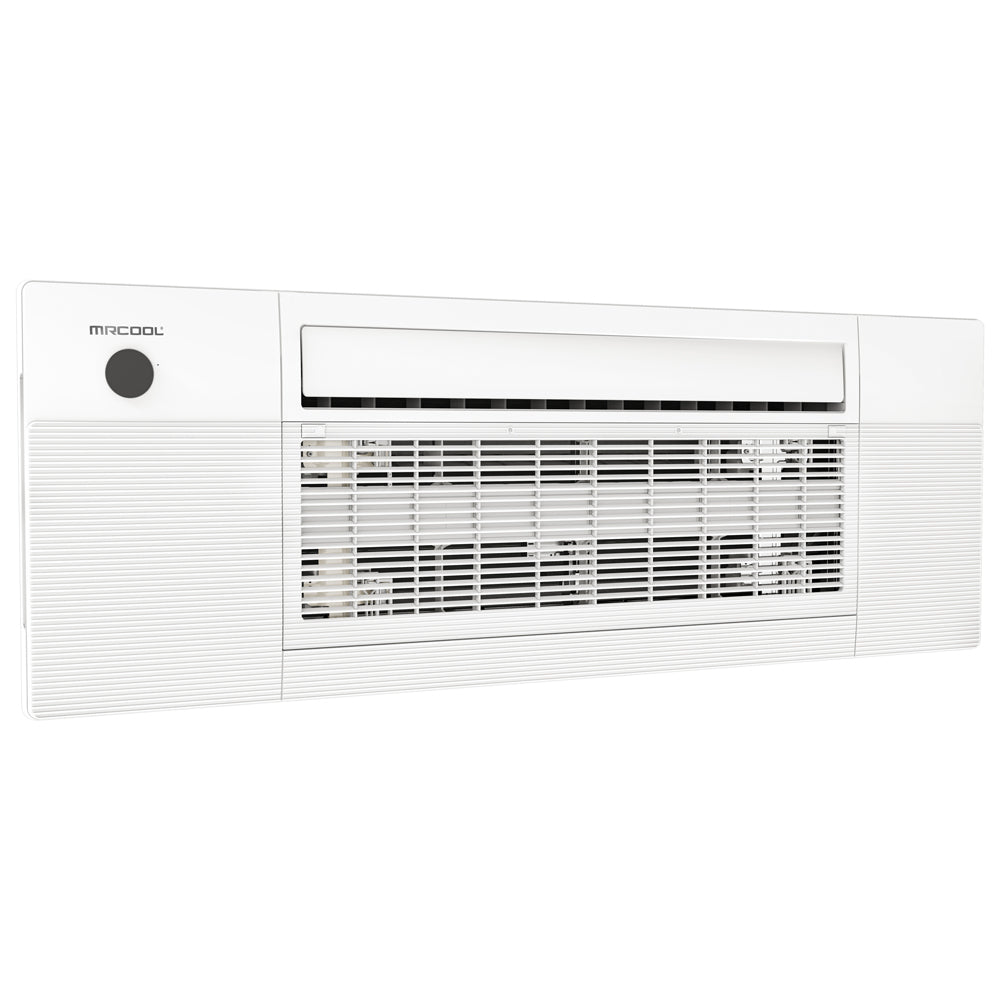

MRCOOL® DIY® Series OuttaSight™ 12k BTU Ceiling Cassette

• Free pickup in our shop(s)

$1,186.00

Quantity Add to cart





This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

• Safe & Secure Checkout

• Warranty 7-Year Compressor / 5-Year Parts View Full Warranty Details

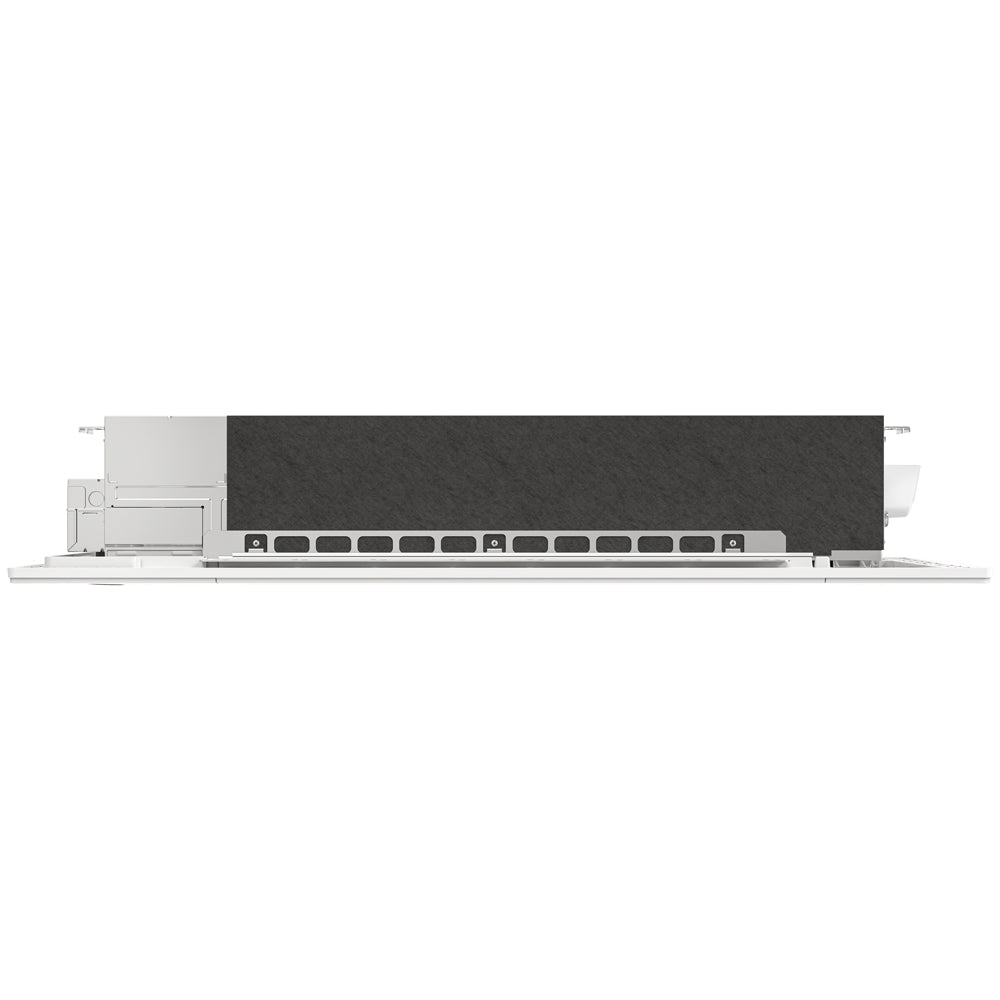

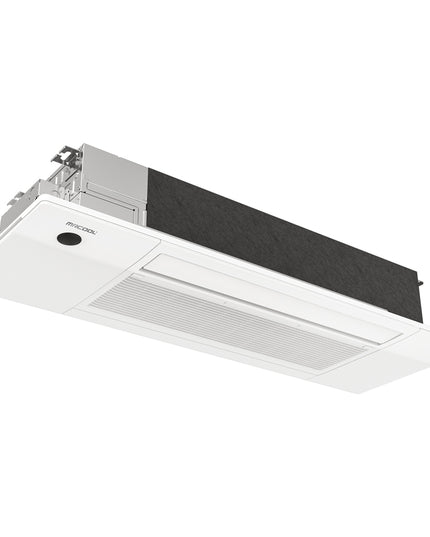

MRCOOL® DIY® Series OuttaSight™ 12K BTU Ceiling Cassette - Efficient, Flexible Heating and Cooling for Any Space

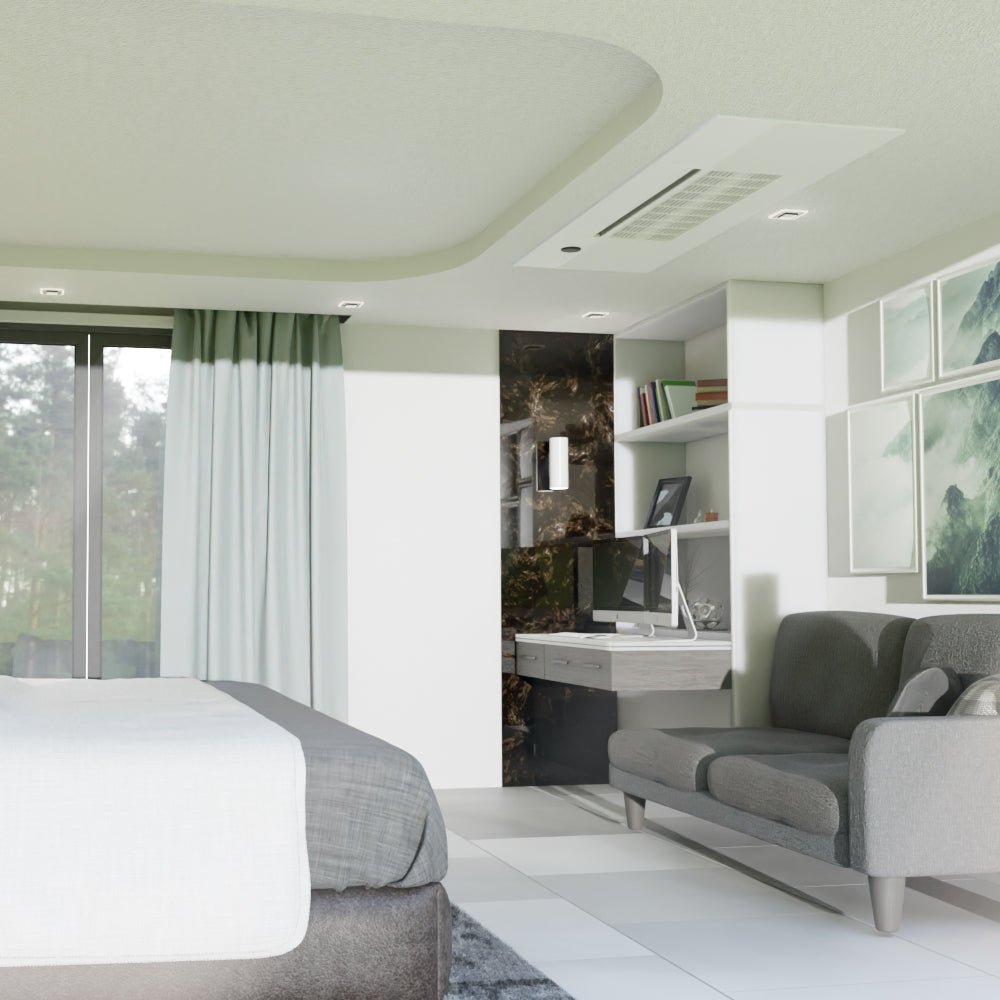

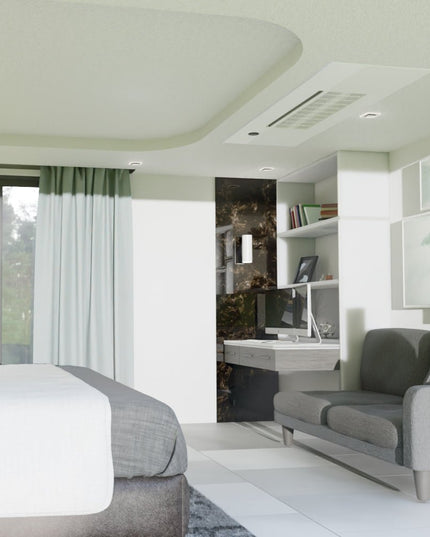

The MRCOOL® DIY® Series OuttaSight™ 12K BTU Ceiling Cassette combines superior efficiency, versatility, and easy installation to deliver optimal comfort for any space. This innovative ceiling cassette is perfect for both new constructions and retrofits, offering discreet and powerful heating and cooling without the need for ductwork or wall space.

• Low-Profile Installation:

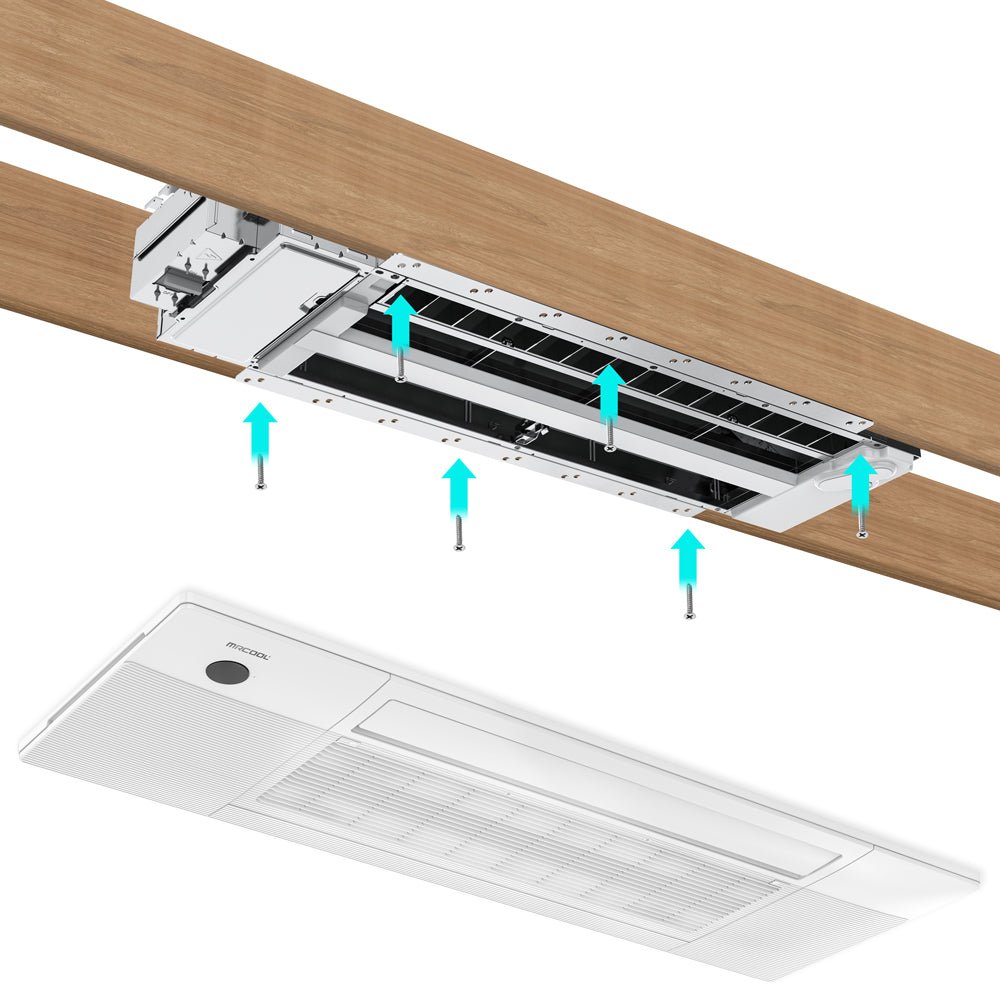

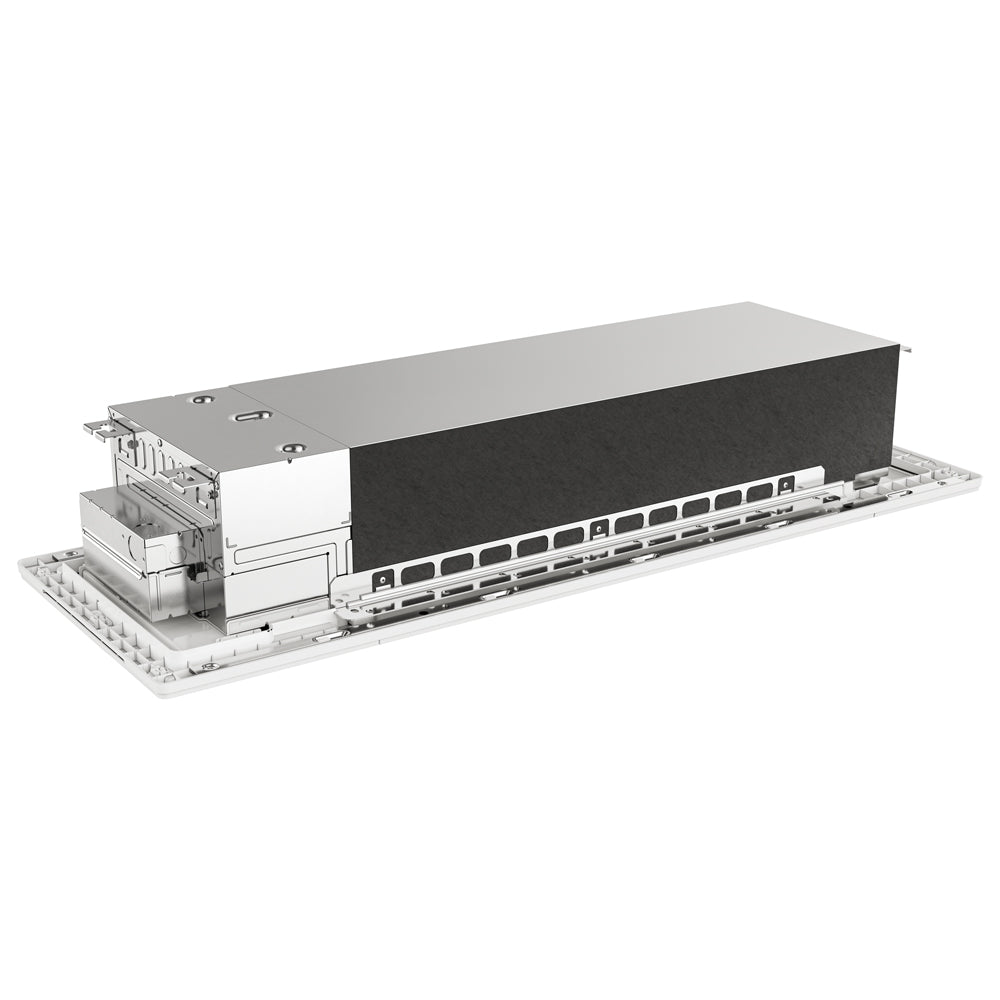

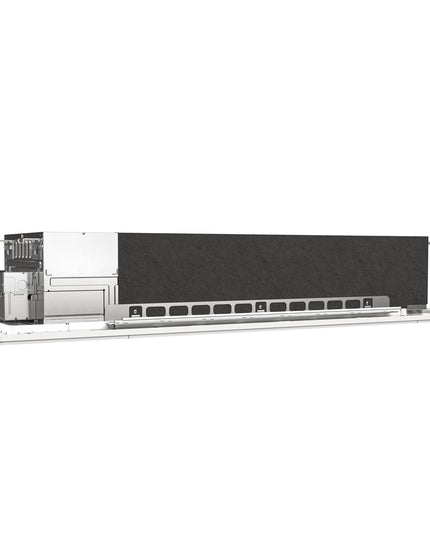

   - The OuttaSight™ cassette offers a sleek, low-profile design, making it ideal for installations in tight spaces. It fits between 16” ceiling joists, including pre-manufactured I-joists, allowing flexible installation without complex requirements.

• Multi-Zone Capability:

   - Ideal for multi-zone heating and cooling, the OuttaSight™ cassette seamlessly integrates with other MRCOOL® DIY® systems, ensuring efficient temperature control for various rooms or areas of your home.

• No Ductwork Required:

   - Unlike traditional HVAC systems, the OuttaSight™ cassette eliminates the need for bulky ductwork, offering a simpler, cleaner solution for efficient temperature management in any room.

• Pre-Charged with R-410A Refrigerant:

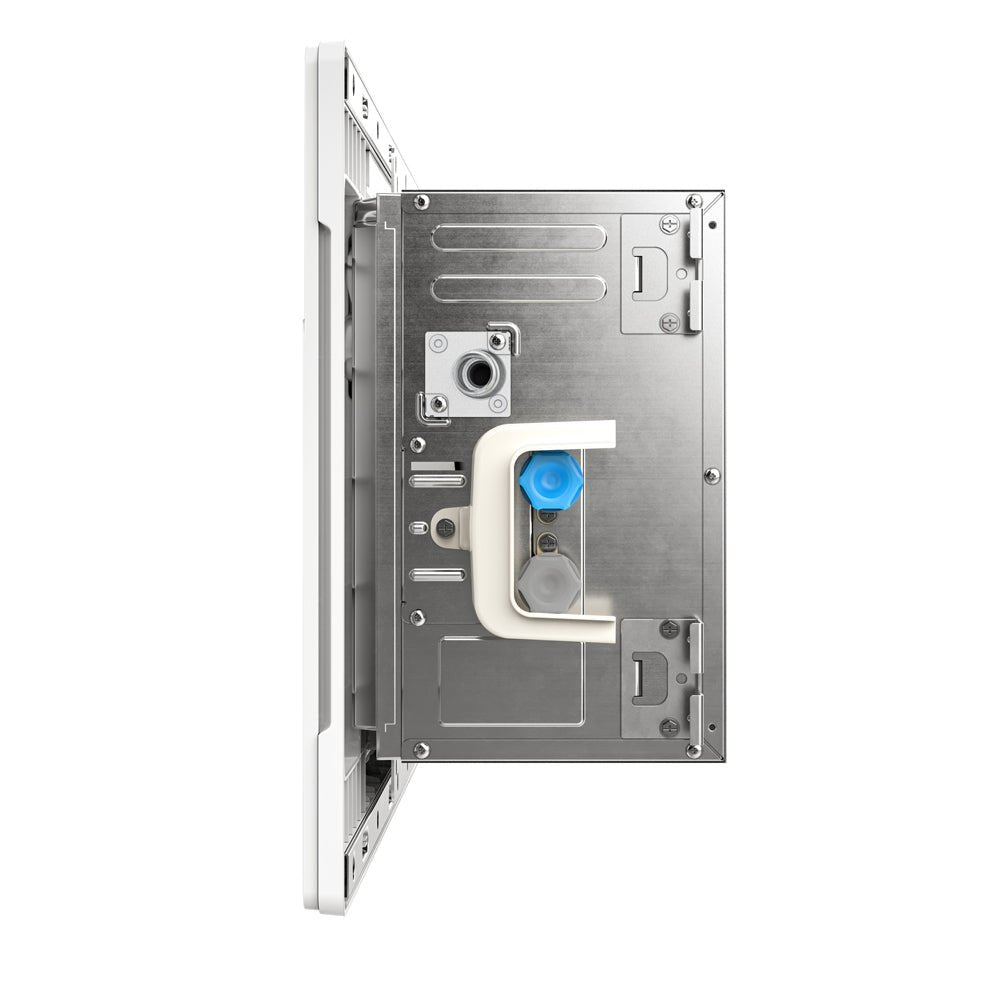

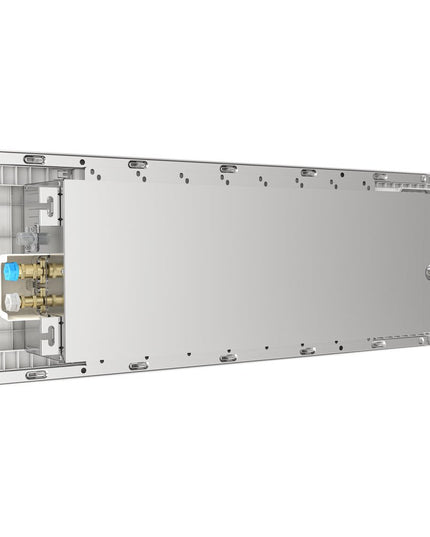

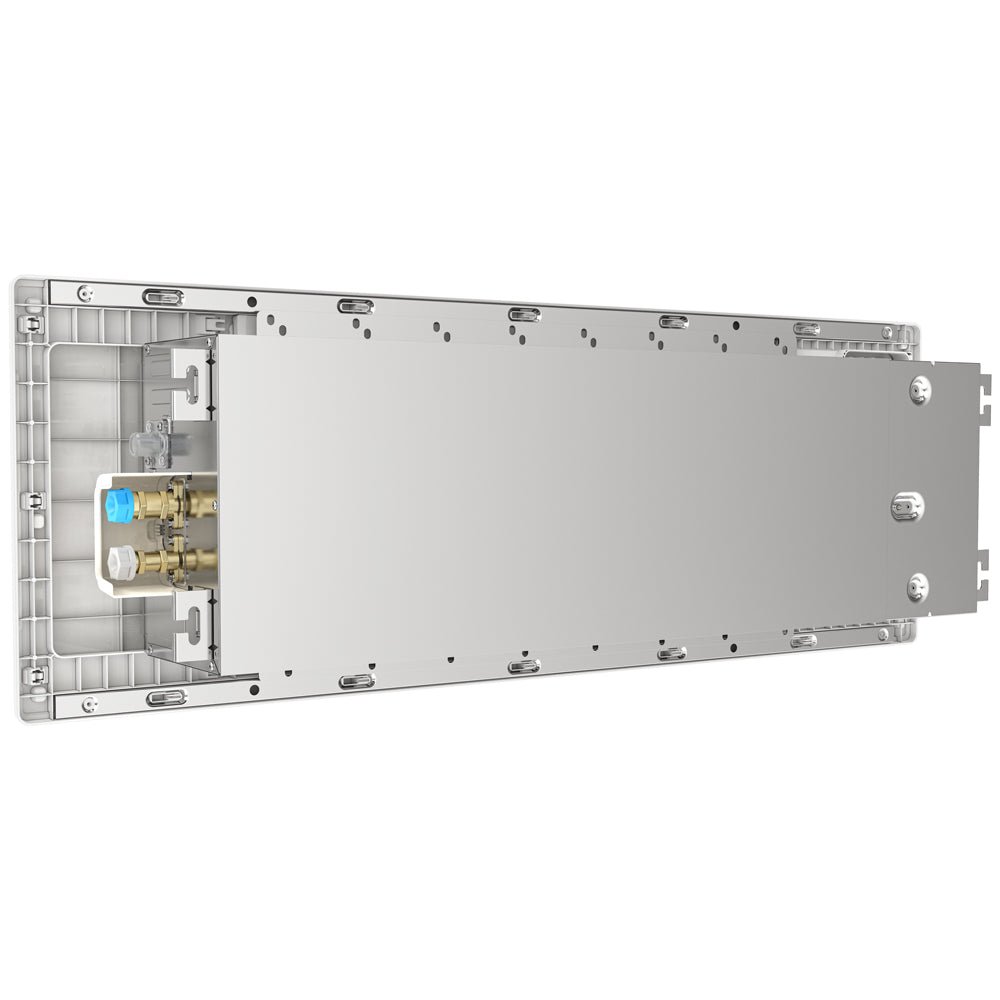

   - The OuttaSight™ cassette is designed to work with the MRCOOL® DIY® Quick Connect® line set. The line set comes pre-charged with R-410A refrigerant, ensuring that no additional vacuuming or refrigerant charging is required during installation. The included No-Vac® Coupler allows for easy extension of the line set if needed.

• Swing Technology & Elevation Function:

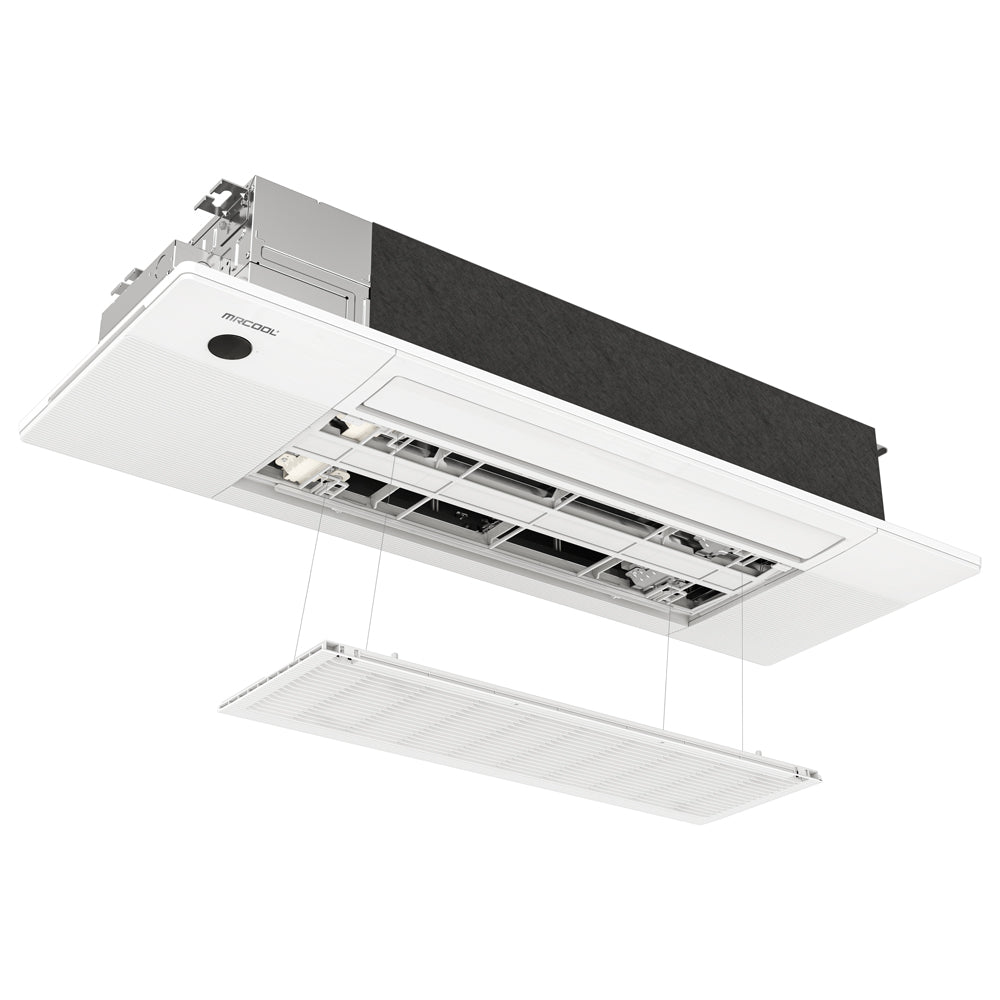

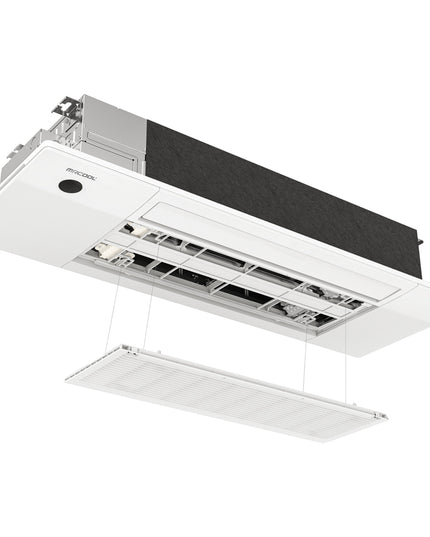

   - The cassette features Swing Technology for even airflow distribution, ensuring comfort throughout the room. The Elevation Function automatically lowers the filter panel for easy access, making filter maintenance simple and hassle-free.

• Quiet Operation:

   - Designed to operate quietly, the OuttaSight™ cassette ensures minimal noise disruption, allowing you to enjoy a peaceful indoor environment while maintaining optimal heating or cooling performance.

• Convenient Control:

   - The cassette is equipped with a remote control, allowing you to adjust settings from anywhere in the room with ease. Plus, the system can be integrated with your home’s smart controls for added convenience.

• Reliable Warranty Coverage:

   - The MRCOOL® DIY® OuttaSight™ 12K BTU Ceiling Cassette comes with a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, providing peace of mind and confidence in the product’s long-term performance.

Whether you're upgrading your current system or embarking on a new construction project, the MRCOOL® DIY® Series OuttaSight™ 12K BTU Ceiling Cassette delivers unmatched flexibility, performance, and ease of installation, making it the ideal solution for your home’s heating and cooling needs.



Key Features

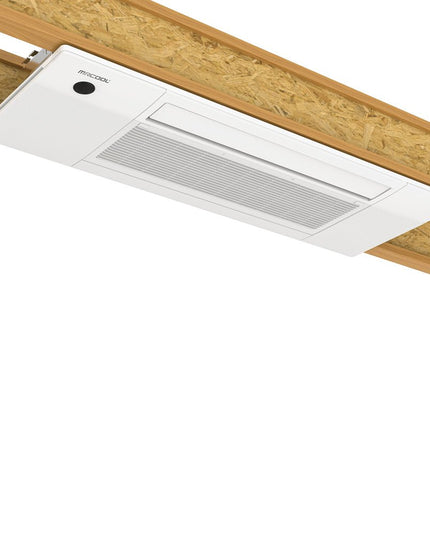

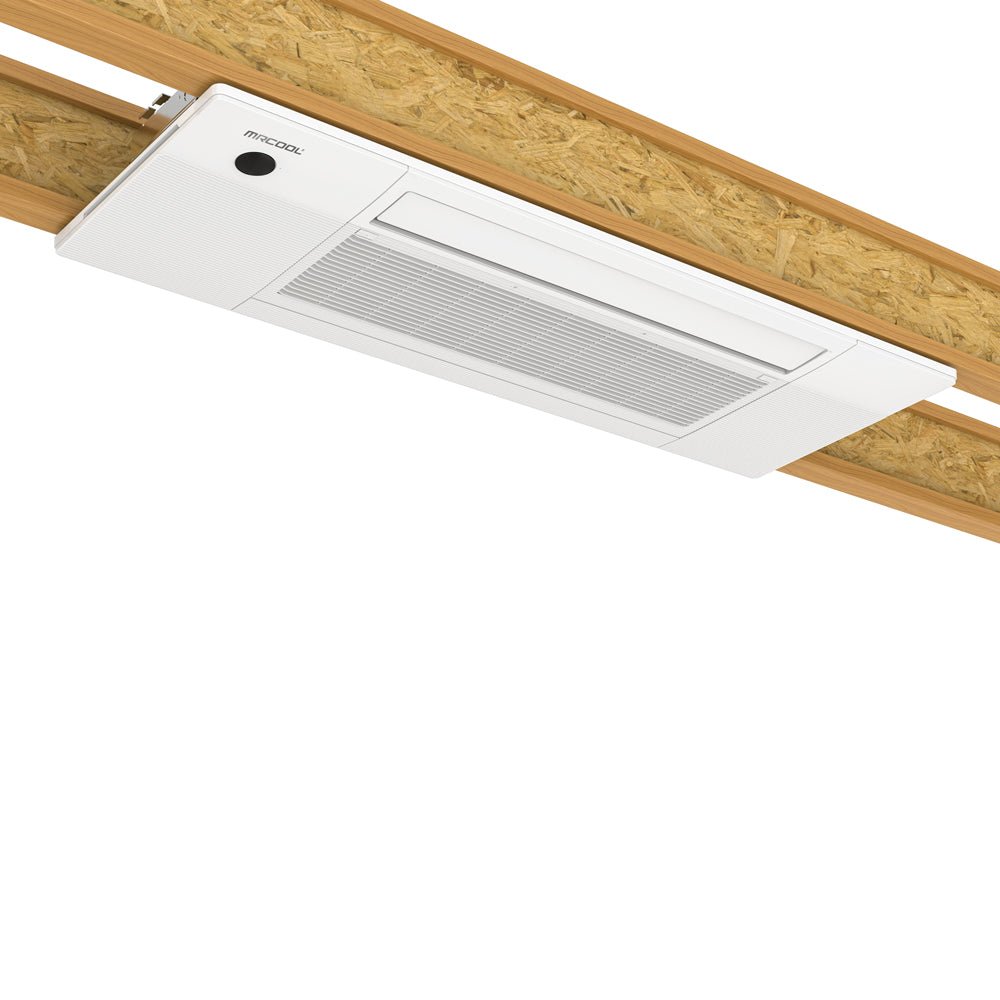

Fits between 16" Ceiling Joists

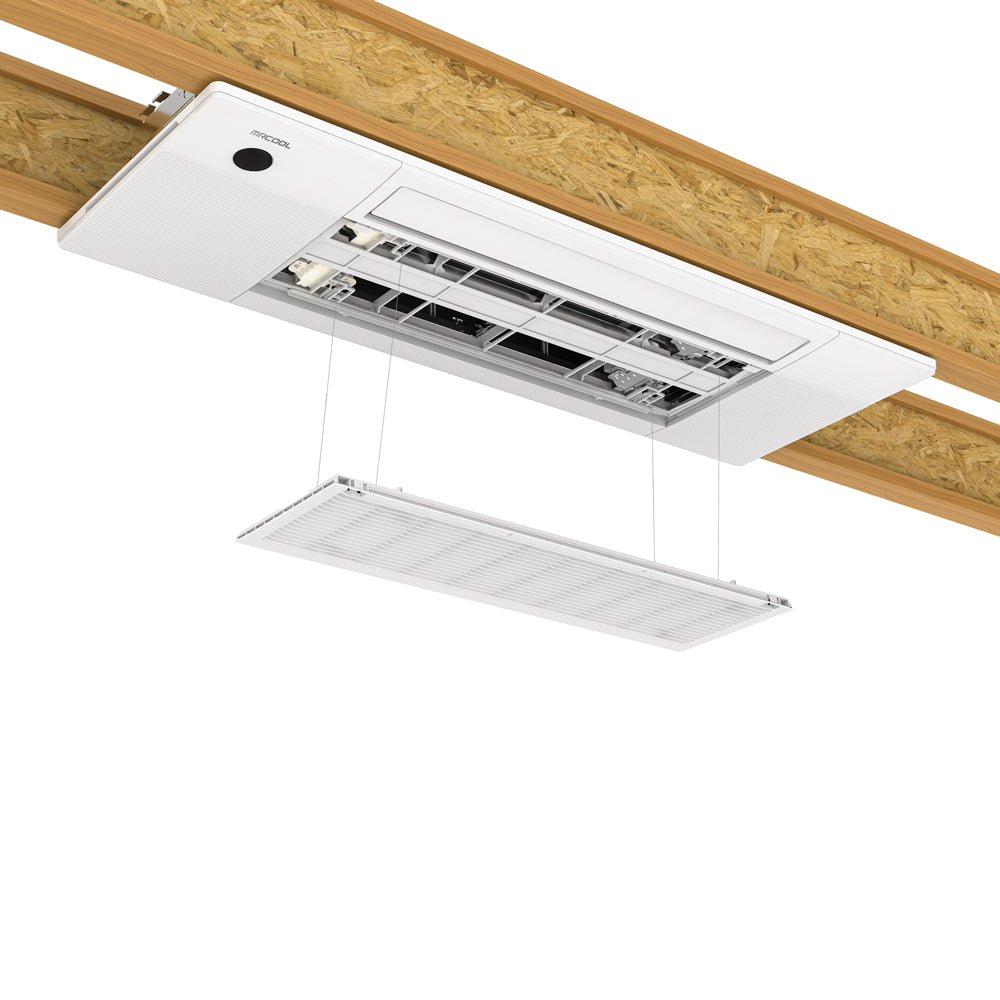

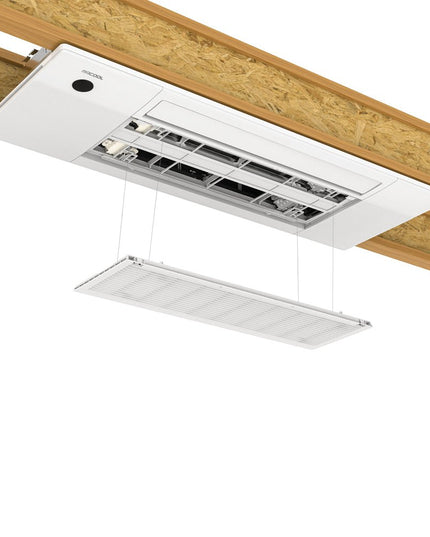

Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.

Low Profile Installation

Pair with your DIY 4th gen Multi-Zone system

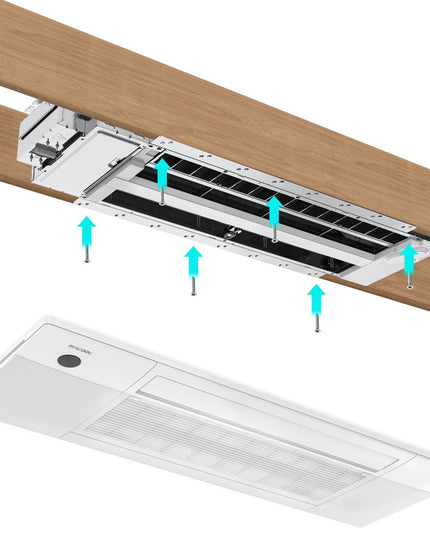

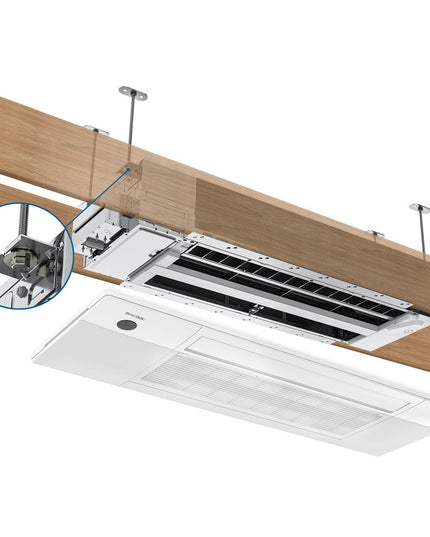

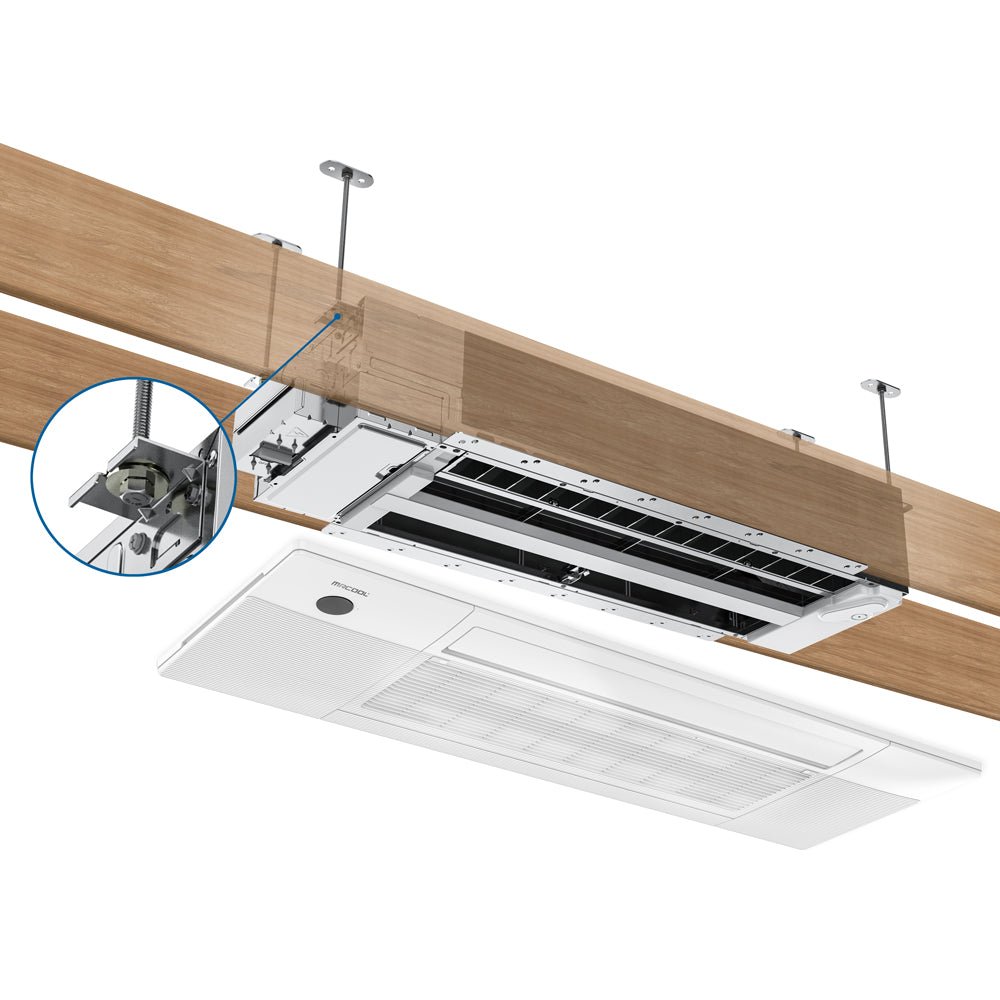

Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists.



Specs

SEER	Up to 20.75
EER	Up to 12.5
HSPF-4	11
HSPF-5	8.6
COOLING CAPACITY (BTU)	12000
HEATING CAPACITY (BTU)	12000
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	15
MIN CIRCUIT AMPACITY (A)	3
RATED LOAD	1.5
DECIBEL RATING (DBA)	41/35
DECIBEL RATING LOW (DBA)	26
DECIBEL RATING HIGH (DBA)	43
BLOWER MOTOR HP	620/560/450/350
BLOWER MOTOR SPEEDS	4
BLOWER MOTOR RPM	1064/974/884
FILTER TYPE	Reusable
FAN ONLY OPTION	Yes
QUIET MODE	Yes
SLEEP MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH (IN)	13.19
NET HEIGHT (IN)	8.98
NET WIDTH (IN)	50.31
NET WEIGHT (LBS)	45.42
GROSS DEPTH (IN)	22.48
GROSS HEIGHT (IN)	22.64
GROSS WIDTH (IN)	57.6
GROSS WEIGHT (LBS)	89
