Product form

• MRCOOL

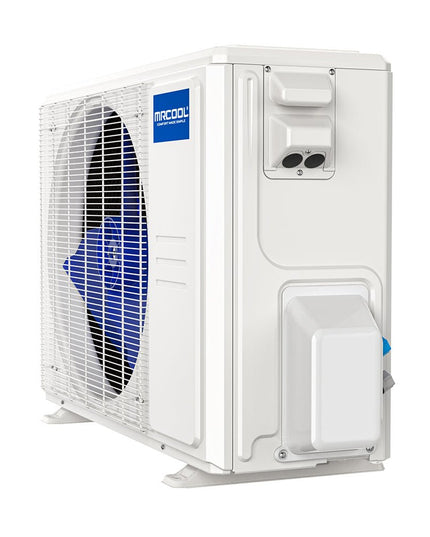

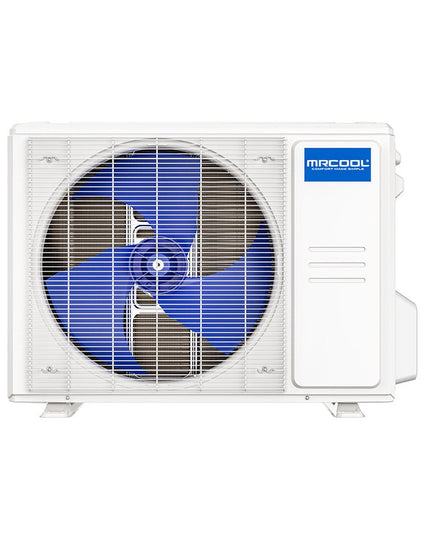

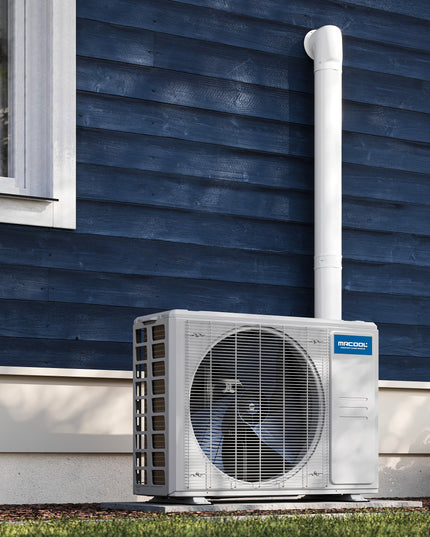

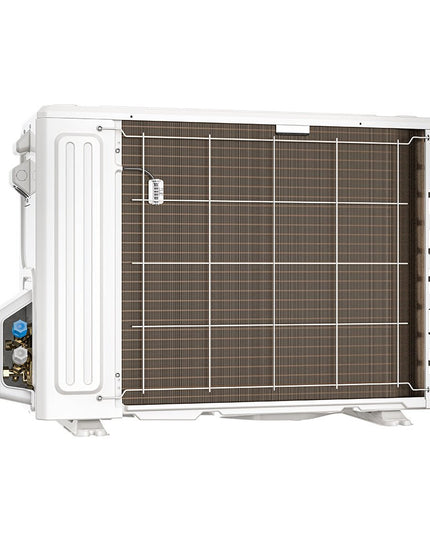

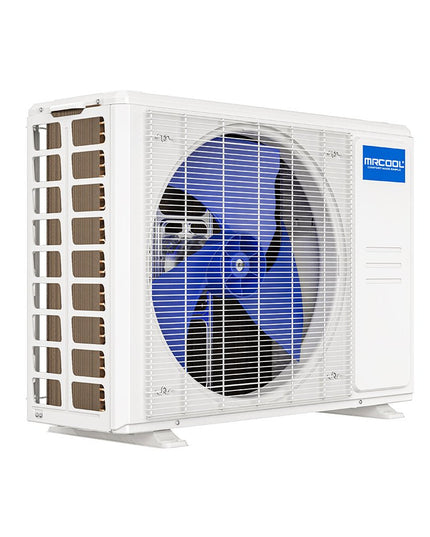

MRCOOL® E Star DIY 4th Gen 12k BTU Ductless Mini-Split Heat Pump Complete System 115V/60Hz

• Free pickup in our shop(s)

$1,738.00

Quantity Add to cart





This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

• Safe & Secure Checkout

• Warranty 7-Year Compressor / 5-Year Parts View Full Warranty Details

MRCOOL® E Star DIY 4th Gen 12K BTU

Ductless Mini-Split Heat Pump Complete System 115V/60Hz

Upgrade your home comfort with the MRCOOL® E Star DIY 4th Generation 12K BTU Ductless Mini-Split Heat Pump Complete System. This advanced heating and cooling solution (Model DIY-12-HP-C-115C25) is designed to efficiently manage the climate in spaces up to 500 sq. ft., making it perfect for bedrooms, living rooms, or home offices.

Key Features:

Powerful Performance: With a robust 12,000 BTU capacity, this single-zone system provides reliable heating and cooling, ensuring your space remains comfortable year-round.

 Energy Efficiency: Achieving an impressive 22 SEER efficiency rating, the MRCOOL® DIY system is Energy Star certified, helping you save on energy bills while reducing your carbon footprint.

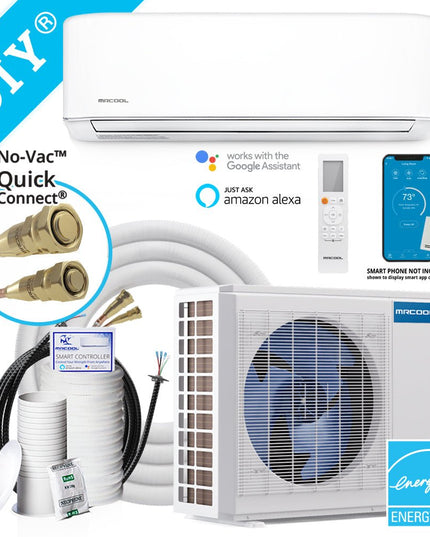

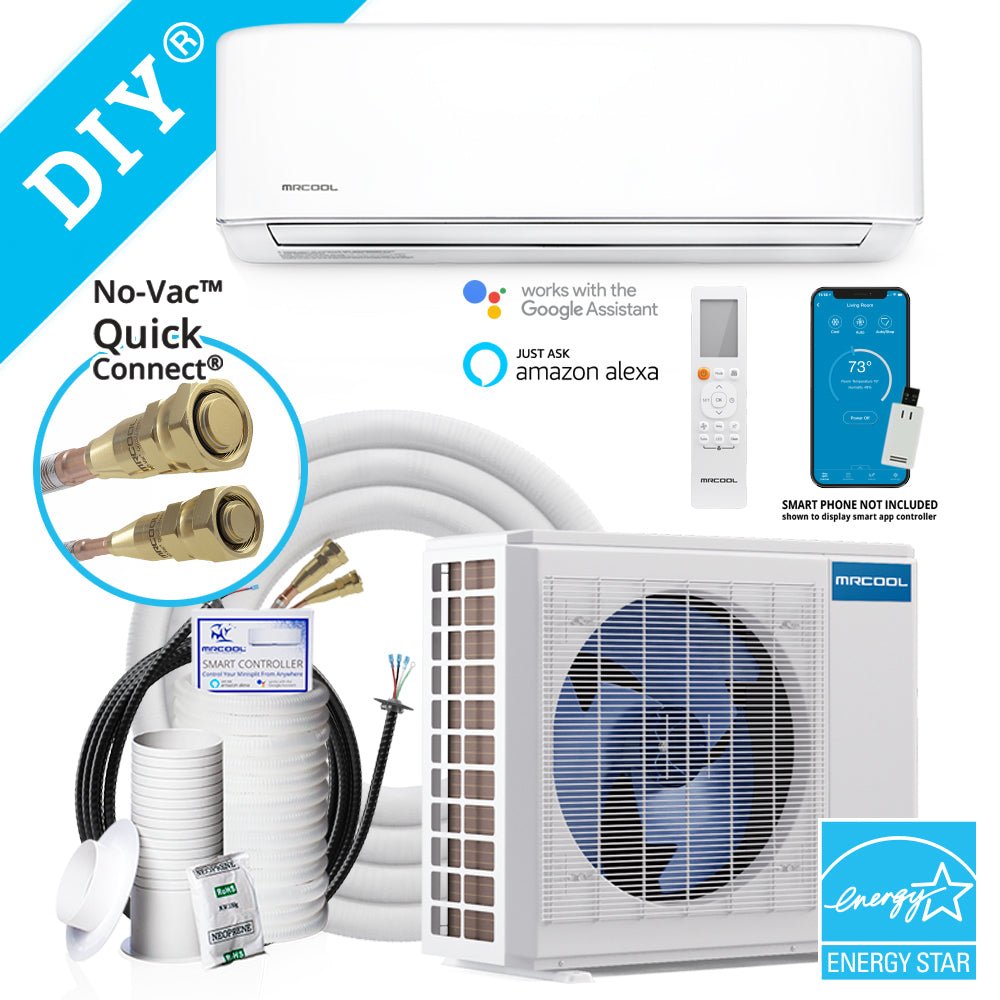

Complete Installation Kit: The system comes complete with a 12K condenser, 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The quick connectors eliminate the need for special tools or professional installation, making it a true DIY project.

Versatile Operating Modes: Tailor your comfort with multiple operating modes, including HEAT, COOL, DRY (dehumidification), and SLEEP, allowing you to adjust the system to your specific needs.

Follow Me Function: The innovative Follow Me feature uses the temperature reading from the hand-held remote control to adjust the room temperature, ensuring optimal comfort wherever you are in the space.

Smart Technology Integration: Control your heating and cooling settings from anywhere using the Smart HVAC app on your smartphone, providing convenience and flexibility in managing your home environment.

Limited Lifetime Compressor Warranty: Enjoy peace of mind with the only system on the market that offers a limited lifetime warranty on the compressor, ensuring long-lasting performance and reliability.

Transform your home into a comfortable oasis with the MRCOOL® E Star DIY 4th Gen 12K BTU Ductless Mini-Split Heat Pump Complete System. Experience the perfect blend of efficiency, convenience, and advanced technology, making it an ideal choice for any homeowner looking to enhance their living space. Order yours today and take the first step towards ultimate home comfort!

• Up to 22.5 SEER2

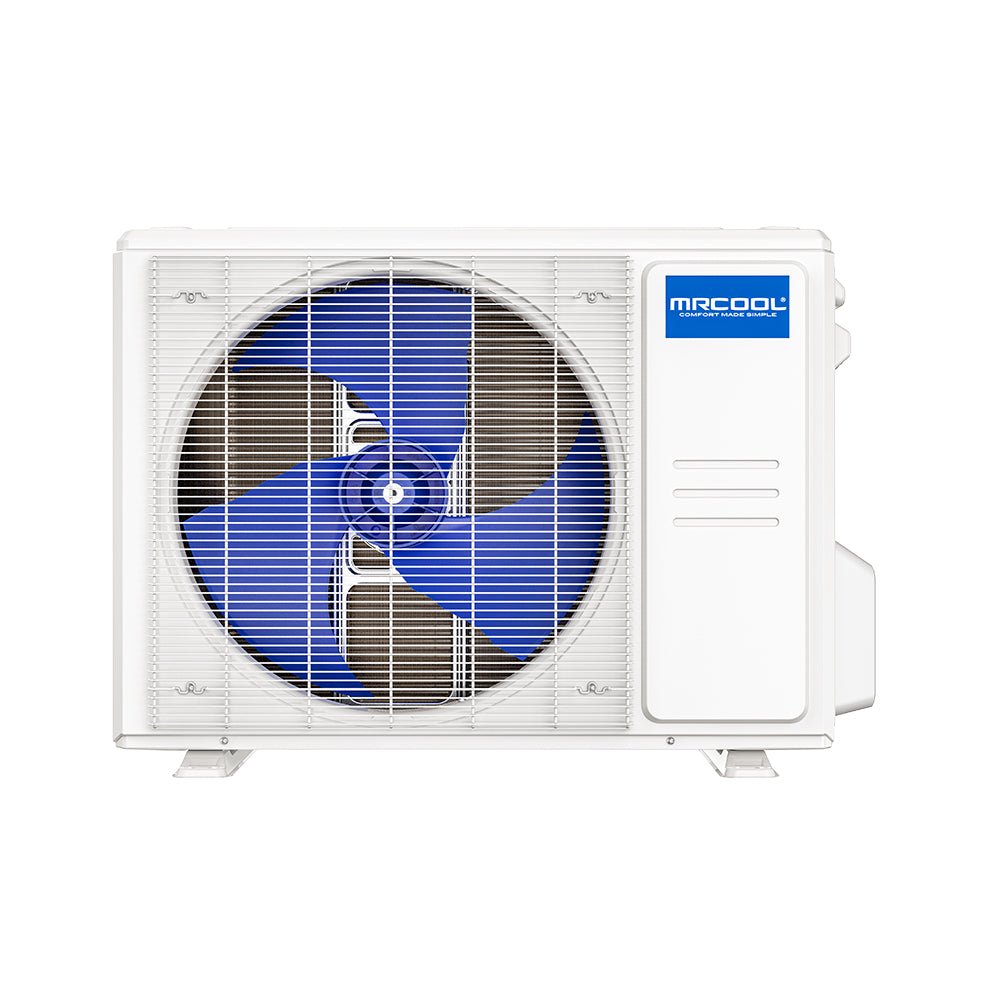

• Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
• Variable-speed DC inverter compressor technology cuts operating costs
• R-410A environmentally friendly refrigerant
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specs

• SEER2	22.5
  EER	12.5
  EER2	12.5
  COP 47	3.36
  HSPF-4	11.5
  HSPF-5	9
  HSPF2-4	9
  HSPF2-5	7
  CFM	305.88/211.76/147.06
  TONNAGE	1
  COOLING CAPACITY (BTU)	12000
  HEATING CAPACITY (BTU)	12000
  VOLTAGE (V)	115
  PHASE	1
  CYCLE	60
  MAX FUSE BREAKER (A)	25
  MIN CIRCUIT AMPACITY (A)	19
  COLOR	White
  COLOR FAMILY	White
  RATED LOAD	0.53
  MAX COVERAGE AREA	Up to 500
  ZONE CAPACITY	1
  REFRIGERANT TYPE	R-410A
  REFRIGERANT VOLUME (OZ)	38.1
  DECIBEL RATING (DBA)	37/31/23.5
  DECIBEL RATING LOW (DBA)	23.5
  DECIBEL RATING HIGH (DBA)	37
  AIR FLOW DIRECTION	4-W
  OSCILLATION	Yes
  INVERTER	Yes
  MIN AMBIENT COOL (F)	-13 ~ 122
  MIN AMBIENT HEAT (F)	-13 ~ 75
  LINE SET LENGTH	25
  MAX LINESET LENGTH (FT)	75
  LIQUID LINE SIZE	1/4
  SUCTION LINE SIZE	1/2
  COMPRESSOR MOTOR TYPE	Rotary
  CONDENSER FAN MOTOR RPM	850/600
  BLOWER MOTOR RPM	1100/850/700
  AUXILIARY HEATER INCLUDED	No
  AUXILIARY HEATER AVAILABLE	No
  FAN ONLY OPTION	Yes
  QUIET MODE	Yes
  AUTO COOL	Yes
  WIFI COMPATIBILITY	Yes
  APP COMPATIBILITY	Yes
  WORKS WITH IOS	Yes
  WORKS WITH ANDROID	Yes
  REMOTE CONTROL INCLUDED	Yes
  UL LISTED	Yes
  ENERGY STAR CERTIFIED	Yes
  AHRI CERTIFIED	Yes
  REGISTERED WARRANTY	Limited Lifetime Compressor
  BASE WARRANTY	5-year Parts/7-year Compressor
  BASE PARTS WARRANTY	5-year Parts
  REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
  BASE COMPRESSOR WARRANTY	7-year Compressor
  HAS BATTERIES	Yes
  CONTAINS ELECTRONICS	Yes
  CONTAINS CHEMICALS	Yes
  CONTAINS AEROSOL	Yes
  CONTAINS COMPRESSED GAS	Yes
  PROPOSITION 65 WARNING	Yes
  RESTRICTED STATES	GU;PR;VI
