• MRCOOL

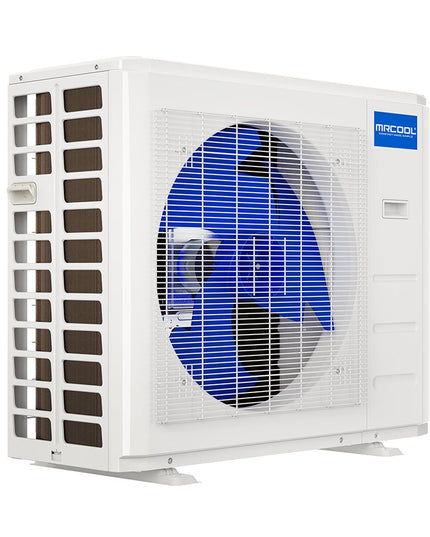

MRCOOL® E Star DIY 4th Gen 24k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz

• Free pickup in our shop(s)

$2,502.00

Quantity Add to cart





This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

• Safe & Secure Checkout

• Warranty 7-Year Compressor / 5-Year Parts View Full Warranty Details

MRCOOL® 4th Generation DIY 24K BTU

20.5 SEER Ductless Heat Pump

Experience unparalleled comfort and efficiency with the MRCOOL® 4th Generation DIY 24K BTU Ductless Heat Pump. This all-in-one heating and cooling system is designed to provide exceptional performance while ensuring ease of installation and operation, making it the perfect choice for homeowners seeking a reliable climate control solution.

Key Features:

High Efficiency: With an impressive 20.5 SEER efficiency rating, this ductless heat pump is Energy Star certified, ensuring you enjoy significant energy savings while maintaining a comfortable indoor environment. It effectively heats and cools areas up to 1,000 sq. ft., making it ideal for larger rooms or open spaces.

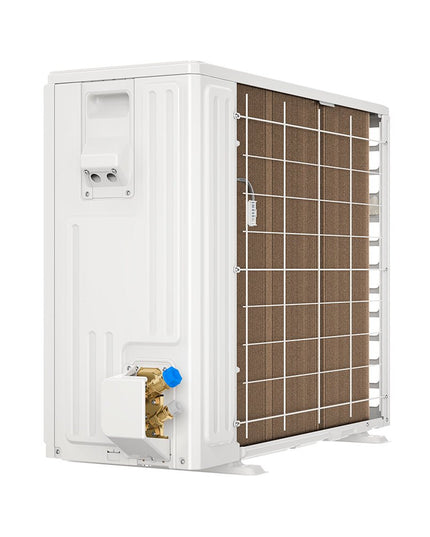

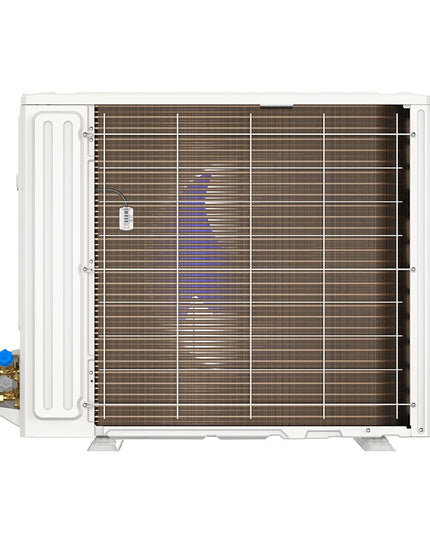

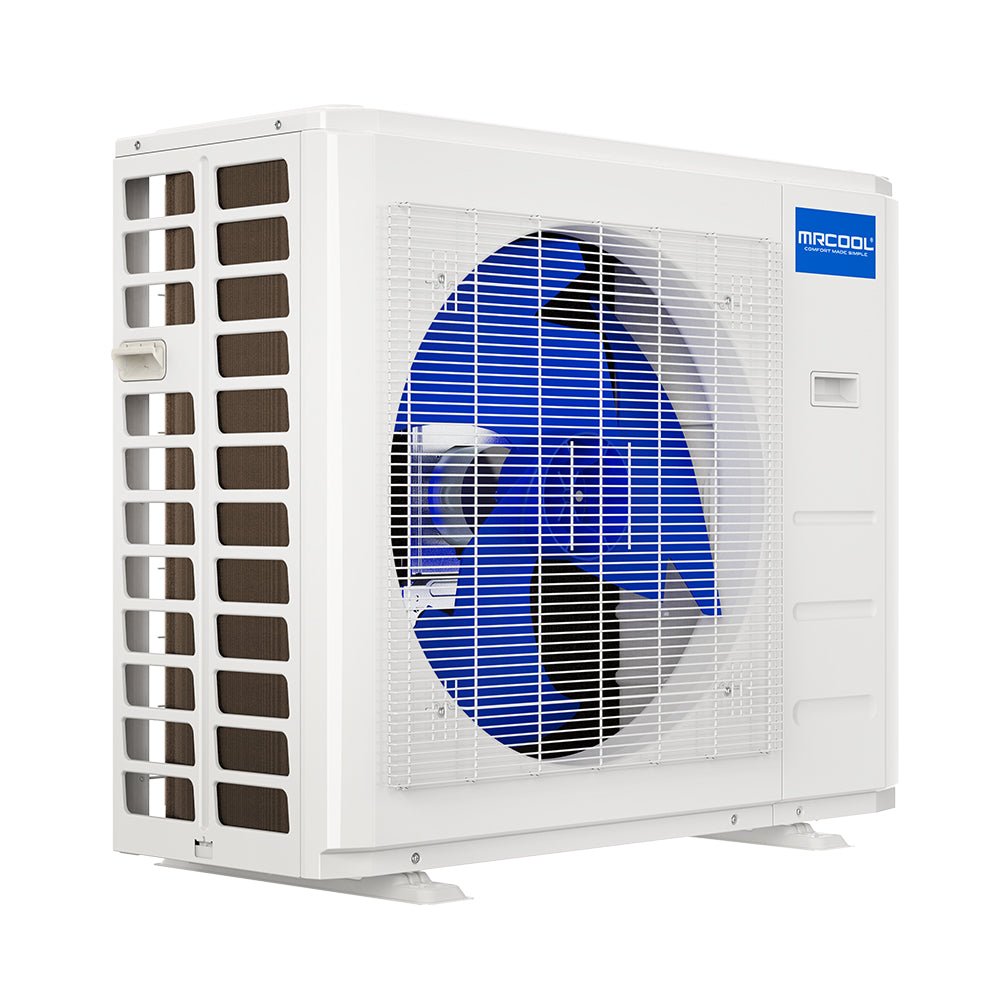

Durable Construction: Built to last, the MRCOOL® heat pump features a corrosion-resistant Gold Fin condenser, enhancing its durability and performance in various weather conditions. This robust construction ensures long-term reliability and peace of mind.

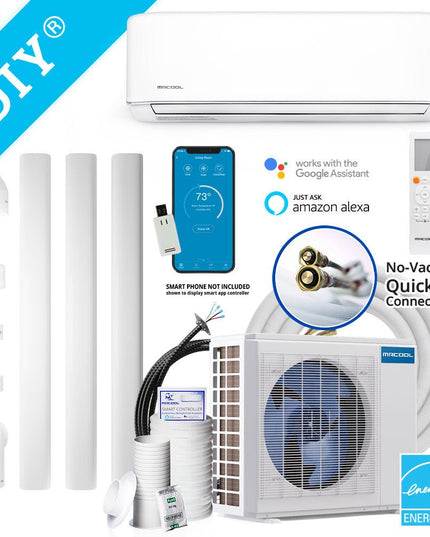

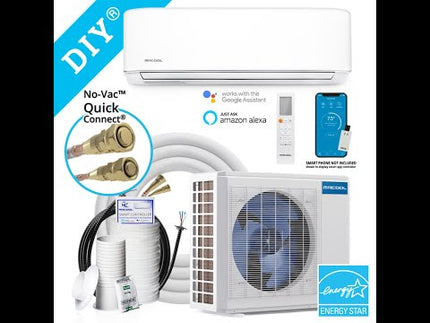

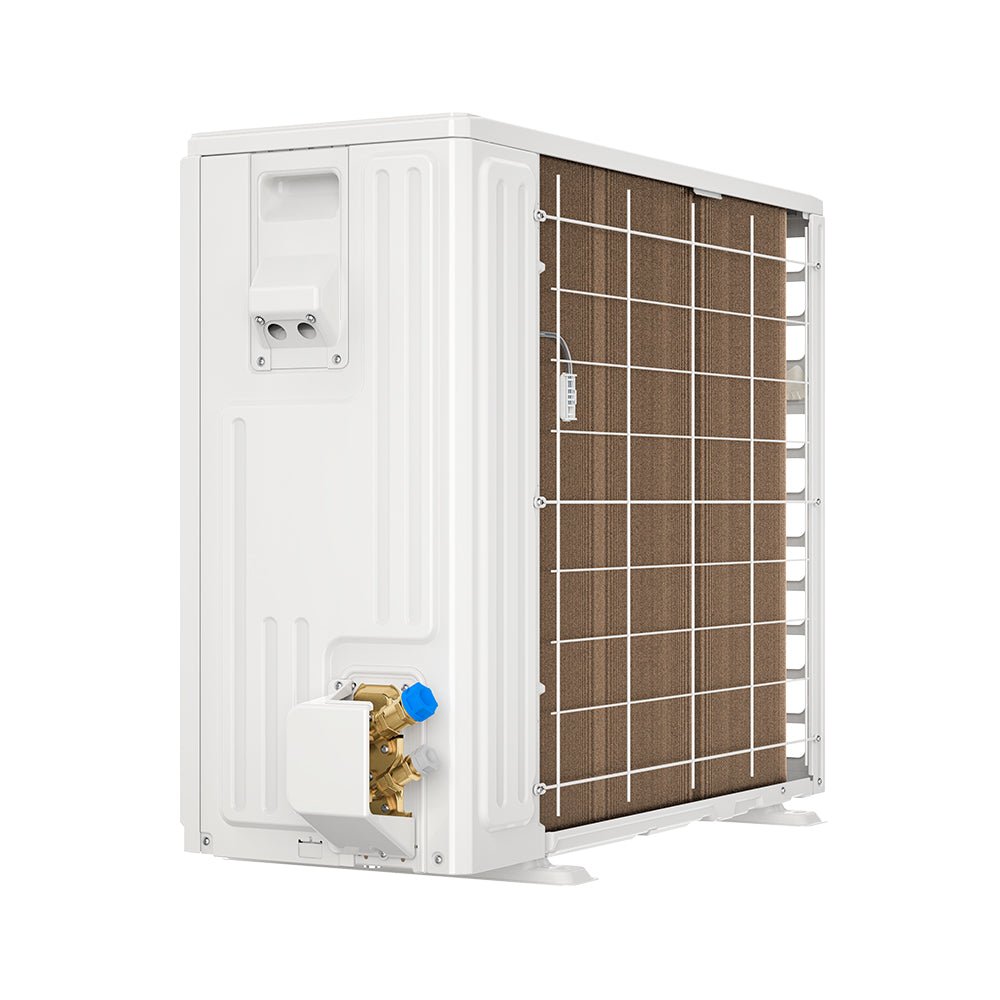

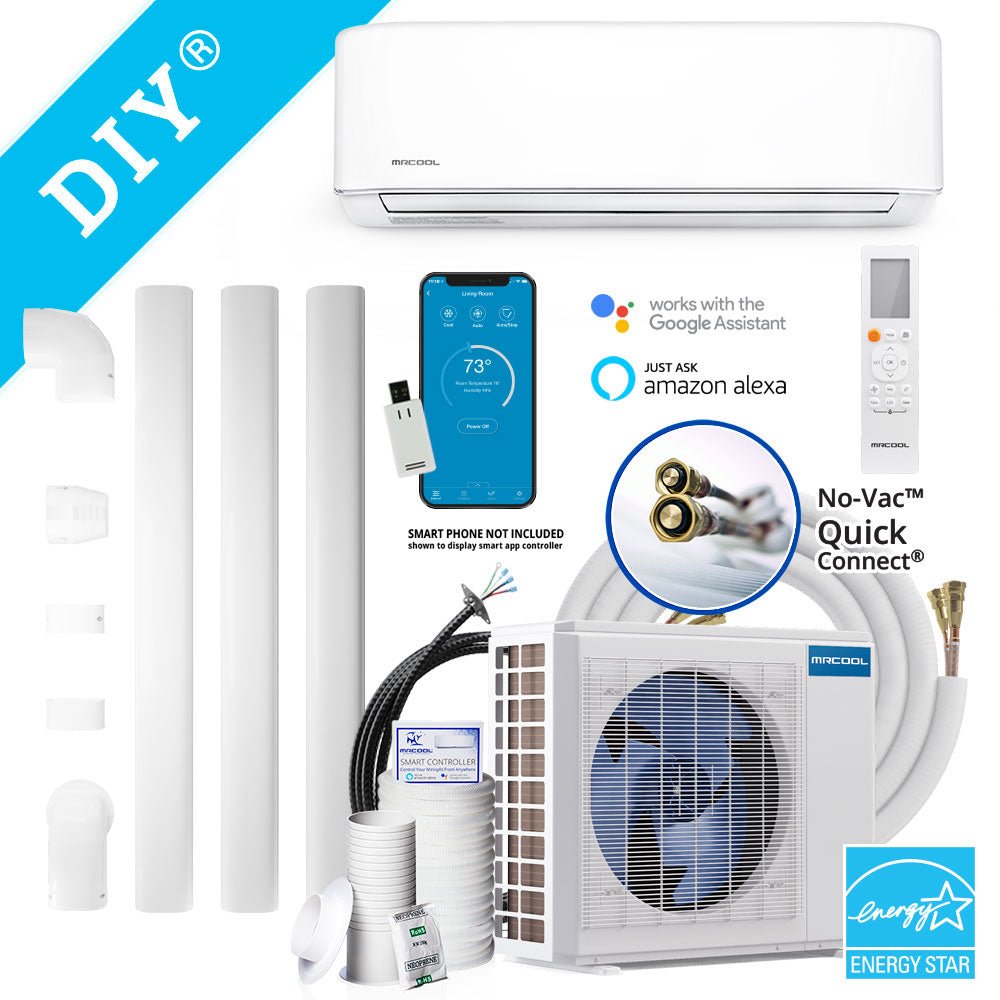

DIY Installation: Designed for the modern homeowner, this system can be installed in just a few hours using simple tools. The patented MRCOOL Pre-Charged Quick-Connect Line Set simplifies the installation process, eliminating the need for specialized equipment or professional assistance.

Versatile Operating Modes: Customize your comfort with up to six operating modes, including AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. This versatility allows you to adjust the system to meet your specific needs throughout the year.

Follow Me Feature: The innovative Follow Me feature uses the temperature reading from the hand-held remote control to adjust the room temperature based on your location, ensuring optimal comfort wherever you are in the space.

Smart Control Options: Take control of your indoor climate from anywhere with the Smart HVAC app, compatible with both Apple and Android devices. This feature allows you to manage your heating and cooling settings remotely, providing convenience and flexibility.

Peace of Mind Warranty: Enjoy the confidence of a limited lifetime compressor warranty, ensuring that your investment is protected and that you can rely on the system for years to come.

Upgrade your home’s comfort with the MRCOOL® 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump. Combining efficiency, durability, and user-friendly installation, this system is the perfect solution for anyone looking to enhance their indoor climate. Order yours today and experience the ultimate in home comfort!

• Up to 20.5 SEER2
• Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
• Variable-speed DC inverter compressor technology cuts operating costs
• R-410A environmentally friendly refrigerant
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specs

SEER	20.5
SEER2	20.5
EER	12.5
EER2	12.5
COP 47	3.15
HSPF-4	10.5
HSPF-5	9
HSPF2-4	9.2
HSPF2-5	7.1
CFM	605.88/505.88/364.71
TONNAGE	2
COOLING CAPACITY (BTU)	23000
HEATING CAPACITY (BTU)	25000
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	35
MIN CIRCUIT AMPACITY (A)	22
COLOR	White
COLOR FAMILY	White
RATED LOAD	0.45
MAX COVERAGE AREA	Up to 1000
ZONE CAPACITY	1
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME (OZ)	81.13
DECIBEL RATING (DBA)	48.5/43.5/33
DECIBEL RATING LOW (DBA)	33
DECIBEL RATING HIGH (DBA)	48.5
AIR FLOW DIRECTION	4-W
OSCILLATION	Yes
INVERTER	Yes
MIN AMBIENT COOL (F)	-13 ~ 122
MIN AMBIENT HEAT (F)	-13 ~ 75
LINE SET LENGTH	25
MAX LINESET LENGTH (FT)	75
LIQUID LINE SIZE	3/8
SUCTION LINE SIZE	5/8
COMPRESSOR MOTOR TYPE	Twin-Rotary
CONDENSER FAN MOTOR RPM	850/750/700
BLOWER MOTOR RPM	1200/1000/700
AUXILIARY HEATER INCLUDED	No
AUXILIARY HEATER AVAILABLE	No
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
UL LISTED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
