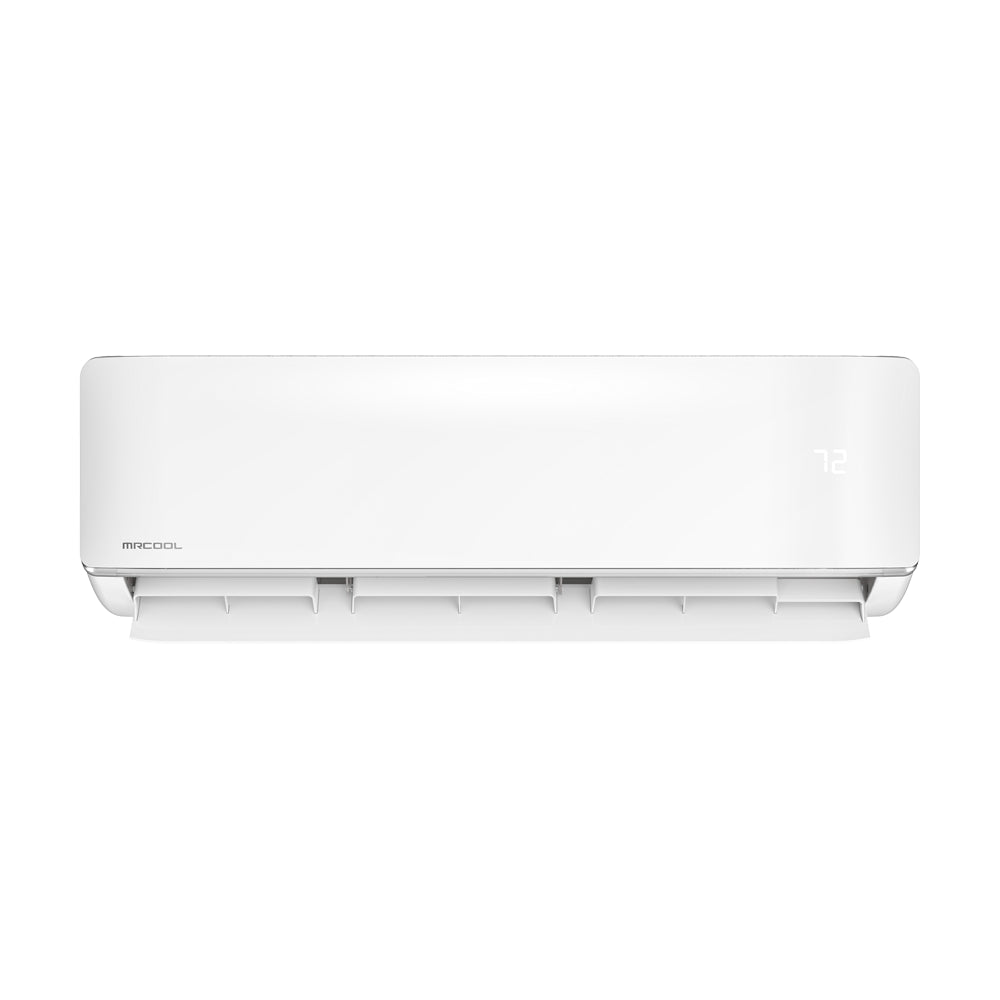

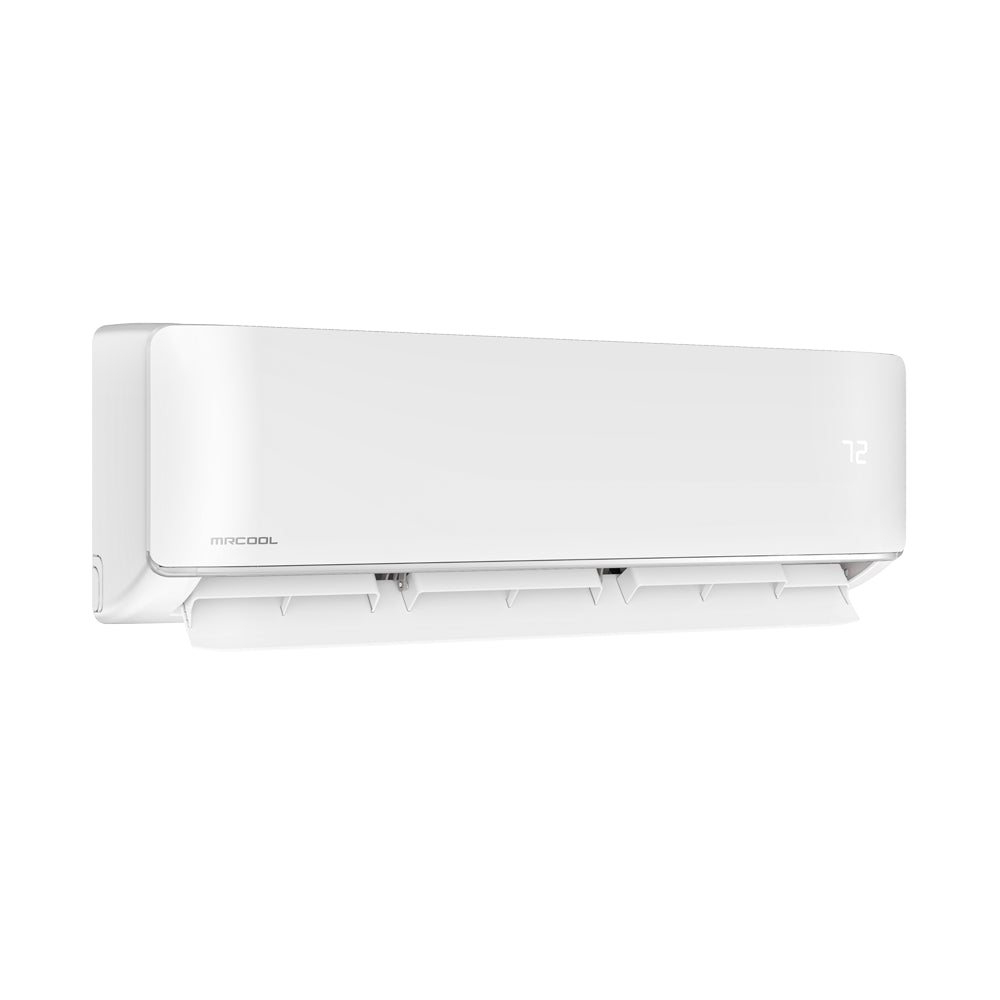

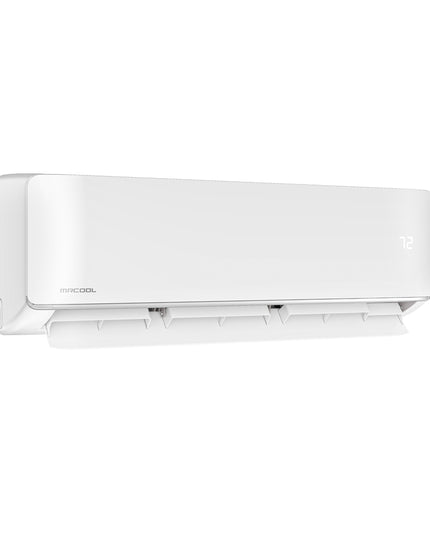

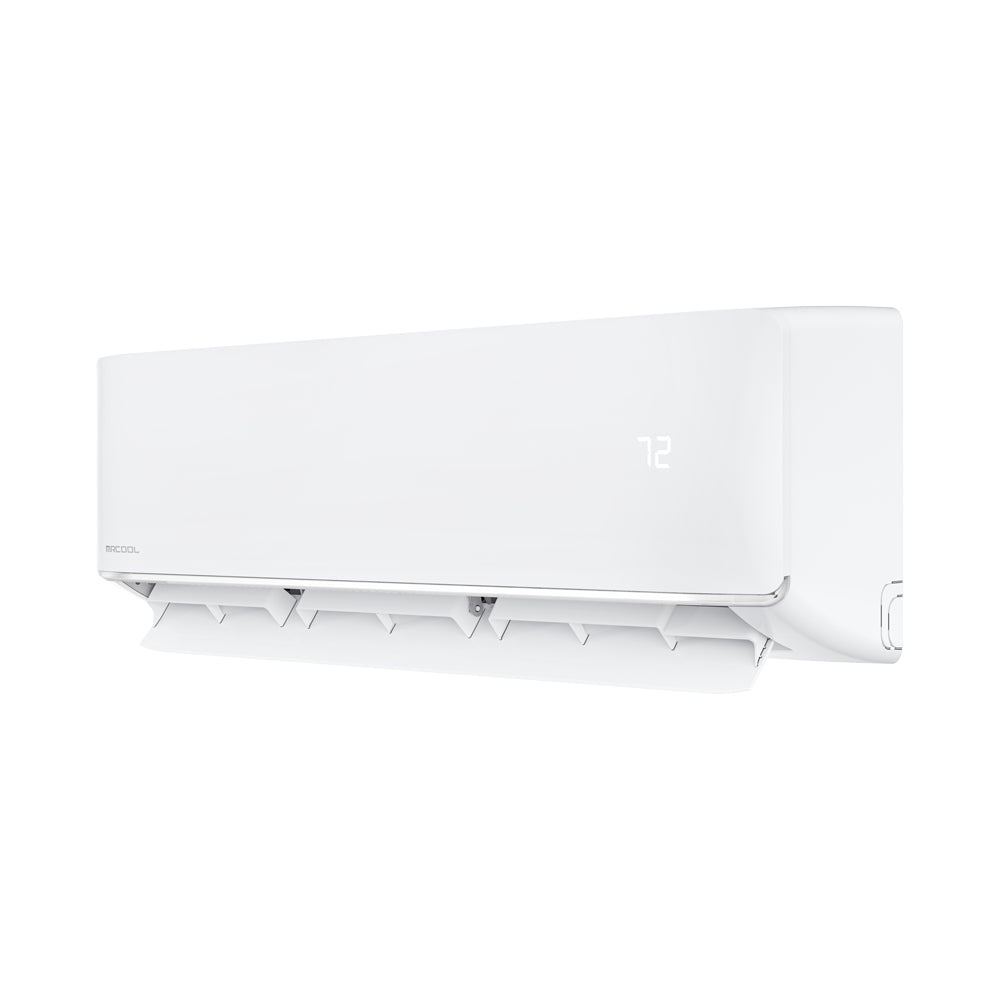

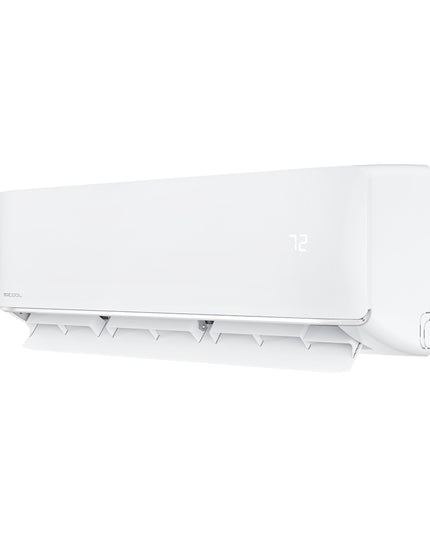

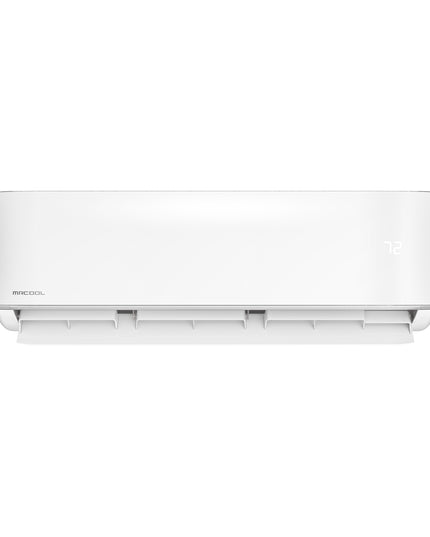

MRCOOL® DIY 4th Gen 24k BTU Ductless Mini-Split Air Handler 208-230V/60Hz
-
-
-
-
-
Crafted for Calm
- MRCOOL
MRCOOL® DIY 4th Gen 24k BTU Ductless Mini-Split Air Handler 208-230V/60Hz
$824.00
- Safe & Secure Checkout
- Warranty 7-Year Compressor / 5-Year Parts View Full Warranty Details
SKU: DIY-24-HP-WMAH-230C25
Barcode: 00810063868536
MRCOOL® 4th Generation DIY 24K BTU Ductless Wall Mounted Air Handler – Powerful & Energy-Efficient Comfort
The MRCOOL® 4th Generation DIY 24K BTU Ductless Wall Mounted Air Handler is a high-performance, energy-efficient component designed to seamlessly integrate with your MRCOOL DIY system. Offering up to a 20.5 SEER efficiency rating, this air handler efficiently heats and cools spaces up to 1,000 sq. ft., making it a perfect solution for large rooms, apartments, or offices.
- Powerful Performance
- With a 24,000 BTU capacity, this air handler delivers reliable heating and cooling for year-round comfort.
- Multi-Mode Operation
- Equipped with multiple modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP, ensuring customizable comfort.
- Smart Home Integration
- Control your air handler from anywhere using the Smart HVAC app on your Apple or Android smartphone.
- Compact & Easy Installation
- The lightweight design and included wall-mounting plate make installation simple and hassle-free.
- DIY-Friendly Setup

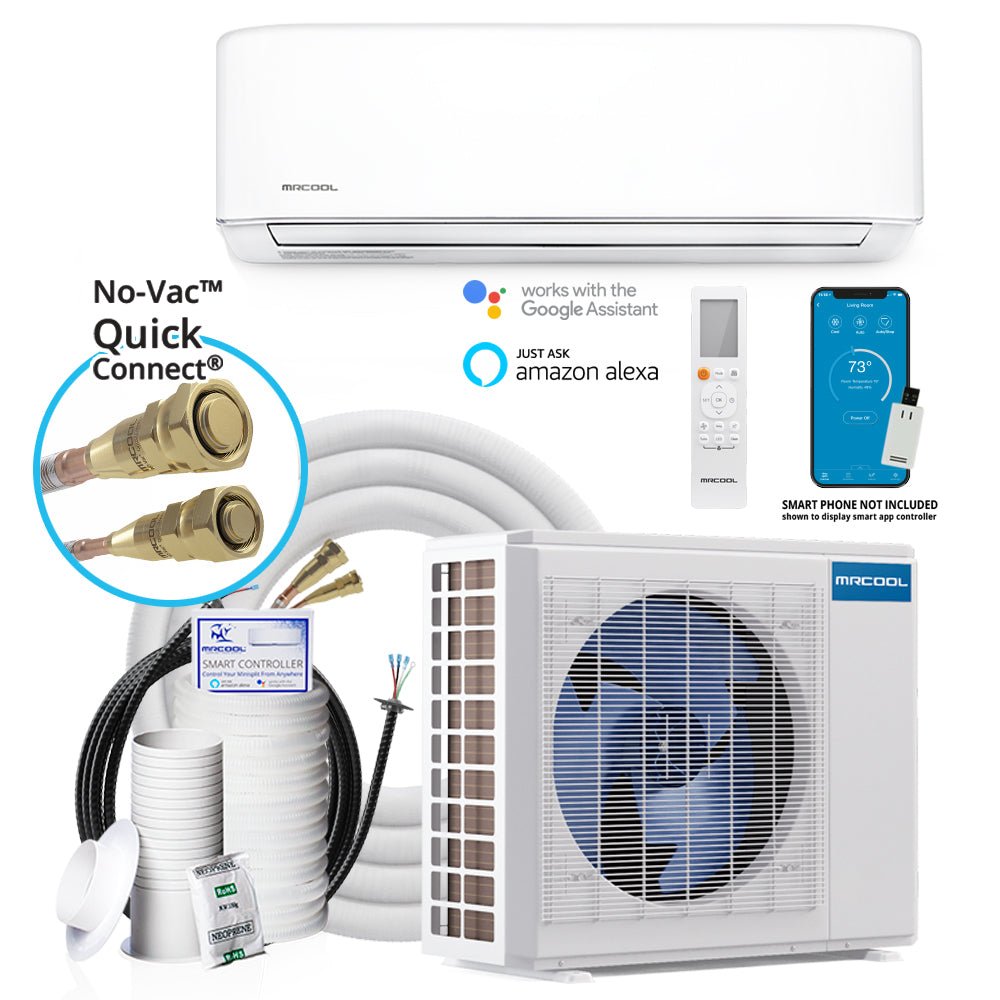

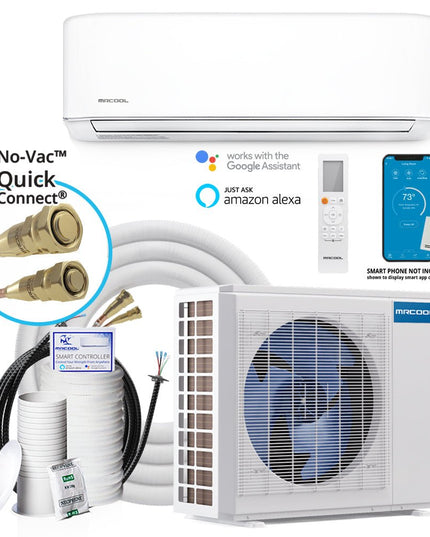

- Designed to work with the MRCOOL Pre-Charged Quick Connect Line Set, allowing fast, tool-free connection without needing a certified technician.
- No Vacuuming Required
- The pre-charged R-410A refrigerant line set eliminates the need for vacuuming, making installation even easier.
The MRCOOL 4th Generation DIY 24K BTU Ductless Wall Mounted Air Handler delivers top-tier efficiency, powerful performance, and effortless installation, making it an ideal choice for homeowners looking for a DIY-friendly HVAC solution.
Key Features
| SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection |
| Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty |
| Compatible with Amazon Alexa and Google Assistant |
| Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements |
Specs
| COOLING CAPACITY (BTU) | 23000 |
| HEATING CAPACITY (BTU) | 25000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MOUNT TYPE | Wall |
| COLOR | White |
| COLOR FAMILY | White |
| MAX COVERAGE AREA | Up to 1000 |
| REFRIGERANT TYPE | R-410A |
| DECIBEL RATING (DBA) | 48.5/43.5/33 |
| DECIBEL RATING LOW (DBA) | 33 |
| DECIBEL RATING HIGH (DBA) | 48.5 |
| INVERTER | Yes |
| MAX LINESET LENGTH (FT) | 98.42 |
| LIQUID LINE SIZE | 8-Mar |
| SUCTION LINE SIZE | 8-May |
| BLOWER MOTOR RPM | 1200/1000/700 |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Limited Lifetime Compressor |
| BASE WARRANTY | 5-year Parts/7-year Compressor |
| BASE PARTS WARRANTY | 5-year Parts |
| REGISTERED COMPRESSOR WARRANTY | Limited Lifetime Compressor |
| BASE COMPRESSOR WARRANTY | 7-year Compressor |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU;PR;VI |
| NET DEPTH (IN) | 8.9 |
| NET HEIGHT (IN) | 13.19 |
| NET WIDTH (IN) | 42.52 |
| NET WEIGHT (LBS) | 35.27 |
| GROSS DEPTH (IN) | 19.57 |
| GROSS HEIGHT (IN) | 17.32 |
| GROSS WIDTH (IN) | 49.09 |
| GROSS WEIGHT (LBS) | 60 |
