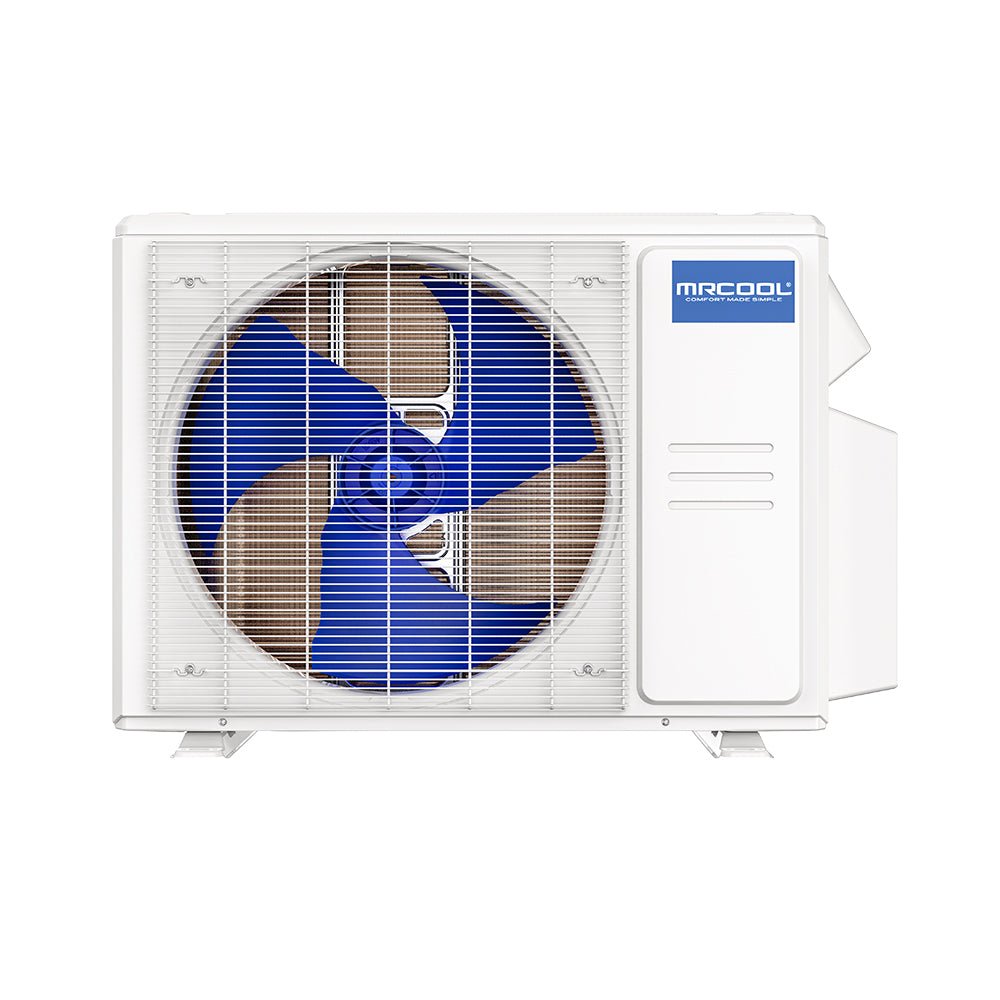

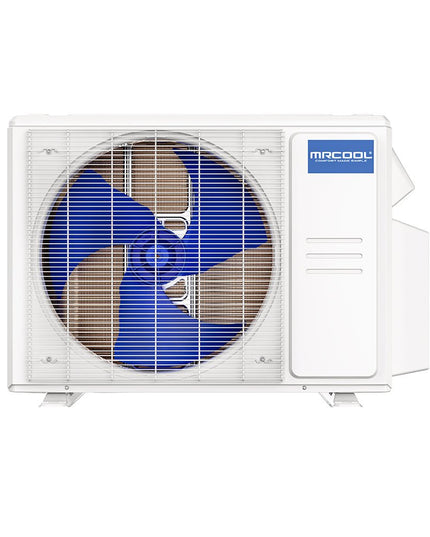

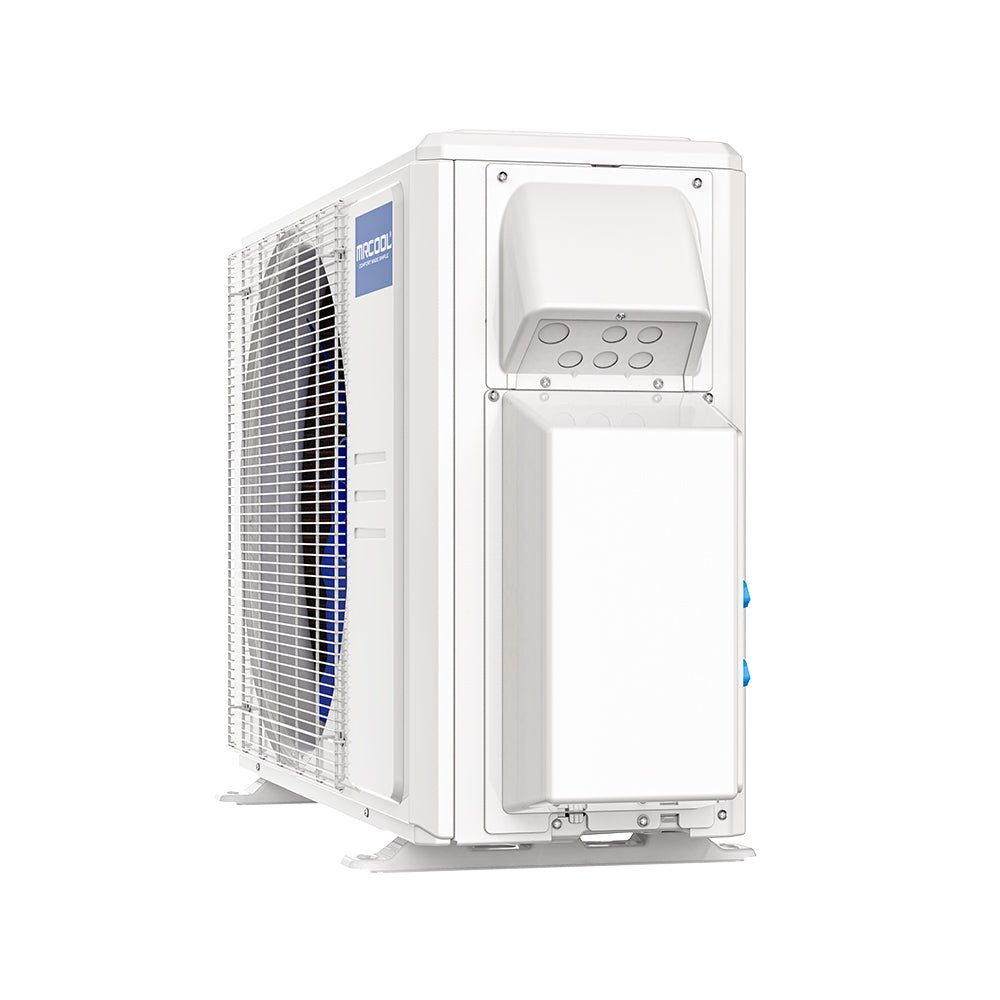

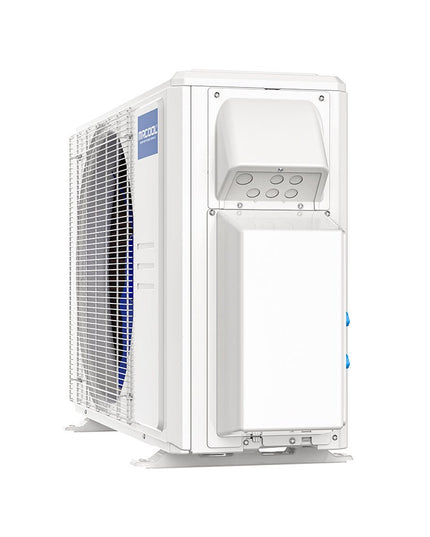

MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser
-
-
-
-
-
-
-
Crafted for Calm
- MRCOOL
MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser
$2,107.00
- Safe & Secure Checkout
- Warranty 7-Year Compressor / 5-Year Parts View Full Warranty Details
SKU: DIY-MULTI4-36HP230C
Barcode: 00810063869519
4th Generation MRCOOL® DIY 36K BTU 4-Zone Ductless Heat Pump – Multi-Zone Comfort, Maximum Efficiency, and DIY Installation
Upgrade your home’s heating and cooling with the MRCOOL® DIY 36K BTU 4-Zone Ductless Heat Pump, an advanced, energy-efficient solution designed for ultimate comfort and easy installation. With the ability to support up to four zones, a 21.5 SEER efficiency rating, and reliable heating performance down to -13°F, this system is perfect for homeowners looking for cost-effective, year-round climate control.
- High Efficiency – Up to 21.5 SEER Rating
- Reduce energy costs with an impressive 21.5 SEER rating, delivering powerful heating and cooling while maximizing energy savings.
- All-Season Comfort – Works in Extreme Temperatures
- Designed for year-round performance, this system efficiently heats even when temperatures drop to -13°F, ensuring warmth during the coldest months.
- True DIY Installation – No Professional Help Needed

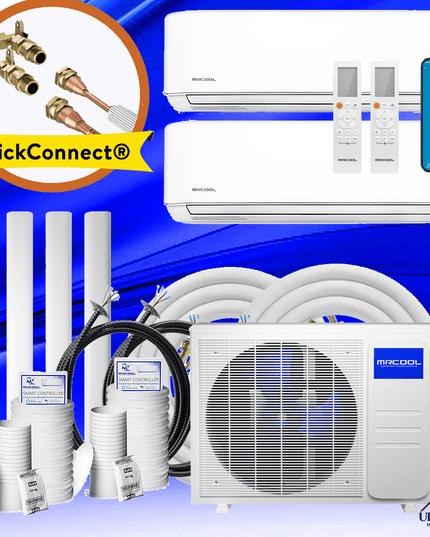

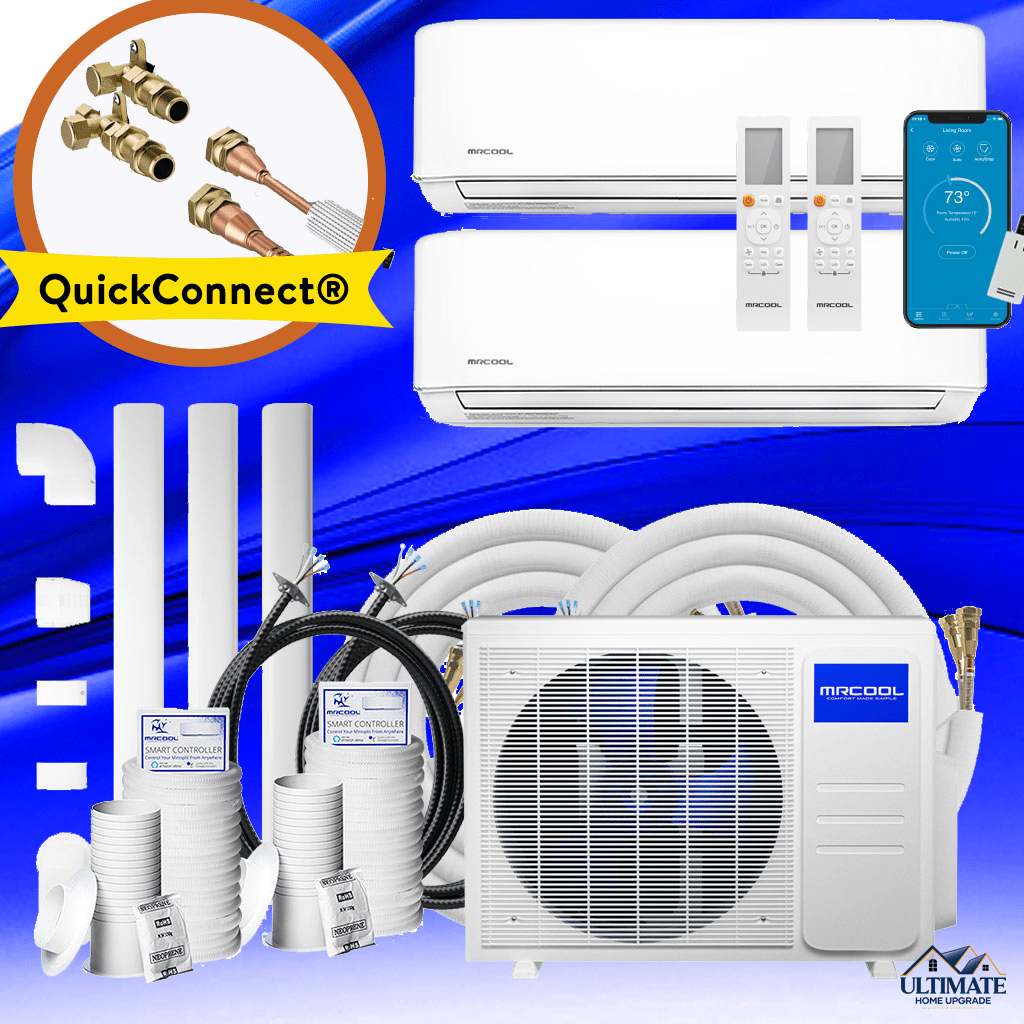

- Unlike traditional HVAC systems, this unit is specifically designed for DIY installation. With MRCOOL’s patented Pre-Charged Quick Connect® Line Sets, homeowners can set up their system without specialized tools, vacuum pumps, or costly technician fees.

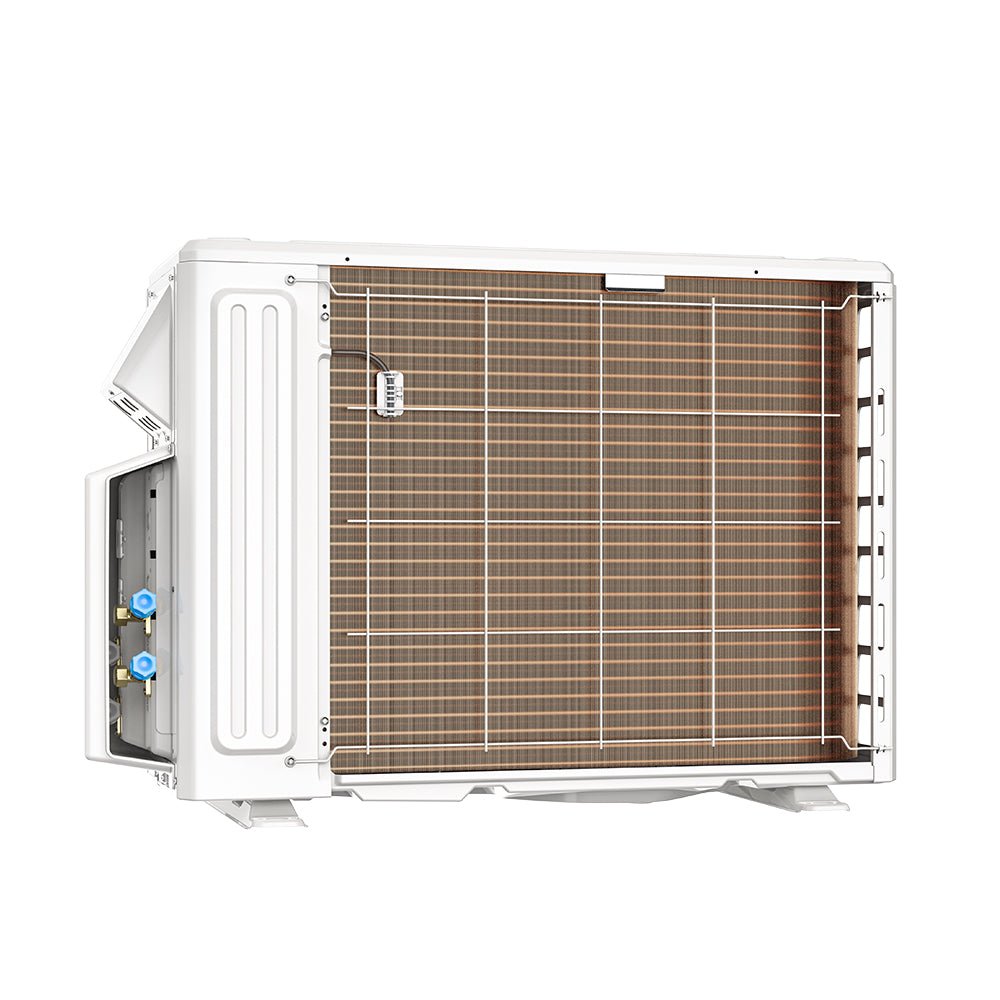

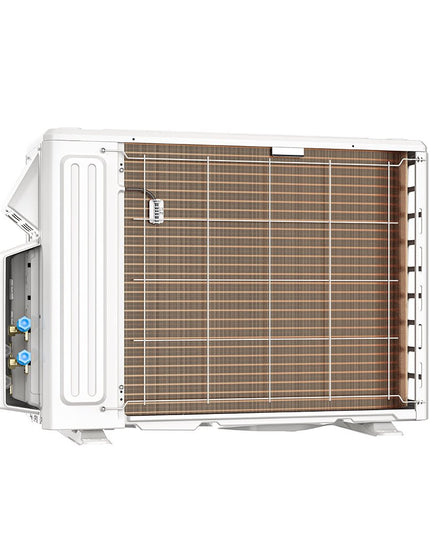

- Gold Fin® Condenser – Corrosion-Resistant Durability
- Built to withstand harsh weather conditions, the Gold Fin® Condenser provides superior corrosion resistance, protecting your unit from rust, salt, and environmental damage.
- 4-Zone Climate Control – Custom Comfort for Every Room
- Enjoy personalized heating and cooling in up to four separate zones. This multi-zone system allows independent temperature control for different rooms, enhancing efficiency and comfort.
- Limited Lifetime Compressor Warranty – Industry-Leading Protection
- MRCOOL is the only manufacturer offering a limited lifetime compressor warranty, ensuring long-lasting performance and reliability.
- Smart Home Integration – Wi-Fi & App Control
- Easily control your climate system from anywhere using the MRCOOL SmartHVAC App or voice commands with Google Assistant and Amazon Alexa.
Why Choose the MRCOOL DIY 36K BTU 4-Zone Heat Pump?
-
DIY-friendly installation – No professional HVAC help needed
-
21.5 SEER rating – Energy-efficient heating and cooling
-
Pre-charged refrigerant – No vacuuming required
-
Weather-resistant Gold Fin® protection – Long-lasting durability
-
Smart home compatible – Wi-Fi, Alexa & Google Assistant control
- Multi-zone flexibility – Independently control up to four rooms
The MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best multi-zone HVAC solutions on the market. Designed for maximum efficiency, durability, and ease of installation, this system provides custom comfort for every room while saving on energy and installation costs. Upgrade your home’s heating and cooling today!
Key Features
| Up to 21.5 SEER |
| Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion |
| Energy Efficient DC Inverter |
| R-410A environmentally friendly refrigerant |
| Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty |
| Line sizes 1/4”, 1/2” & 3/8”, 5/8” |
| Multi-Zone Condenser includes adapter for the 24K Air Handler (3/8", 5/8" Line Size) - see liquid line and suction line size columns |
Specs
| SEER | 21.5 |
| SEER2 | 21.5 |
| EER | 10.5 |
| EER2 | 10.5 |
| HSPF-4 | 11 |
| HSPF-5 | 8.5 |
| CFM | 2147.06 |
| COOLING CAPACITY (BTU) | 36000 |
| HEATING CAPACITY (BTU) | 36000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 45 |
| MIN CIRCUIT AMPACITY (A) | 27 |
| COLOR | White |
| COLOR FAMILY | White |
| ZONE CAPACITY | Up to 4 |
| REFRIGERANT TYPE | R-410A |
| REFRIGERANT VOLUME (OZ) | 134.04 |
| DECIBEL RATING (DBA) | 65 |
| INVERTER | Yes |
| MIN AMBIENT COOL (F) | 5 ~ 122 |
| MIN AMBIENT HEAT (F) | -13 ~ 75.2 |
| MAX LINESET LENGTH (FT) | 221 TOTAL |
| LIQUID LINE SIZE | 1/4 (3/8 w/ adapter) |
| SUCTION LINE SIZE | 1/2 (5/8 w/ adapter) |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR RPM | 1000/900/750 |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REGISTERED WARRANTY | Limited Lifetime Compressor |
| BASE WARRANTY | 5-year Parts/7-year Compressor |
| BASE PARTS WARRANTY | 5-year Parts |
| REGISTERED COMPRESSOR WARRANTY | Limited Lifetime Compressor |
| BASE COMPRESSOR WARRANTY | 7-year Compressor |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 170.42 |
| GROSS DEPTH (IN) | 19.88 |
| GROSS HEIGHT (IN) | 35.04 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 188 |
