• MRCOOL

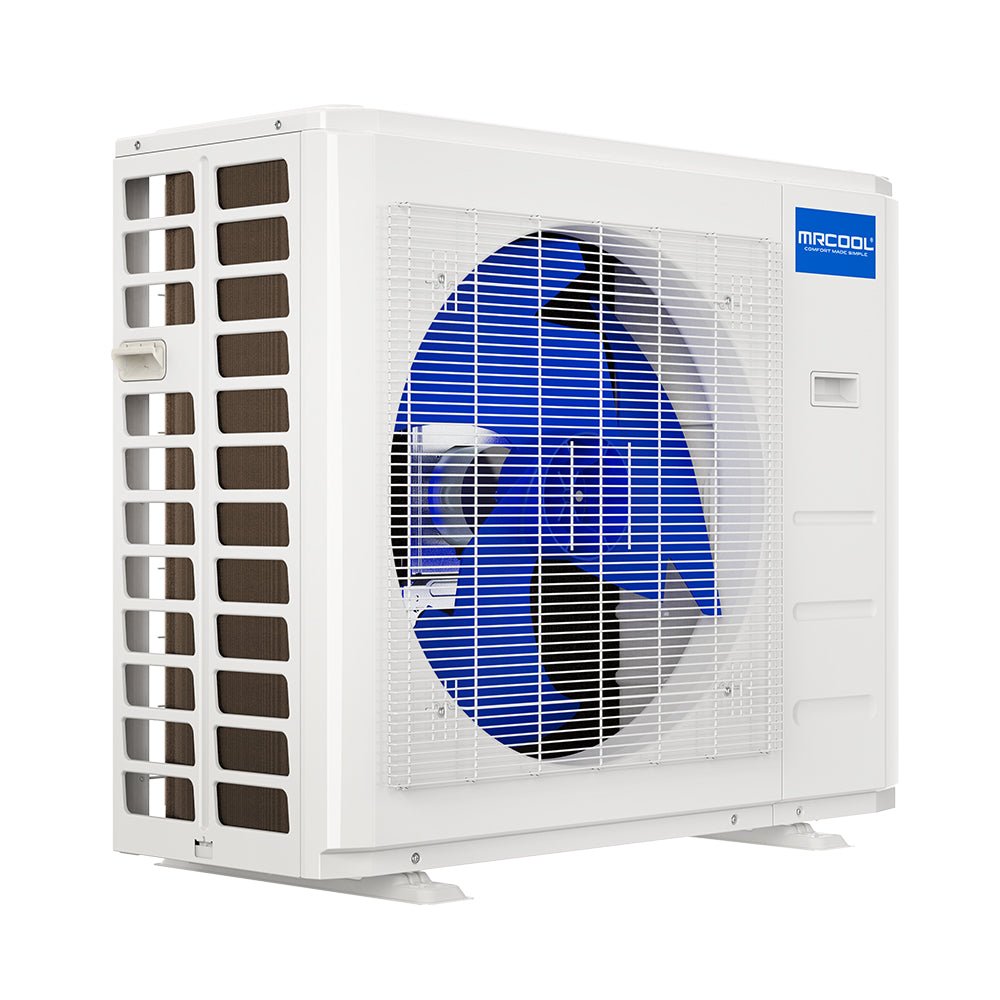

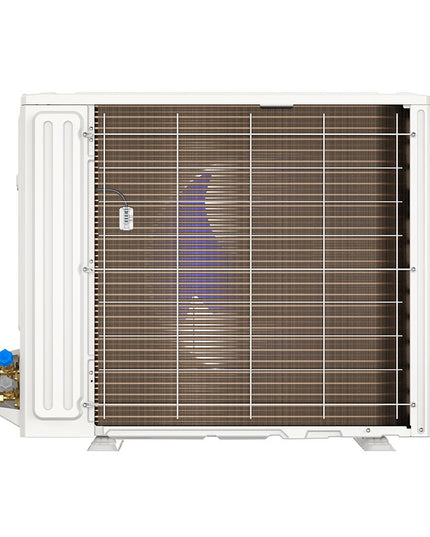

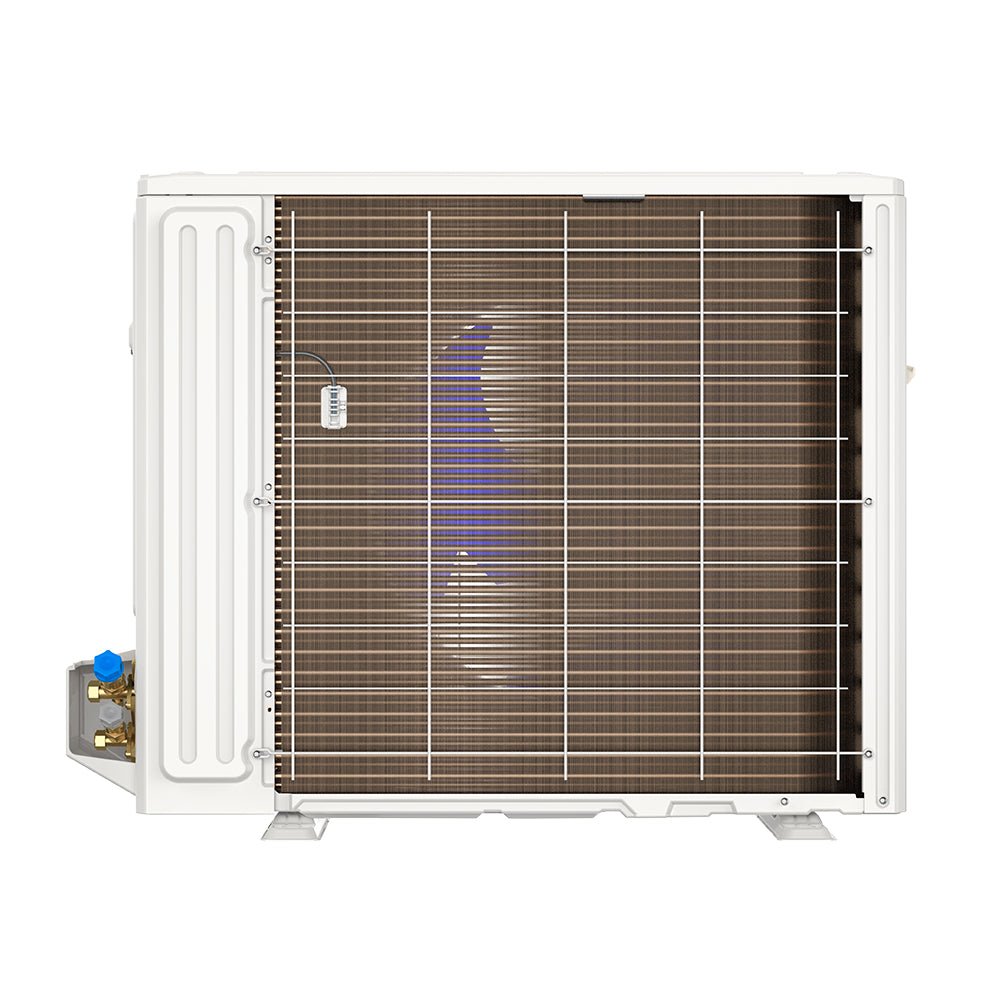

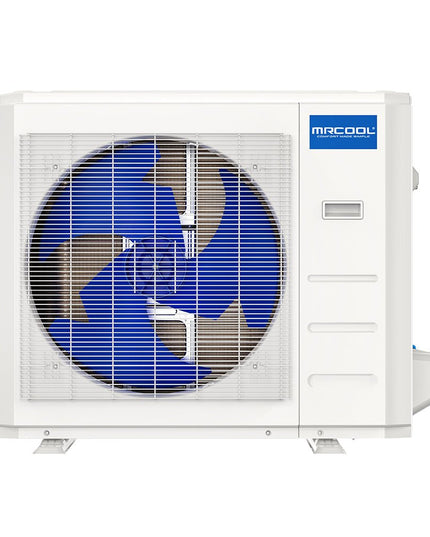

MRCOOL® DIY 4th Gen 36k BTU Ductless Mini-Split Heat Pump Complete System - 208-230V/60Hz

• Free pickup in our shop(s)

$2,888.00

Quantity Add to cart





This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

• Safe & Secure Checkout

• Warranty 7-Year Compressor / 5-Year Parts View Full Warranty Details

MRCOOL® 4th Generation DIY 36K BTU

18 SEER Ductless Heat Pump

Elevate your home comfort with the MRCOOL® 4th Generation DIY 36K BTU Ductless Heat Pump, one of the most powerful single-zone systems in the DIY Series. Designed to efficiently heat and cool spaces up to 1,500 sq. ft., this advanced system combines exceptional performance with user-friendly installation, making it the perfect choice for homeowners seeking a reliable climate control solution.

Key Features:

Powerful Performance: With a robust 36,000 BTU capacity, this ductless heat pump delivers outstanding heating and cooling capabilities, ensuring your home remains comfortable year-round, regardless of the weather outside.

Energy Efficiency: Achieving an impressive 18 SEER efficiency rating, the MRCOOL® 4th Generation system is designed to minimize energy consumption while maximizing comfort. This efficiency not only helps reduce your carbon footprint but also lowers your energy bills.

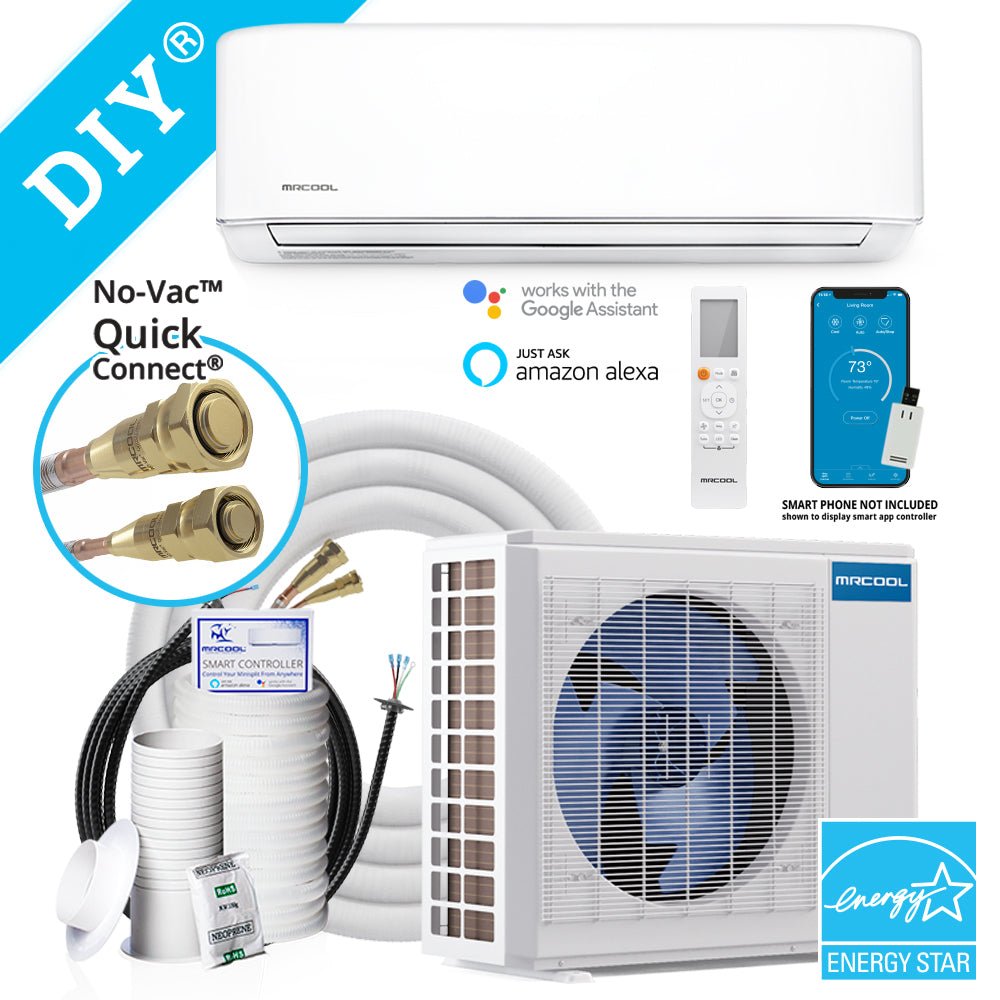

Easy DIY Installation: The patented MRCOOL Pre-Charged Quick-Connect Line Set simplifies the installation process, allowing homeowners to set up the system with just a few hand tools. Connecting the refrigerant piping is as easy as turning a few wrenches, eliminating the need for professional installation.

Versatile Operating Modes: Customize your comfort with up to six operational modes, including AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. This versatility allows you to adjust the system to meet your specific needs throughout the year.

Follow Me Function: The innovative Follow Me feature continuously monitors the temperature from the handheld remote control, automatically adjusting the system to maintain the perfect climate based on your location within the room.

Smart Control Options: Control your heating and cooling settings from anywhere using the Smart HVAC app, compatible with both Apple and Android devices. This feature provides convenience and flexibility, allowing you to manage your indoor climate remotely.

Peace of Mind Warranty: Enjoy the confidence of a limited lifetime compressor warranty, ensuring that your investment is protected and that you can rely on the system for years to come.

Upgrade your home’s heating and cooling capabilities with the MRCOOL® 4th Generation DIY 36K BTU, 18 SEER Ductless Heat Pump. Combining powerful performance, energy efficiency, and easy installation, this system is the ideal solution for homeowners looking to enhance their indoor comfort. Order yours today and experience the ultimate in home climate control!

• Up to 18.3 SEER2

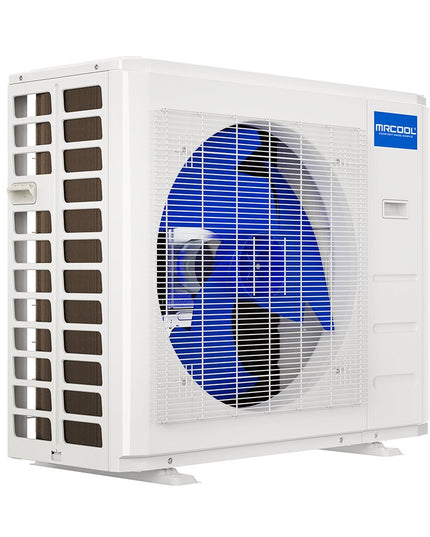

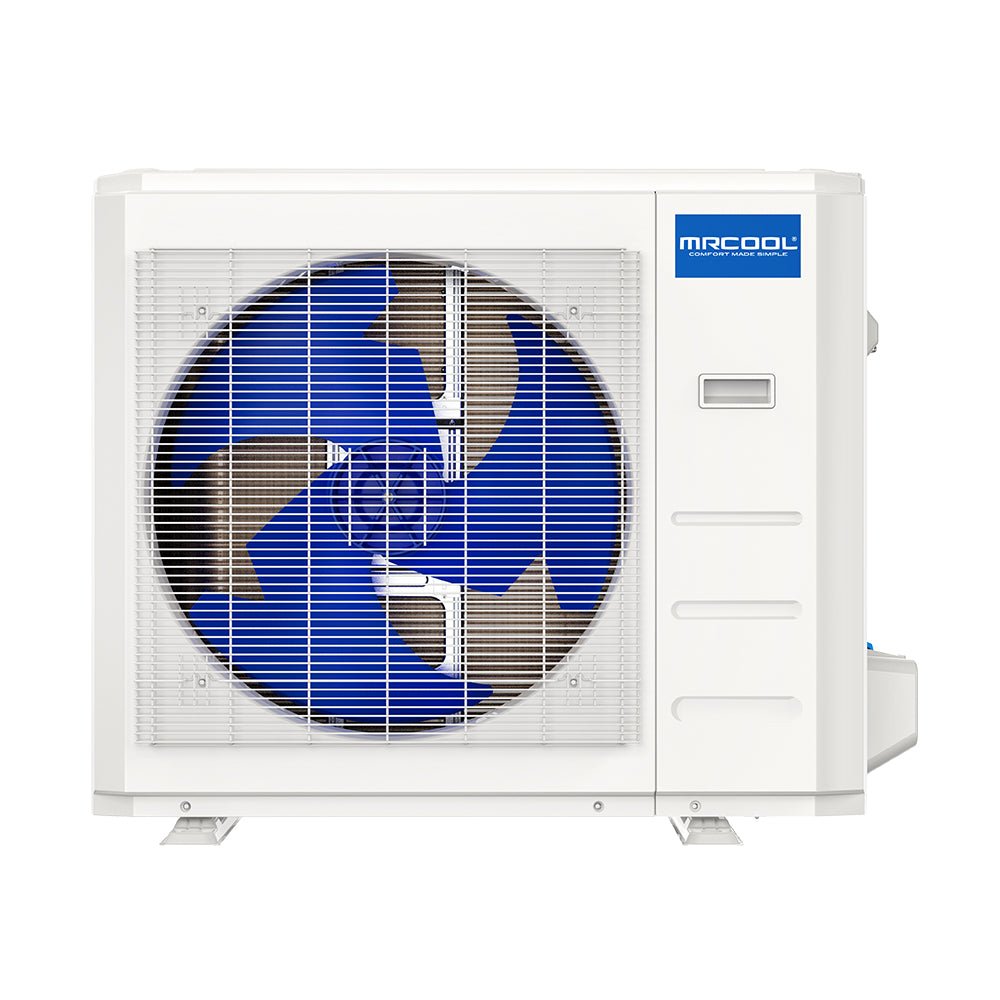

• Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
• Variable-speed DC inverter compressor technology cuts operating costs
• R-410A environmentally friendly refrigerant
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specs

SEER	18
SEER2	18.3
EER	8.7
EER2	8.7
COP 47	2.81
HSPF-4	12
HSPF-5	9
HSPF2-4	8
HSPF2-5	6.4
CFM	673.53/502.94/367.65
TONNAGE	3
COOLING CAPACITY (BTU)	36000
HEATING CAPACITY (BTU)	36000
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	35
MIN CIRCUIT AMPACITY (A)	28
COLOR	White
COLOR FAMILY	White
RATED LOAD	0.5
MAX COVERAGE AREA	Up to 1500
ZONE CAPACITY	1
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME (OZ)	111.1
DECIBEL RATING (DBA)	52/45/34
DECIBEL RATING LOW (DBA)	34
DECIBEL RATING HIGH (DBA)	52
AIR FLOW DIRECTION	4-W
OSCILLATION	Yes
INVERTER	Yes
MIN AMBIENT COOL (F)	5 ~ 122
MIN AMBIENT HEAT (F)	5 ~ 75
LINE SET LENGTH	25
MAX LINESET LENGTH (FT)	75
LIQUID LINE SIZE	3/8
SUCTION LINE SIZE	5/8
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	950/250
BLOWER MOTOR RPM	1200/950/750
AUXILIARY HEATER INCLUDED	No
AUXILIARY HEATER AVAILABLE	No
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
UL LISTED	Yes
ENERGY STAR CERTIFIED	No
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
