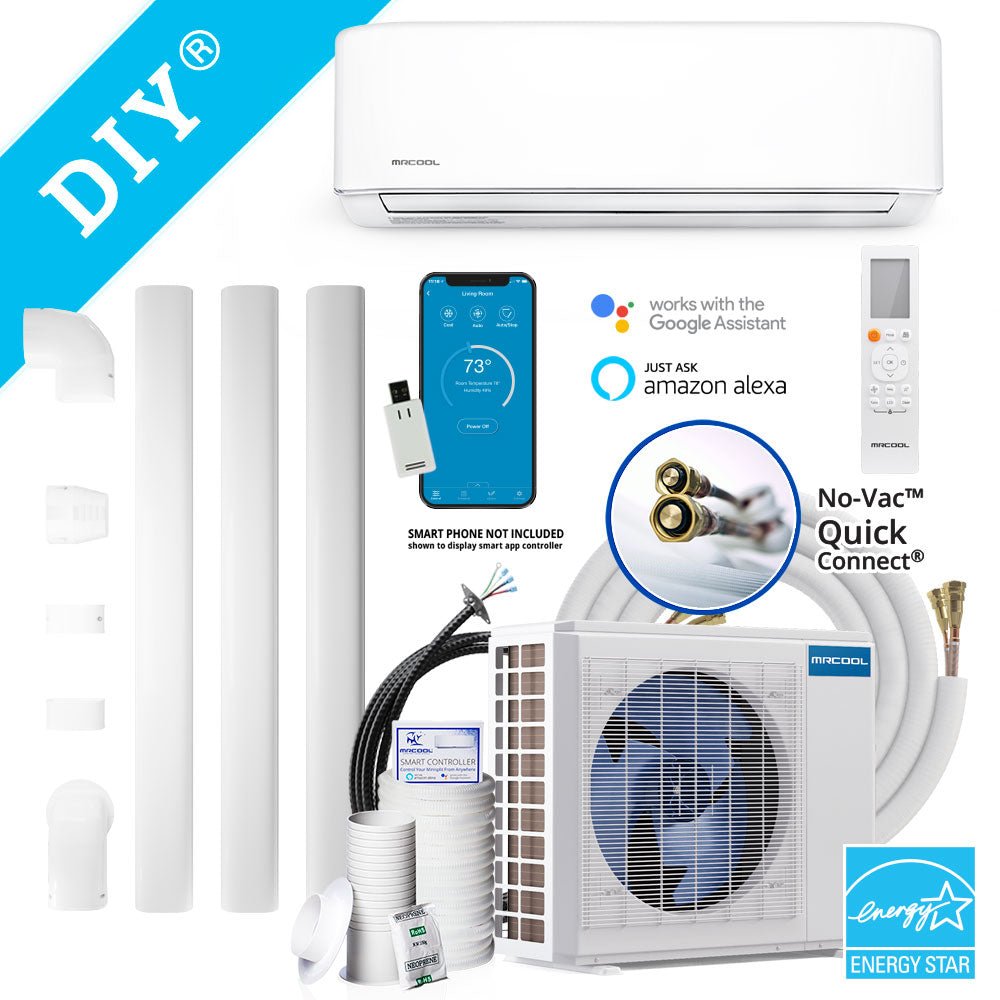

DIY 4th Generation E Star 18k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz
-
-
-
-
-
-
-
-
-
Crafted for Calm
- MRCOOL
DIY 4th Generation E Star 18k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz
$2,156.00
- Safe & Secure Checkout
- Warranty 7-Year Compressor / 5-Year Parts View Full Warranty Details
SKU: DIY-18-HP-WM-230C25
Barcode: 00810512033430
MRCOOL® E Star DIY 3rd Gen 18k BTU
20 SEER Ductless Mini-Split Heat Pump Condenser - 208-230V/60Hz
Elevate your home comfort with the MRCOOL® E Star DIY 3rd Generation 18k BTU Ductless Mini-Split Heat Pump Condenser. Engineered for efficiency and convenience, this advanced heating and cooling solution is perfect for homeowners looking to enhance their living spaces without the hassle of traditional HVAC systems.
Key Features:
Powerful Performance: With an impressive 18,000 BTU capacity, this ductless mini-split heat pump is designed to efficiently heat and cool areas up to 750 square feet, making it ideal for larger rooms, open-concept spaces, or even small apartments.
Exceptional Energy Efficiency: Boasting a remarkable 20 SEER rating, the MRCOOL® E Star DIY system is Energy Star certified, ensuring you enjoy significant energy savings while maintaining a comfortable indoor climate.
User-Friendly Installation: The MRCOOL DIY E Star Series is designed for easy installation, allowing you to set it up without the need for specialized tools or expensive equipment. This flexibility means you can install the system virtually anywhere in your home.
Enhanced Smart Technology: Control your heating and cooling settings effortlessly with the SmartHVAC app, compatible with both Amazon Alexa and Google Assistant. Whether you're at home or away, you can manage your system using your Apple or Android smart device with an internet connection.
Versatile Applications: This ductless mini-split system is perfect for a variety of applications, including bedrooms, living rooms, home offices, and more. Its sleek design and quiet operation make it a seamless addition to any space.
DIY Convenience: The MRCOOL DIY E Star Series empowers you to take control of your home comfort. With straightforward installation and smart technology integration, achieving the perfect climate in your home has never been easier.
Transform your home into a comfortable oasis with the MRCOOL® E Star DIY 3rd Gen 18k BTU Ductless Mini-Split Heat Pump Condenser. Experience the perfect combination of efficiency, convenience, and advanced technology, making it the ideal choice for any homeowner seeking to enhance their living environment. Order yours today and enjoy the benefits of modern home comfort!

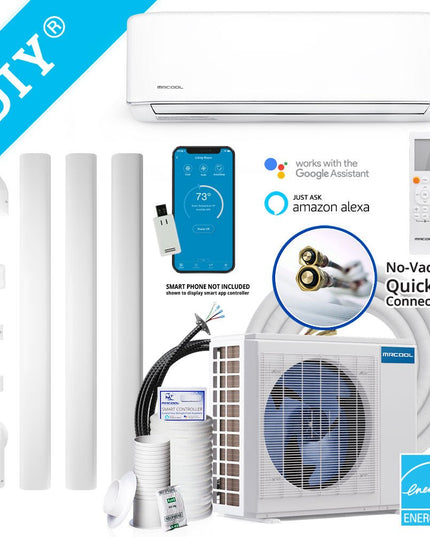

This unit is shipped in two boxes.

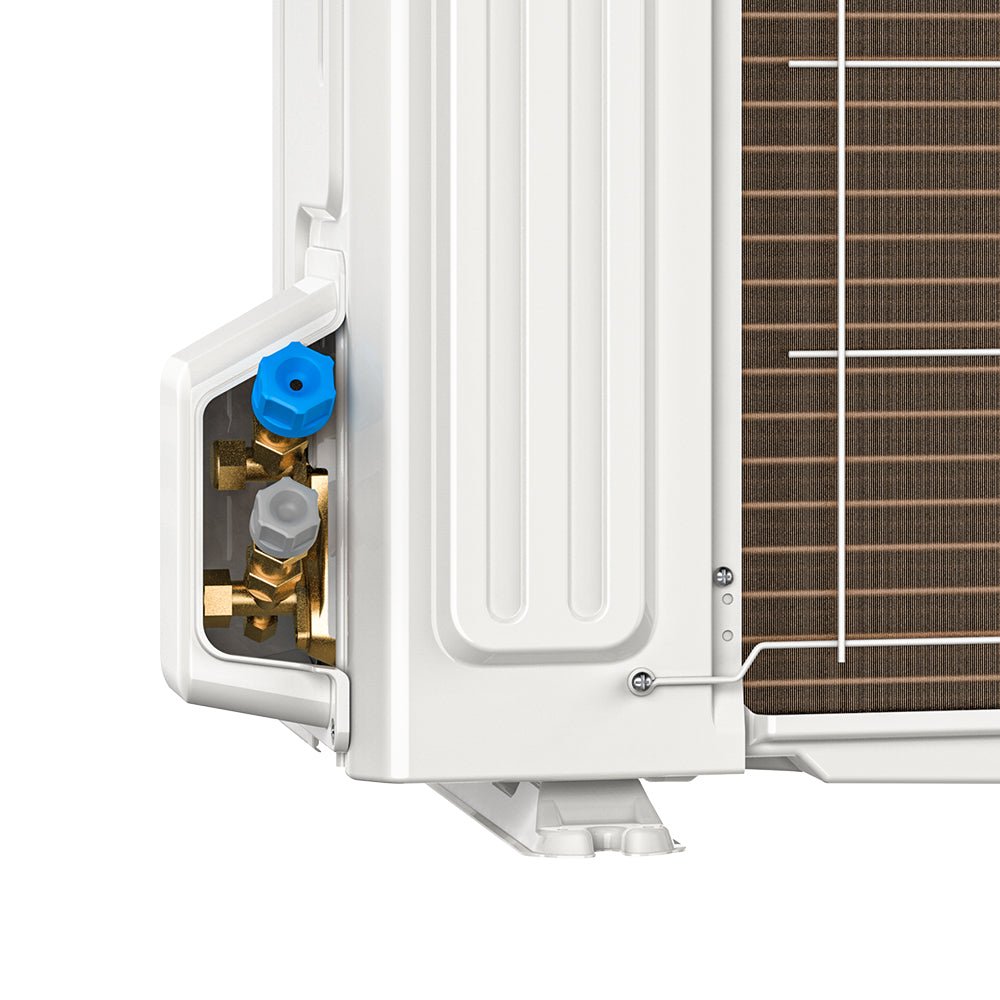

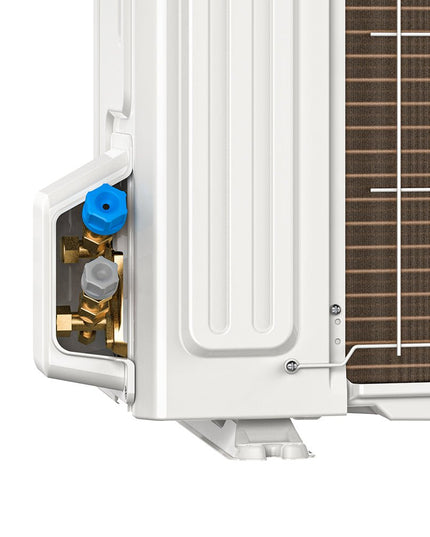

- Our Easy DIY installation: pre-charged quick connect line doesn't require special tools, equipment, or training
- SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Variable-speed DC inverter compressor technology cuts operating costs
- Low ambient cooling: cooling down to 5?F exterior temperatures ? the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
- The unit is 20 SEER and designed to heat and cool a single 750 square foot space
- 7-Year compressor warranty and 5-year parts warranty
- Auto-restart: - power outage? No worries, the MRCOOL DIY E star Series auto-restart has the unit running again immediately

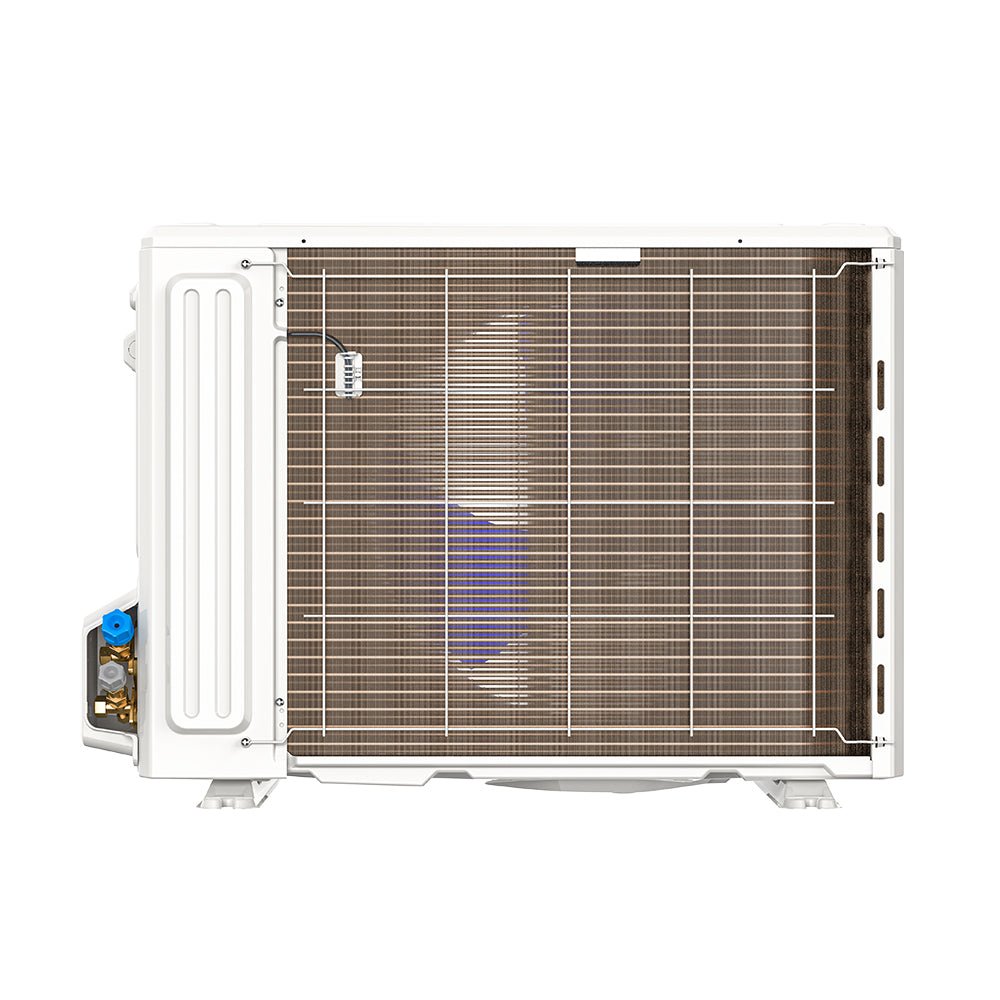

- Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
- Louver position memory remembers so you don't need to - horizontal louver automatically moves to the same position you set the last time the unit was turned on
- Automatic leakage detection technology to alert you should a problem arise
Specs
|
SEER |
20 |
|
EER |
12.5 |
|
HSPF |
10 |
|
TONNAGE |
1.5 |
|
COOLING CAPACITY (BTU) |
18000 |
|
HEATING CAPACITY (BTU) |
18000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
15 |
|
MAX COVERAGE AREA |
750 |
|
REFRIGERANT TYPE |
R-410A |
|
INVERTER |
Yes |
|
MIN AMBIENT HEAT (F) |
5 |
|
LINE SET LENGTH |
16 or 25 |
|
MAX LINESET LENGTH (FT) |
98 |
|
LIQUID LINE FITTING |
3/8 |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE FITTING |
5/8 |
|
SUCTION LINE SIZE |
1/2 |
|
CONTROL TYPE |
LED |
|
CONDENSER FAN MOTOR RPM |
700/750/85 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
No |
|
LOW VOLTAGE COMPENSATION |
No |
|
OVERLOAD PROTECTION |
Yes |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
SLEEP MODE |
No |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL RECOGNIZED |
No |
|
UL LISTED |
No |
|
CSA LISTED |
Yes |
|
CSA CERTIFIED |
Yes |
|
ETL LISTED |
No |
|
ETL CERTIFIED |
No |
|
ENERGY STAR COMPLIANT |
No |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
5-year Parts/7-year Compressor/1-year Remote |
|
REGISTERED PARTS WARRANTY |
5-year |
|
REGISTERED COMPRESSOR WARRANTY |
7-year |
|
REGISTERED REMOTE WARRANTY |
1-year |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
GU, PR, VI |
|
NET DEPTH (IN) |
14.29 |
|
NET HEIGHT (IN) |
27.64 |
|
NET WIDTH (IN) |
33.27 |
|
NET WEIGHT (LBS) |
98.77 |
|
GROSS DEPTH (IN) |
17.32 |
|
GROSS HEIGHT (IN) |
31.50 |
|
GROSS WIDTH (IN) |
38.78 |
|
GROSS WEIGHT (LBS) |
122 |
|
FREIGHT CLASS |
250 |
